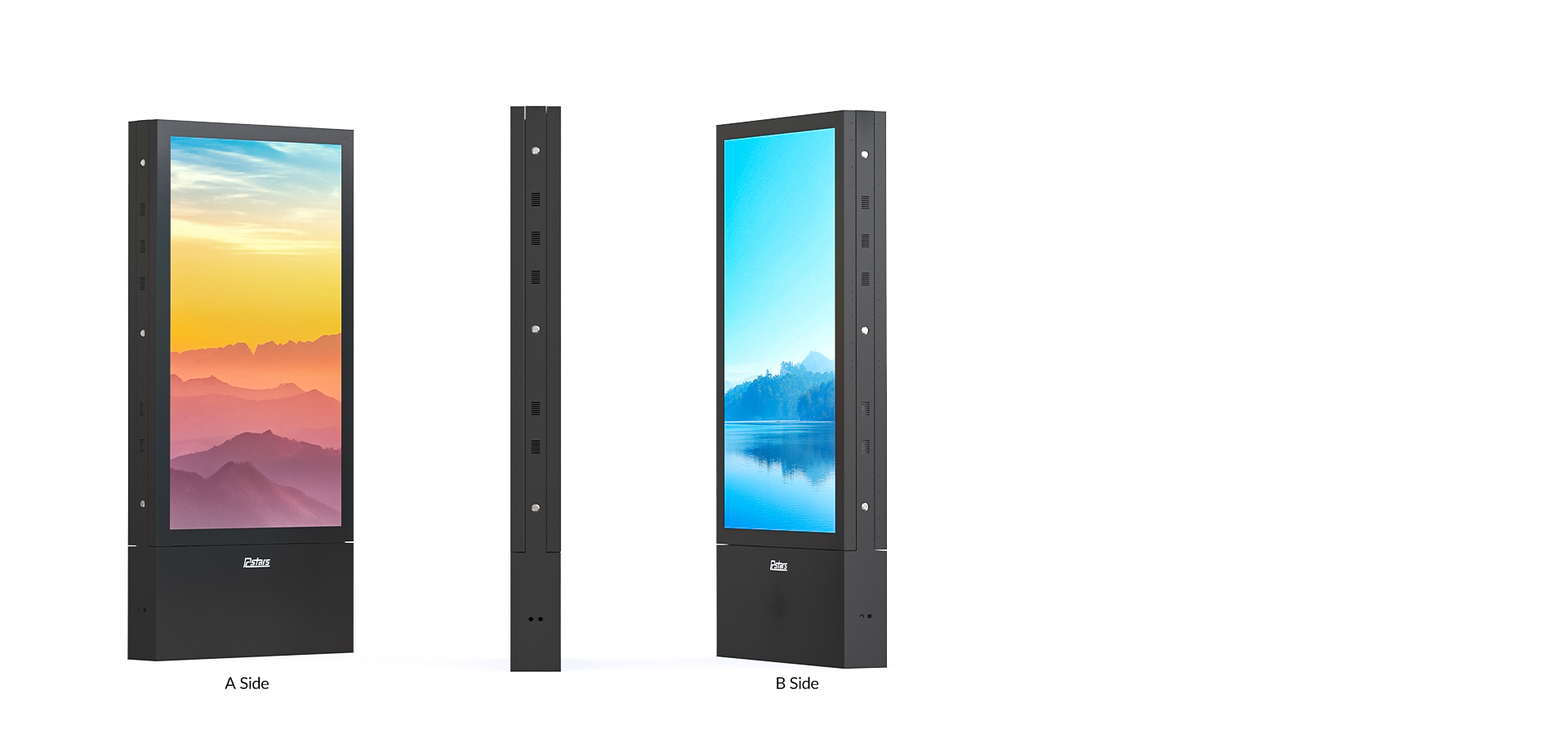

Product size is complete, screen 21.5 inch - 75 inch for your free choice, also can choose double-sided; capacitive touch / infrared touch optional, 500-4000 nits brightness optional; metal body, tempered glass absolutely protects the screen, the device is strong and durable; vertical installation, indoor use; camera can be added as an accessory, want more product features? Contact us for more detailed OEM/ODM solutions.
Optional Panel Size:
21.5 inch- 75 inch
Model No | RCS-220LW | RCS-240LW | RCS-270LW | RCS-320LW | RCS-430LW | RCS-490LW | RCS-550LW | RCS-650LW | RCS-750LW |
Panel Model | 21.5 inch TFT LED | 23.8 inch TFT LED | 27 inch TFT LED | 32-inch TFT LED | 43 inch TFT LED | 49 inch TFT LED | 55 inch TFT LED | 65 inch TFT LED | 75 inch TFT LED |
Max Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920x1080 | 1920×1080 | 3840×2160 | 3840×2160 |
Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Pixel Pitch | 0.24795×0.24795 | 0.2745×0.2745 | 0.31125x0.31125 | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.63×0.63 | 0.372×0.372 | 0.429×0.429 |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1400:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 | 1200:1 |
Brightness (cd/m²) | 500 | 500 | 500 | 50 | 500 | 500 | 500 | 500 | 500 |
Display Area (mm) | 476.064×267.786 | 527.04×296.46 | 597.888×336.312 | 698.4×392.85 | 941.184×529.41 | 1073.78×604 | 1209.6×680.4 | 1428.48×803.52 | 1649.66×927.936 |
Panel Size (mm) | 495.6x292.2×10.7 | 543×317.4×11.6 | 630×368.2×11.8 | 725.2×422.7×22.4 | 969×563.9×26 | 109.5×62.9×29.6 | 1244.6×720.9 | 1459.2×830×16 | 1675.2×953.6×11.9 |
