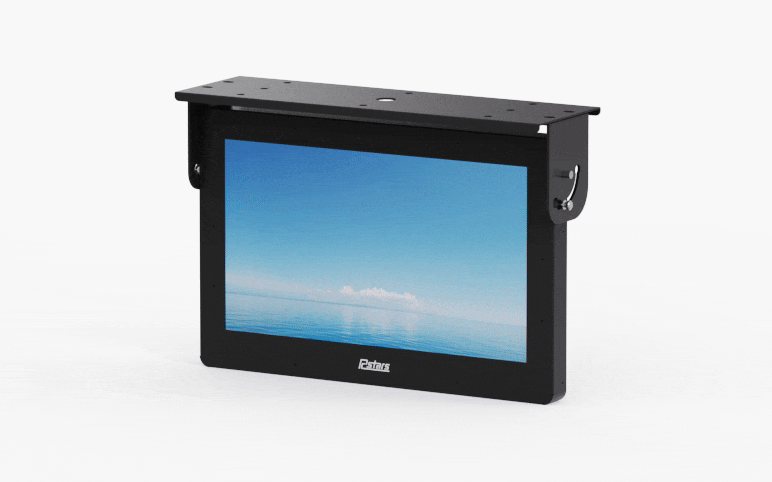

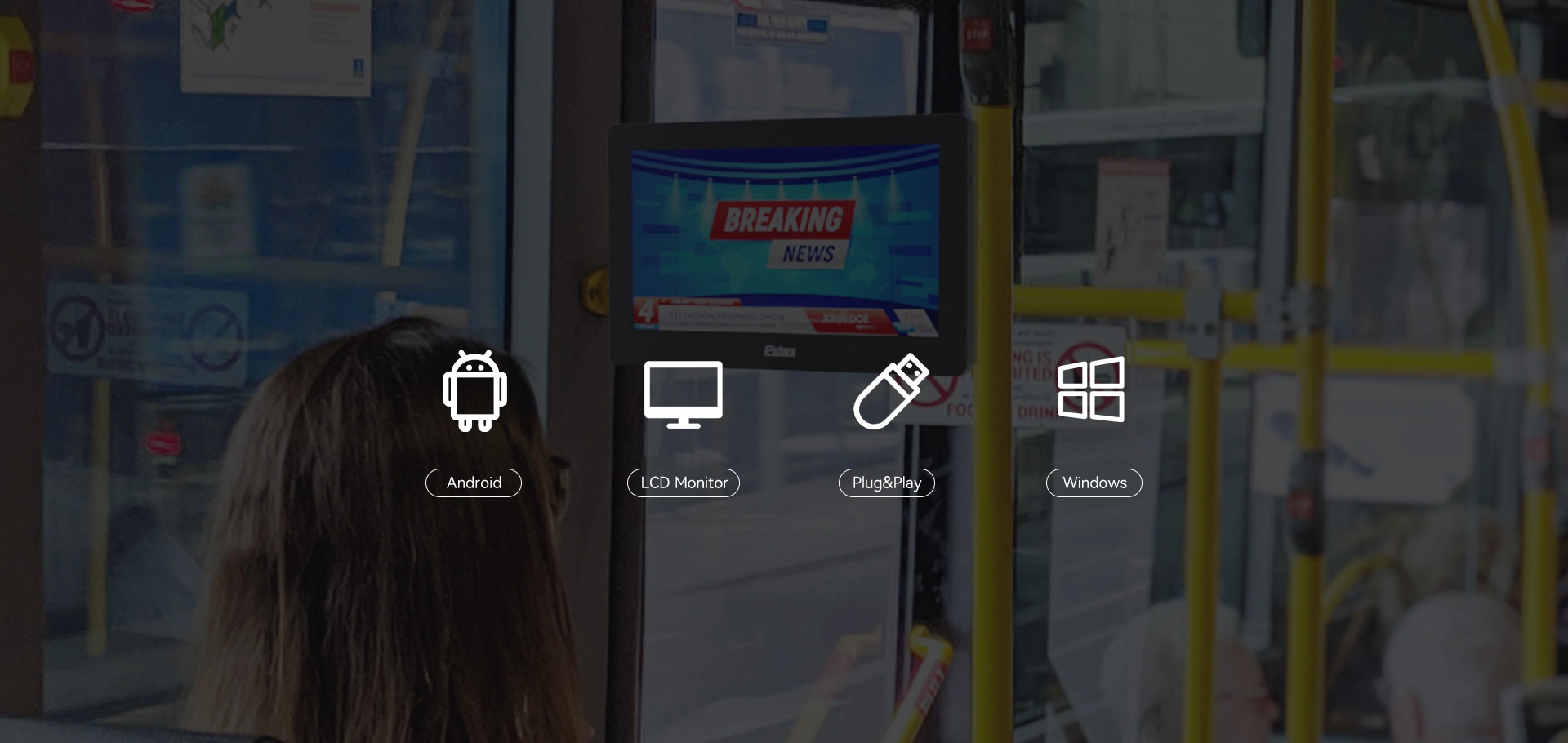

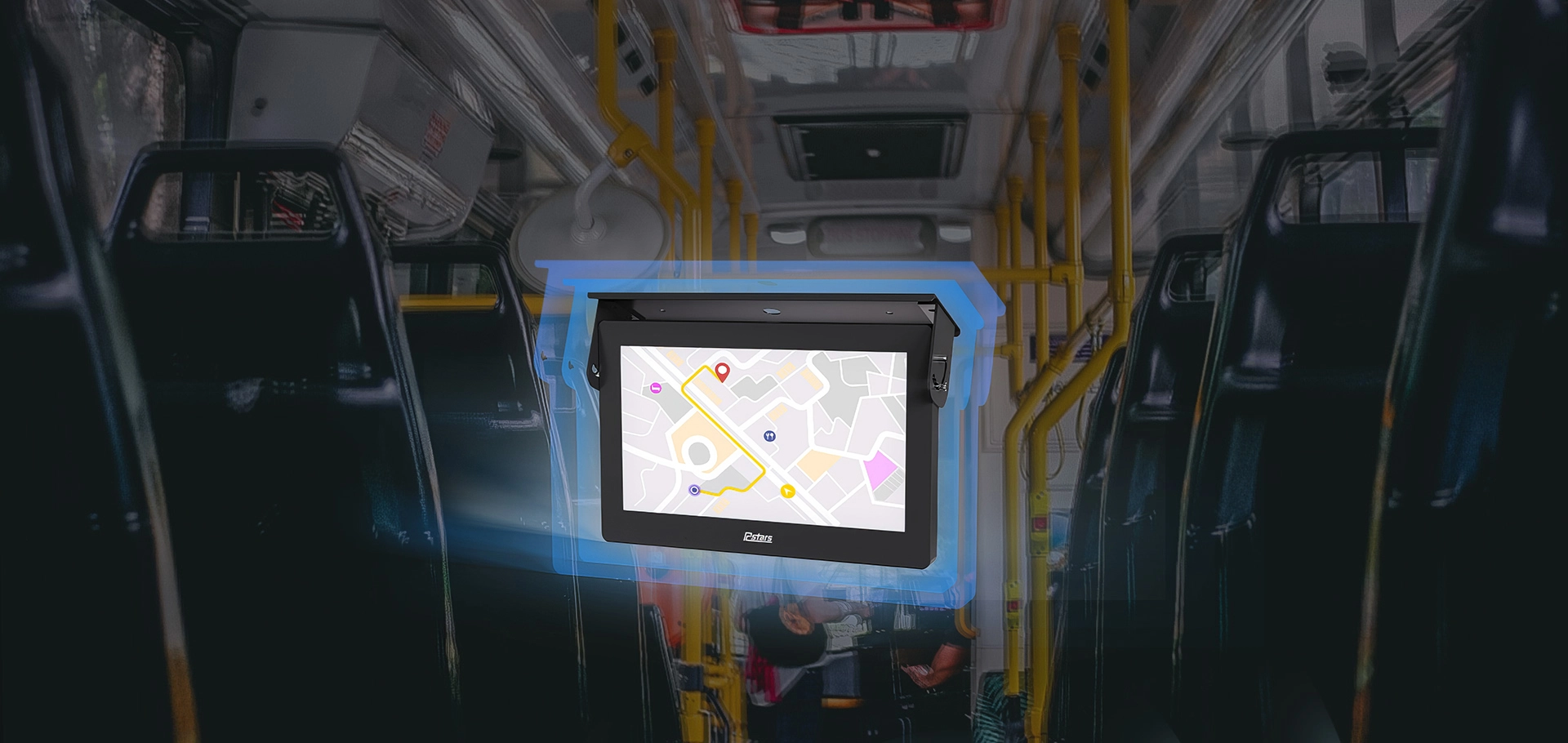

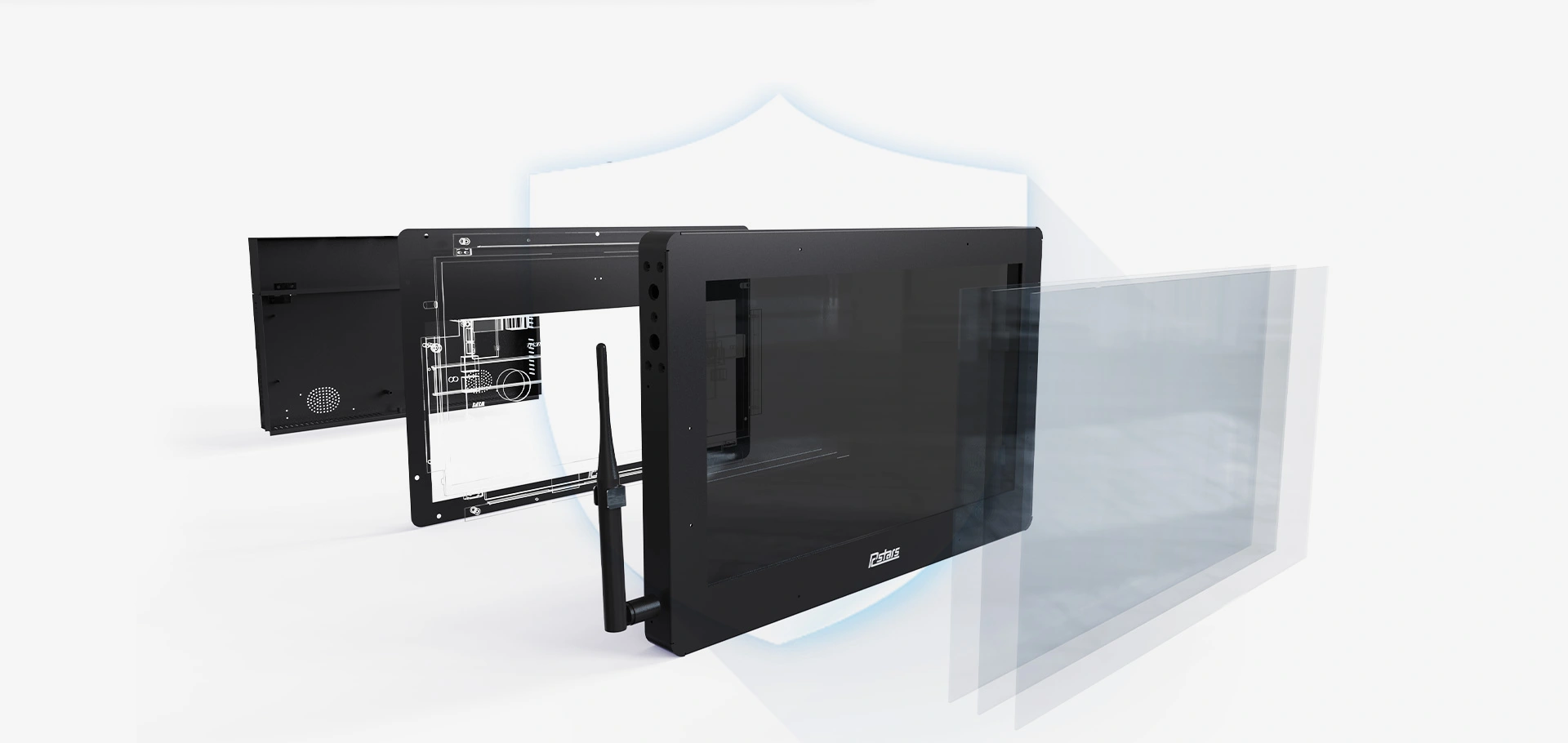

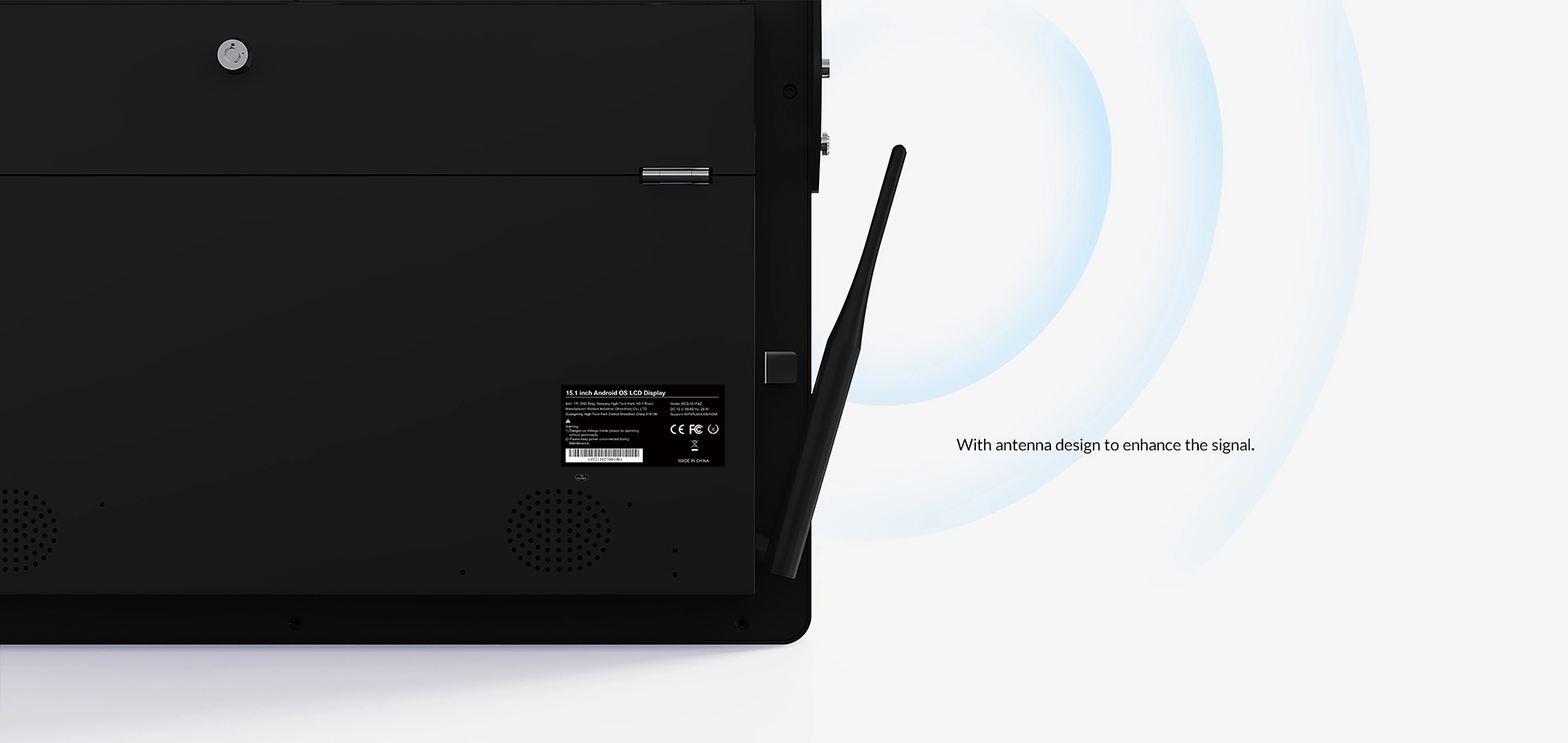

This bus digital signage is designed for buses, planes, trains and other transportation. With built-in shock absorption cushion, it can resist bumps during driving; with antenna, it can enhance the signal; with built-in GPS system, it can be used for navigation; it supports connecting Wi-Fi, Bluetooth, 4G, combined with optional systems such as Android media player to update the content quickly.
Optional Panel Size:
15.6 inch, 19 inch, 21.5 inch, 32 inch, 43 inch
Model No | RCS-156F | RCS-190F | RCS-220F | RCS-320F | RCS-430F |
Panel Model | 15.6 inch TFT LED | 19 inch TFT LED | 21.5 inch TFT LED | 32 inch TFT LED | 43 inch TFT LED |
Max Resolution | 1920×1080 | 1440×900 | 1920×1080 | 1920×1080 | 1920×1080 |
Aspect Ratio | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 |
Pixel Pitch | 0.17925×0.17925 | 0.294×0.294 | 0.24795×0.24795 | 0.36375×0.36375 | 0.4903×0.4903 |
Viewing Angle | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Contrast Ratio | 800:1 | 1000:1 | 1000:1 | 1400:1 | 1200:1 |
Brightness (cd/m²) | 250 | 500 | 500 | 500 | 500 |
Display Area (mm) | 344.16×193.59 | 408.24×255.15 | 476.064×267.786 | 698.4×392.85 | 941.184×529.416 |
Panel Size (mm) | 359.5×223.8×x3.2 | 428×278×11 | 495.6×292.2×10.7 | 725.2×422.7×22.4 | 969×563.9×26 |
