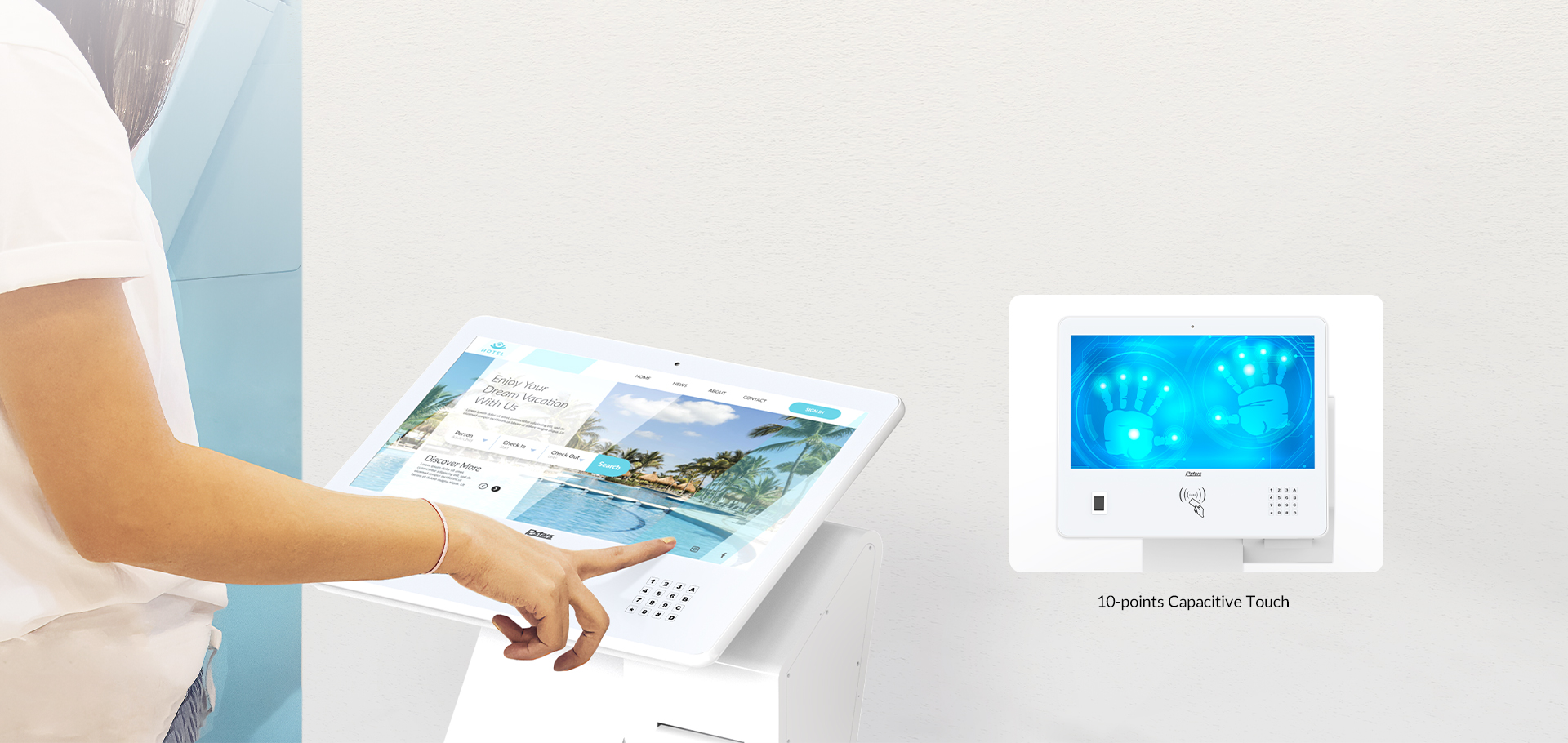

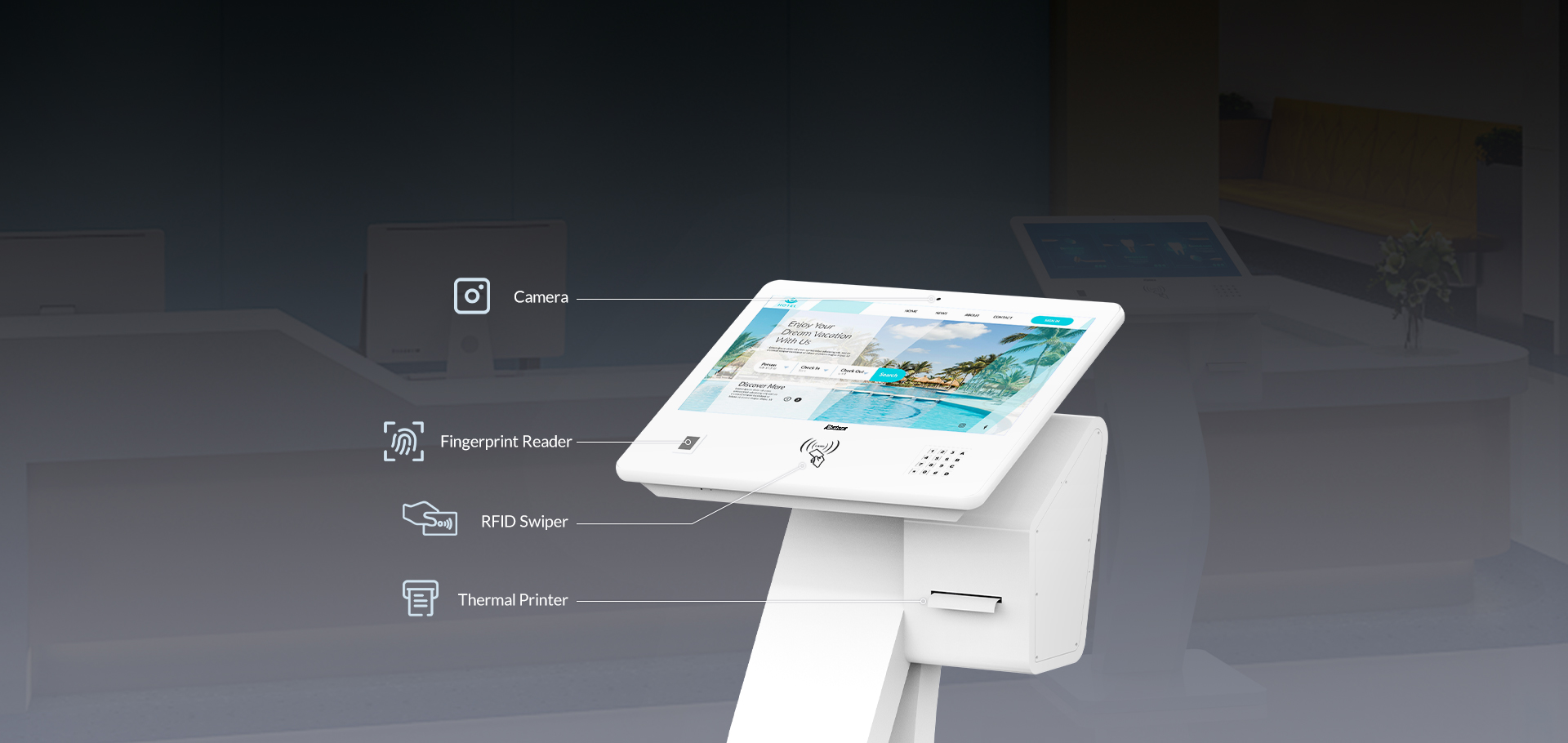

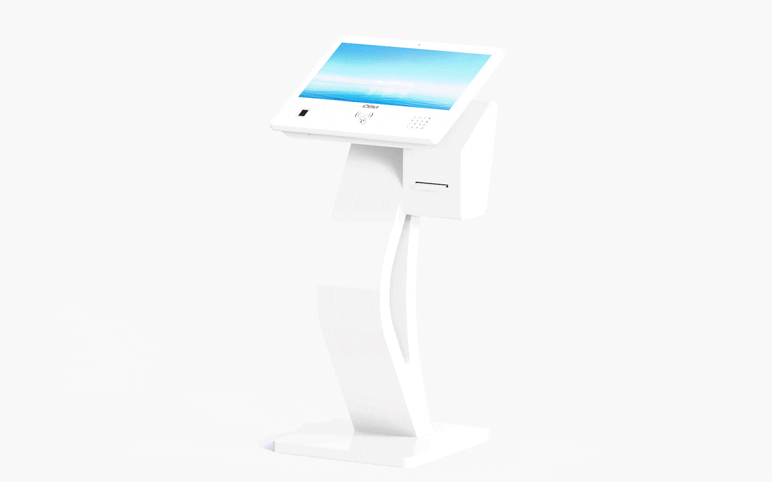

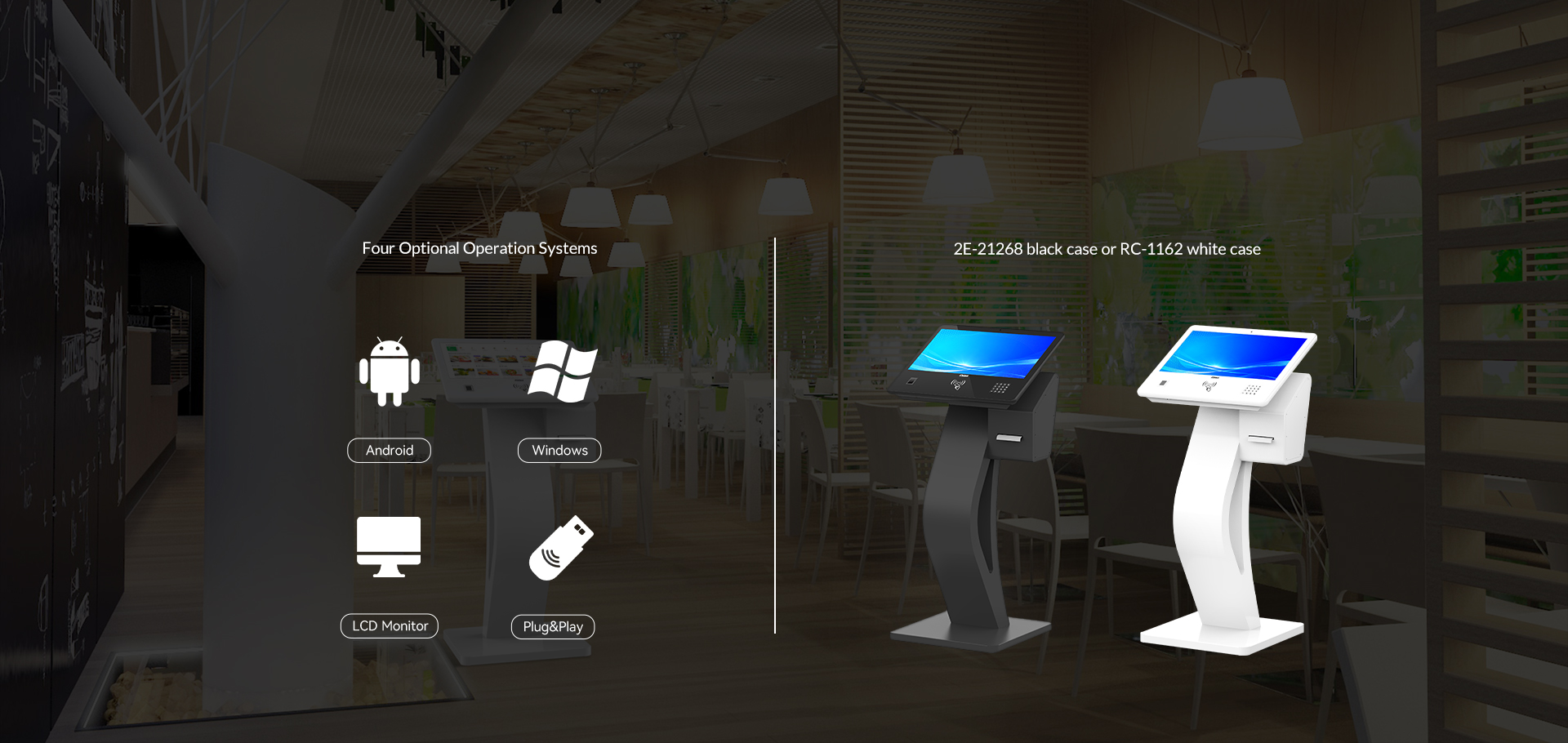

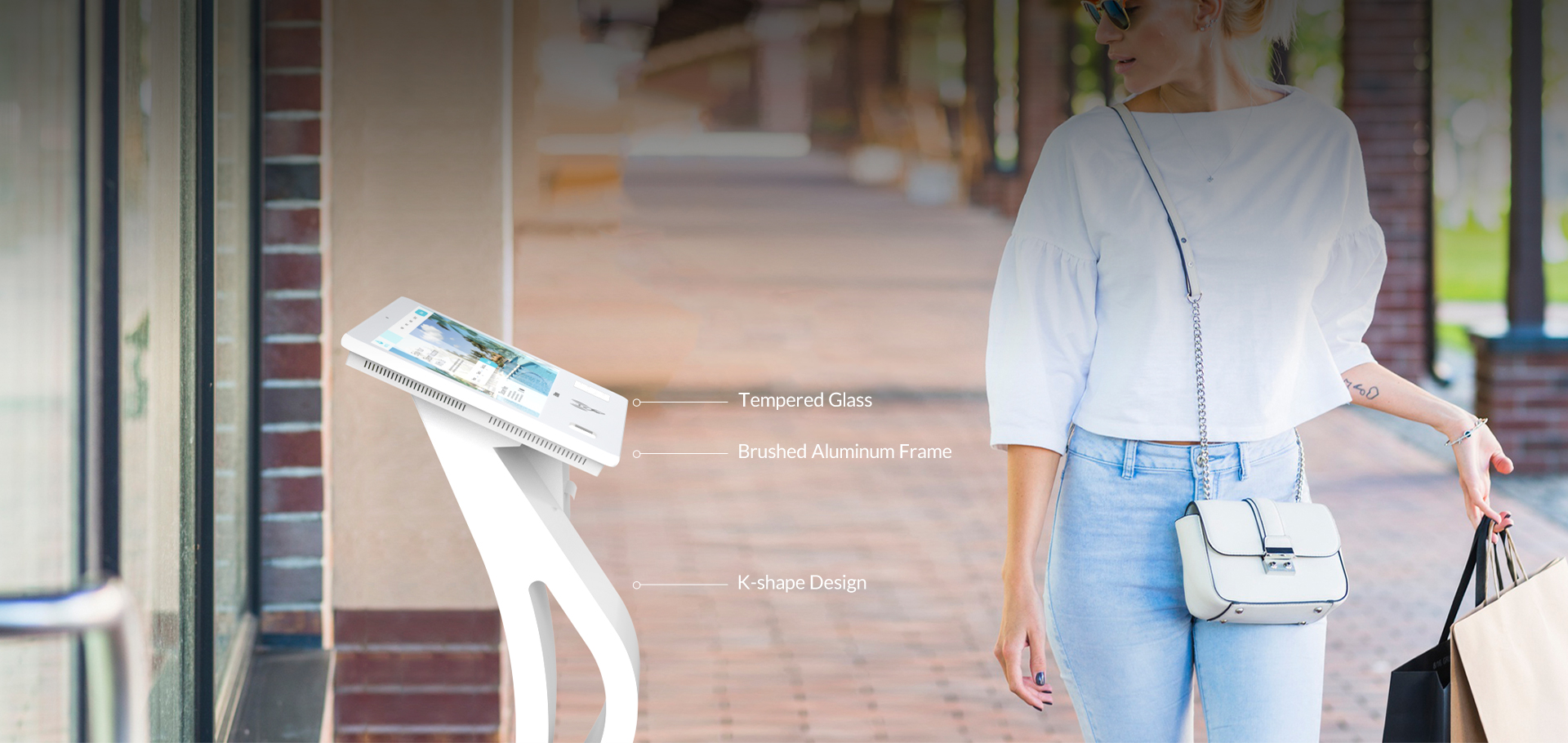

Unique "K" shaped design stand, ultra-thin case surrounded by silver aluminum frame, made of strong and durable metal material, surface sprayed with RC-1162 white using advanced modern technology, elegant and exquisite; capacitive interactive screen, equipped with thermal printer, fingerprint reader, RFID card reader, numeric keyboard and camera can provide customers with various services such as self-ordering, self-checkout, self-enquiry and business processing.
Optional Panel Size:
21.5 inch, 23.8 inch, 27 inch, 32 inch, 43 inch
Model No | RCS-220JK | RCS-240JK | RCS-270JK | RCS-320JK | RCS-430JK |
Panel Model | 21.5 inch TFT LED | 23.8 inch TFT LED | 27 inch TFT LED | 32 inch TFT LED | 43 inch TFT LED |
Max Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
Aspect Ratio | 16:09 | 16:9 | 16:09 | 16:09 | 16:09 |
Pixel Pitch | 0.24795×0.24795 | 0.2745×0.2745 | 0.31125×0.31125 | 0.36375×0.36375 | 0.4903×0.4903 |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1400:1 | 1200:1 |
Brightness (cd/m²) | 500 | 500 | 500 | 500 | 500 |
Display Area (mm) | 476.064×267.786 | 527.04×296.46 | 597.888×336.312 | 698.4×392.85 | 941.184×529.416 |
Panel Size (mm) | 495.6×292.2×10.7 | 543×317.4×11.6 | 630×368.2×11.8 | 725.2×422.7×22.4 | 969×563.9×26 |
