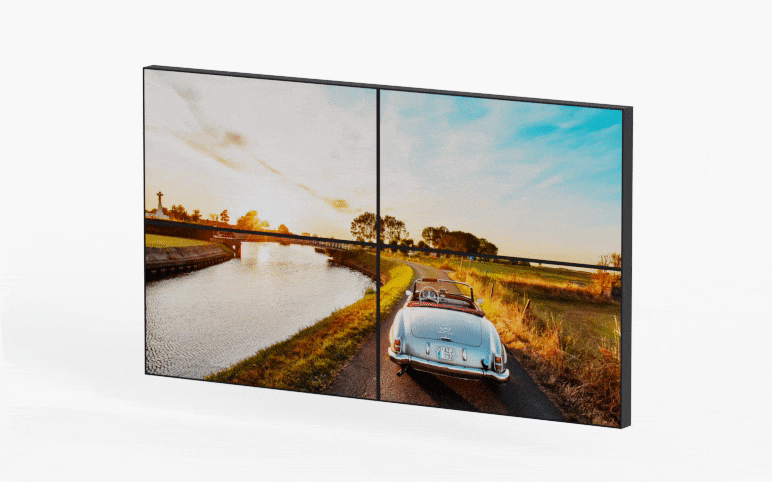

49 inch Super Slim LCD Video Wall

Name: 49 inch Super Slim LCD Video Digital Display Wall
Brand: Rcstars Industrial (Shenzhen) Co., LTD.

Rcstars LCD video wall solutions offer an all-in-one, easy to configure solution ideal for dynamic digital signage, information display and command and control applications. Our video wall panels make your digital signage easy to implement, configure and operate. 97% chroma, 1.8 mm to 3.5 mm very narrow spacing, 178°ultra-wide viewing angle, 3000:1 ultra-high contrast ratio, 500/700 nits selectable brightness, and more features to customize.

Optional Panel Size:

46 inch, 49 inch, 55 inch

GET A QUOTE

Features Specifications Optional

Features of 49 inch Slim Pitch LCD Video Wall

Create Your Dynamic Video Walls

Create a visual spectacle in any space by stitching multiple screens together to create an impressive video wall.

Super Narrow Bezel

Featuring an extremely narrow bezel width of 3.5 mm, provide a near seamless image for public venues and control rooms.

Auto Color Calibration

An on-screen calibration sensor automatically adjusts color and brightness to ensure that all individual display panels match closely.

Wide Viewing Angle

178°ultra-wide viewing angle, no matter what viewing position they are in, they can be captivated by the realistic color images.

Comprehensive Set Of Inputs

Rcstars's LCD video walls come with a full array of connectivity and control options including DVI, HDMI, VGA and RJ45, RS232 AV OUT and AV IN.

CMS Software Control

Centrally manage your network of displays from one place. Easily identify and fine-tune all display settings, including brightness, contrast, saturation and sharpness.

Specifications of 49 inch Super Slim LCD Video Wall

Model No	RCS-460W	RCS-490W	RCS-550W	RCS-550W
Panel Model	46 inch TFT LED	49 inch TFT LED	55 inch TFT LED	55 inch TFT LED
Aspect Ratio	16:9	16:9	16:9	16:9
Max Resolution	1920×1080	1920×1080	1920×1080	1920×1080
Display Color (M)	16.7	16.7	16.7	16.7
Brightness (cd/m²)	500/700	500/700	500/700	500/700
Seam (mm)	≤3.5	≤1.8/≤3.5	≤1.8≤3.5	≤1.7
Contrast	3000:1	3000:1	3000:1	3000:1
Visual Angle	178/178°	178/178°	178/178°	178/178°
Dimension (mm)	1024×122×579	1077.58×109.5×607.8	1211.4×111.7×682.2	1211.54×682.34×125.3

Optional Functions of 49 inch Slim Pitch LCD Video Wall

Installation Optional

landscape or Portrait - Unlimited Number
