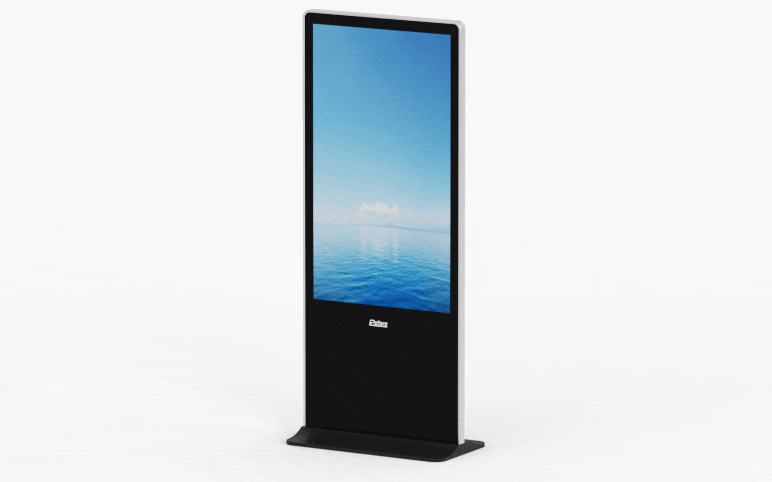

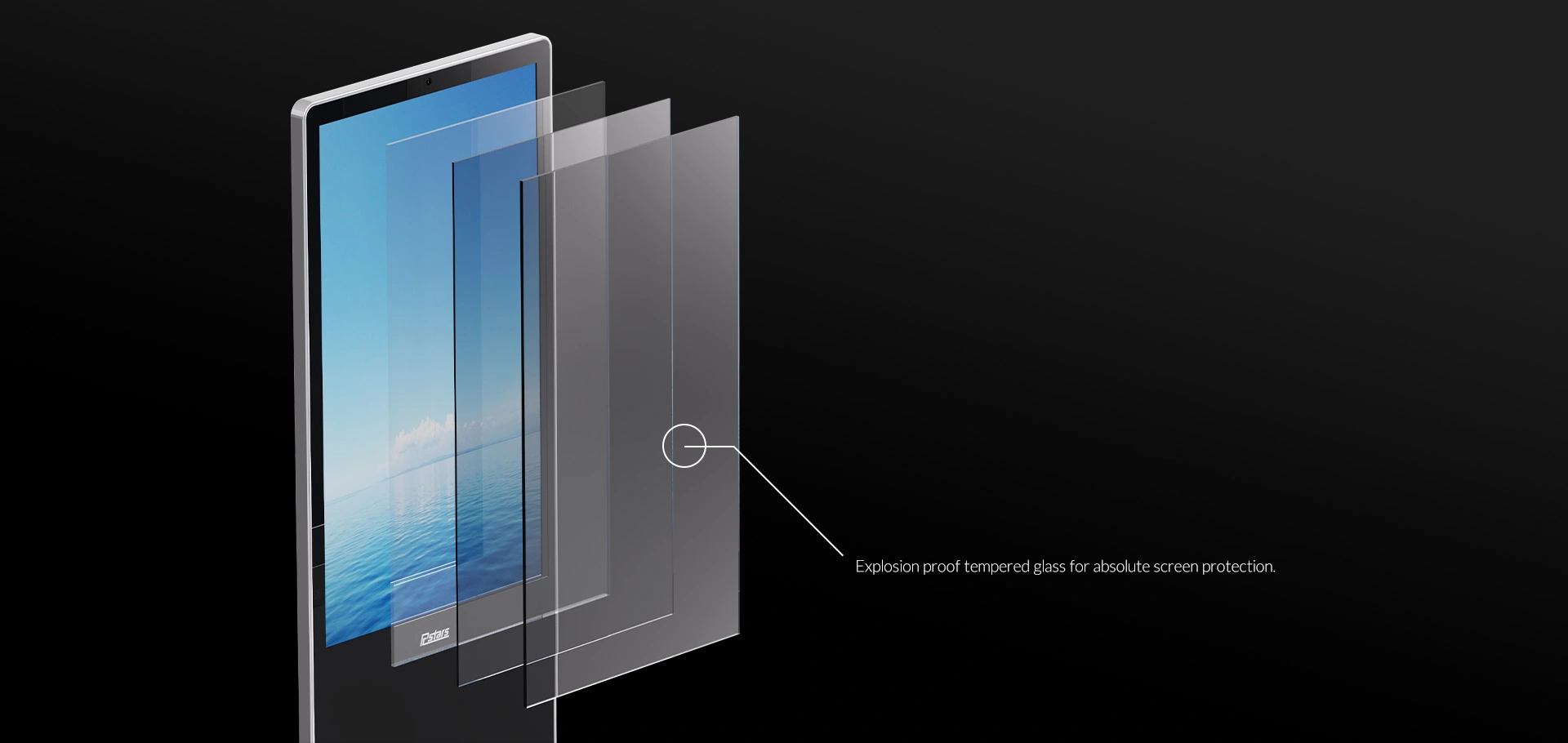

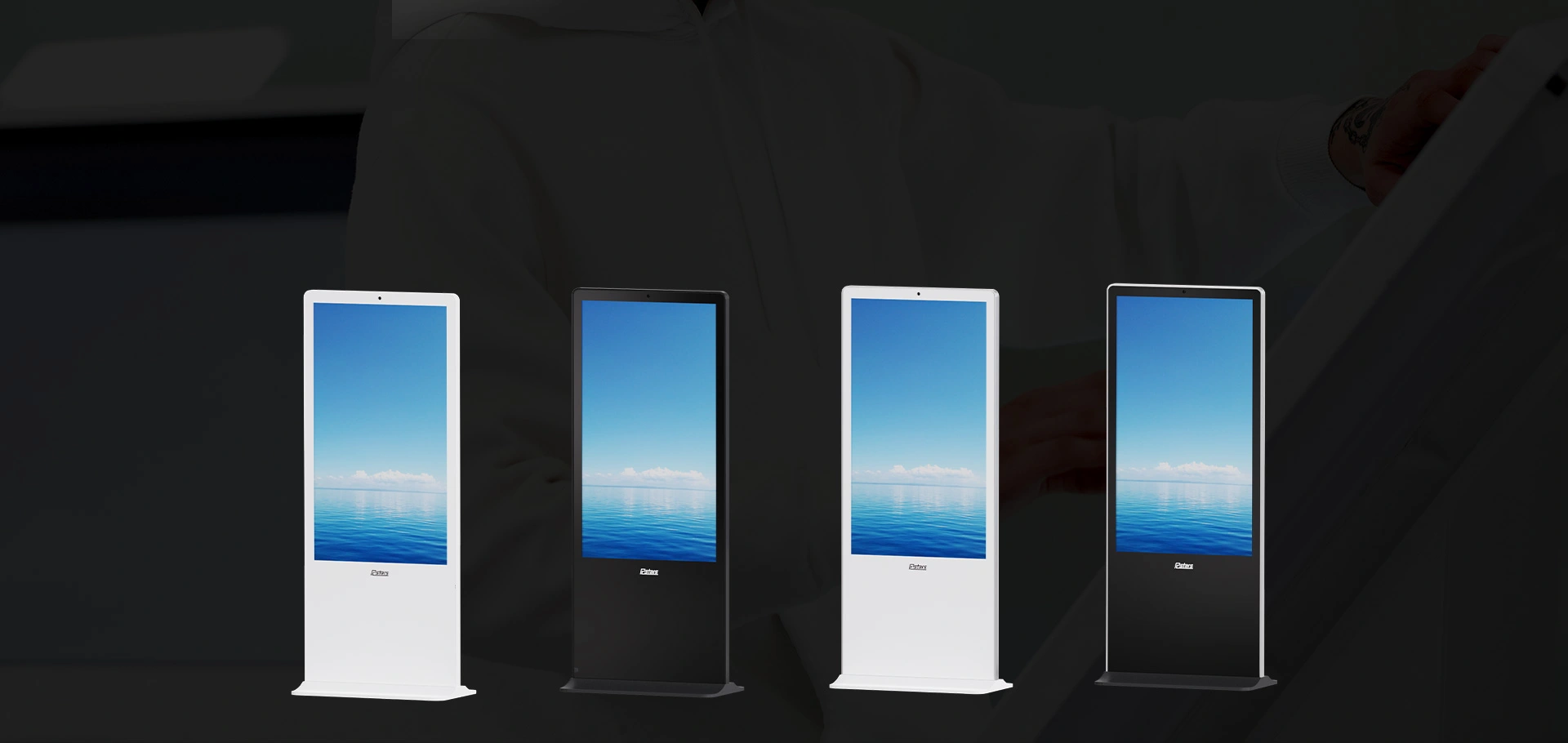

Rcstars's LB freestanding digital signage with built-in Wi-Fi has the new high-grade industrial quality and can be with a designed logo. By touching the screens, you can see the information you need and order the things you need in the shop. This standing digital information display covered with explosion-proof glass, durable. Machine color matte black, high-gloss white optional, other colors can be customized.
Optional Panel Size:
21.5 inch-75inch
Model No | RCS-220LB | RCS-240LB | RCS-270LB | RCS-320LB | RCS-430LB | RCS-490LB | RCS-550LB | RCS-650LB | RCS-750LB | |
Panle Model | 21.5 inch TFT LED | 23.8 inch TFT LED | 27 inch TFT LED | 32 inch TFT LED | 43 inch TFT LED | 49 inch TFT LED | 55 inch TFT LED | 65 inch TFT LED | 75 inch TFT LED | |
Max Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | |
Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
Pixel Pitch | 0.24795×0.24795 | 0.2745×0.2745 | 0.31125×0.31125 | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.63×0.63 | 0.372×0.372 | 0.429×0.429 | |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1400:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 | 1200:1 | |
Brightness (cd/m²) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Display Area (mm) | 476.064×267.786 | 527.04×296.46 | 597.888×336.312 | 698.4×392.85 | 941.184×529.416 | 1073.78×604 | 1209.6×680.4 | 1428.48×803.52 | 1649.66×927.936 | |
Panel Size (mm) | 495.6×292.2×10.7 | 543×317.4×11.6 | 630×368.2×11.8 | 725.2×422.7×22.4 | 969×563.9×26 | 109.5×62.9×29.6 | 1244.6×720.9×27 | 1459.2×830×16 | 1675.2×953.6×11.9 |
