· RCS-550ODLM

55 inch Outdoor Digital Menu Boards

This outdoor double-sided digital advertising display merges high-definition visuals, top-notch safety features, and superior weather resistance, making it perfect for boosting outdoor ad impact and customer satisfaction in the food service sector. Boasting a brightness of 2000-3500 nits and large dual screens, it guarantees digital menus and food images stay crisp in direct sunlight, drawing eyes from every angle. Equipped with laminated explosion-proof glass and IP65-rated protection, this restaurant menu display offers enhanced impact resistance and safety, all while weathering harsh conditions to ensure device stability and longevity.

Optional Panel Size: 55 inch

Scroll

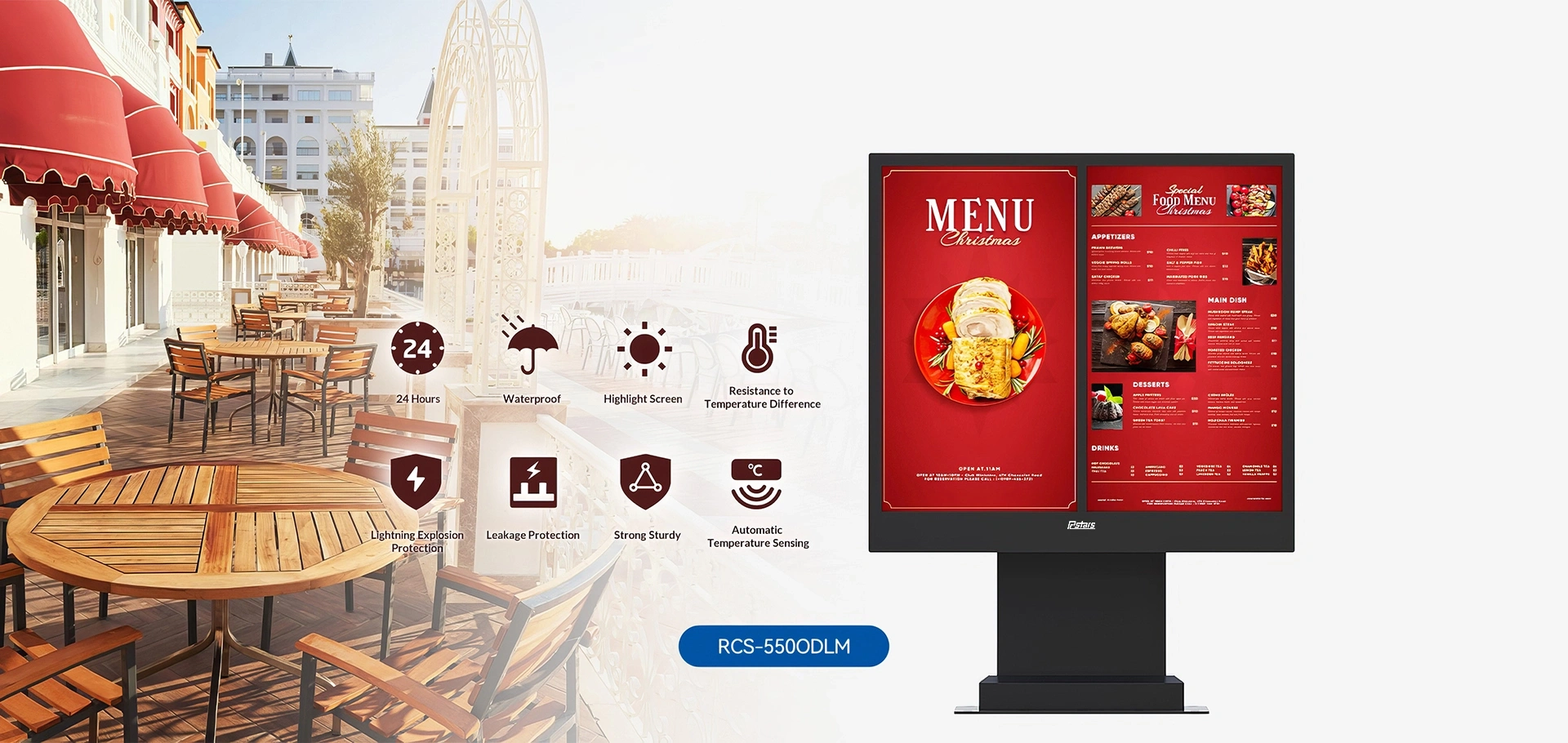

Details on Display

24/7 Continuous Operation

Designed for nonstop performance, ensuring stable advertising playback and system reliability all day and night.

IP65 Waterproof Protection

Sealed enclosure effectively prevents water ingress, suitable for outdoor rain and harsh weather conditions.

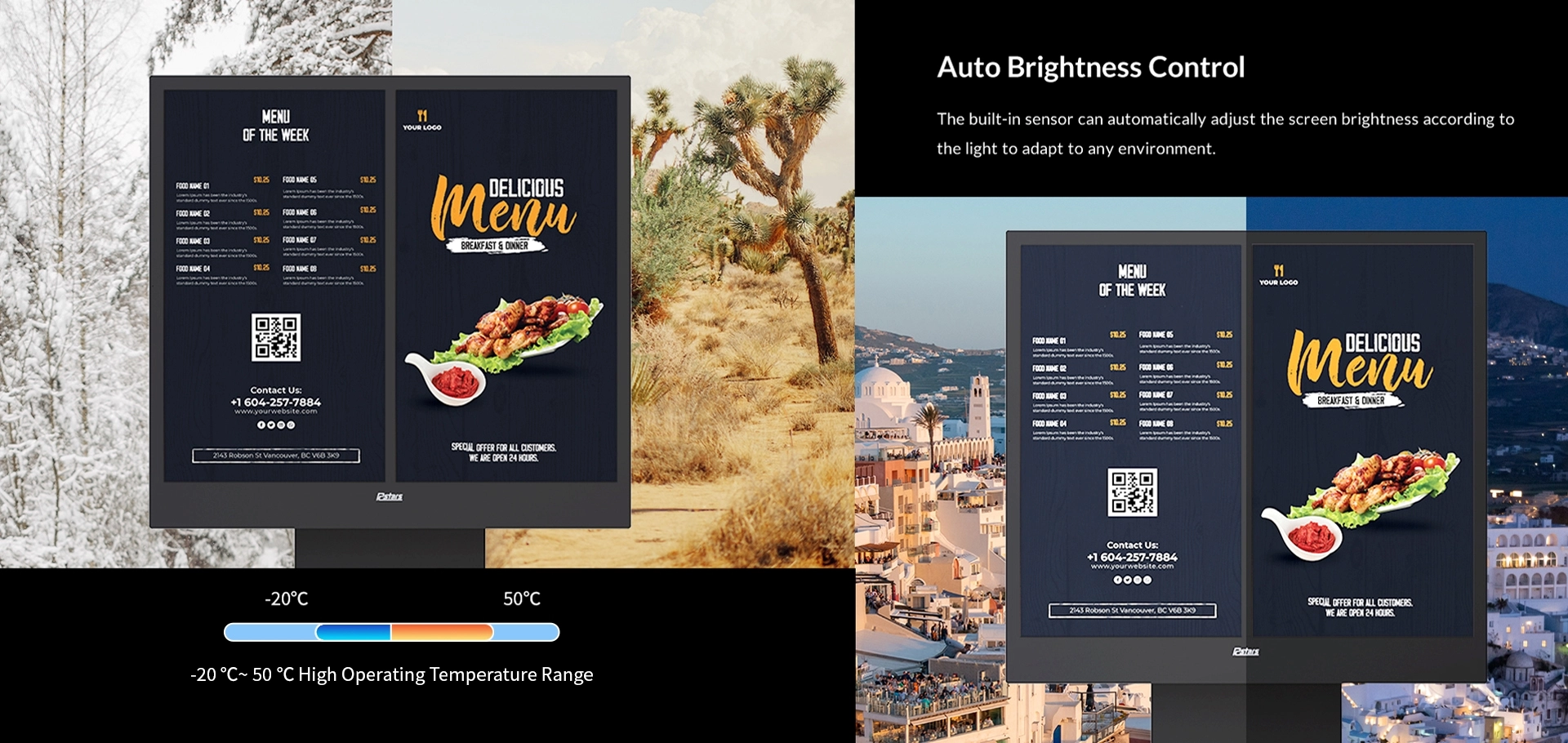

Wide Temperature Adaptation


Reliable operation across extreme cold and hot environments  (-20°C to 50°C) without performance degradation.


Automatic Thermal Regulation

Intelligent temperature sensing system adjusts internal cooling to maintain optimal working conditions.

Leakage Current Protection

Advanced electrical safety design prevents leakage risks, ensuring safe public usage.

Lightning & Surge Protection System

Built-in protection safeguards the device from lightning strikes and sudden power surges.

Brightness · · Anti-Reflective

Readable anytime.
Visible under strong sunlight.

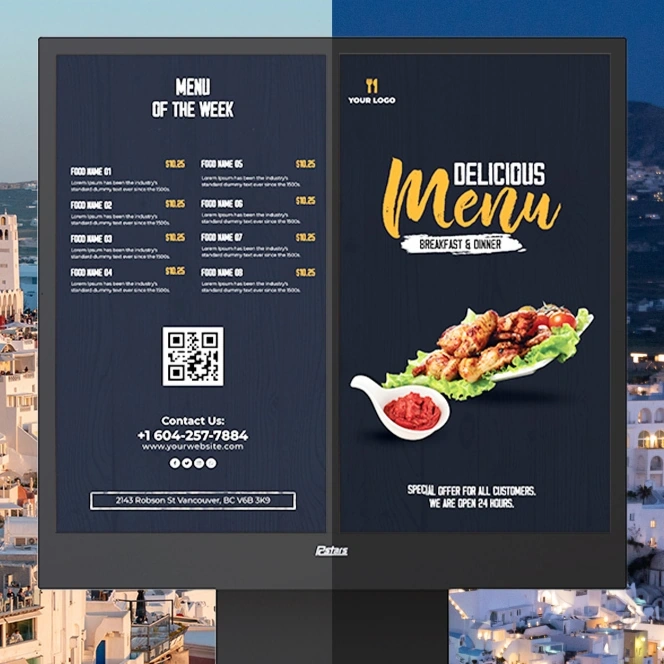

2500–3500 nits high brightness combined with anti-reflective technology delivers clear and vivid visuals in bright indoor and outdoor-facing environments.

2500–3500 nits
Auto-adjusting high brightness visibility
ODLM_Details_05 (1)
Auto Light Sensor

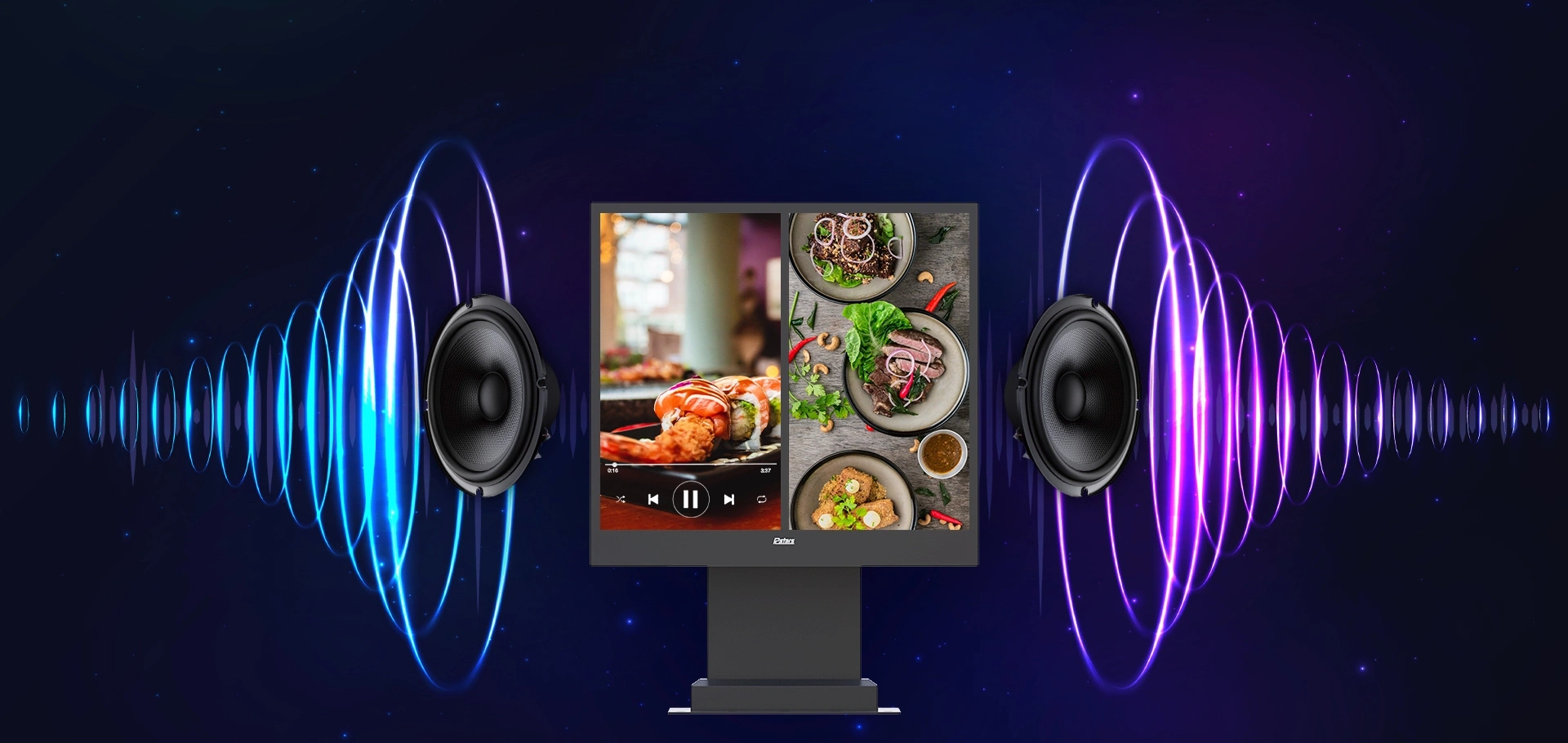

Sound · Engagement · Attraction

Audio included.
Create a more immersive experience.

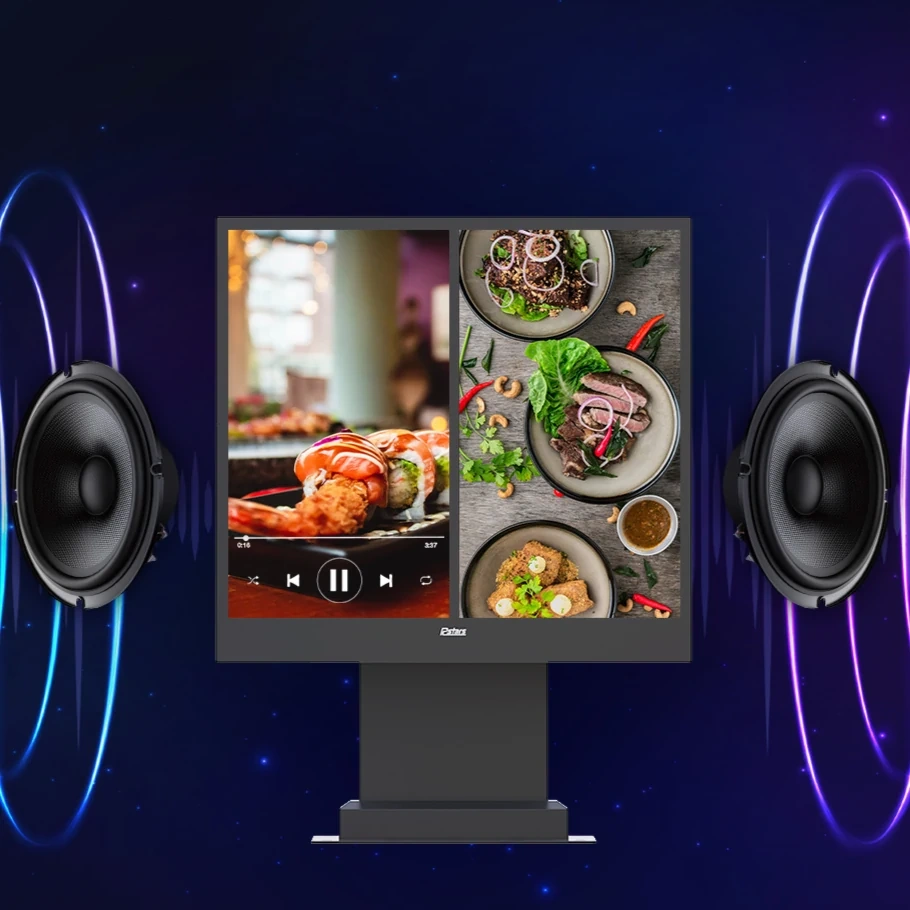

Built-in 2 × 10 W speakers provide synchronized audio playback, enhancing customer engagement with both visual and sound attraction.

2 × 10 W
Integrated stereo speakers

ODLM_Details_06
2 speakers
ODLM_Details_02

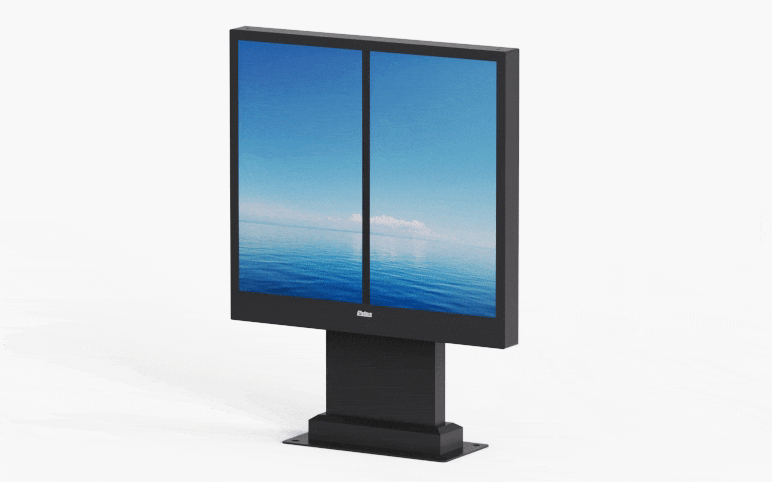

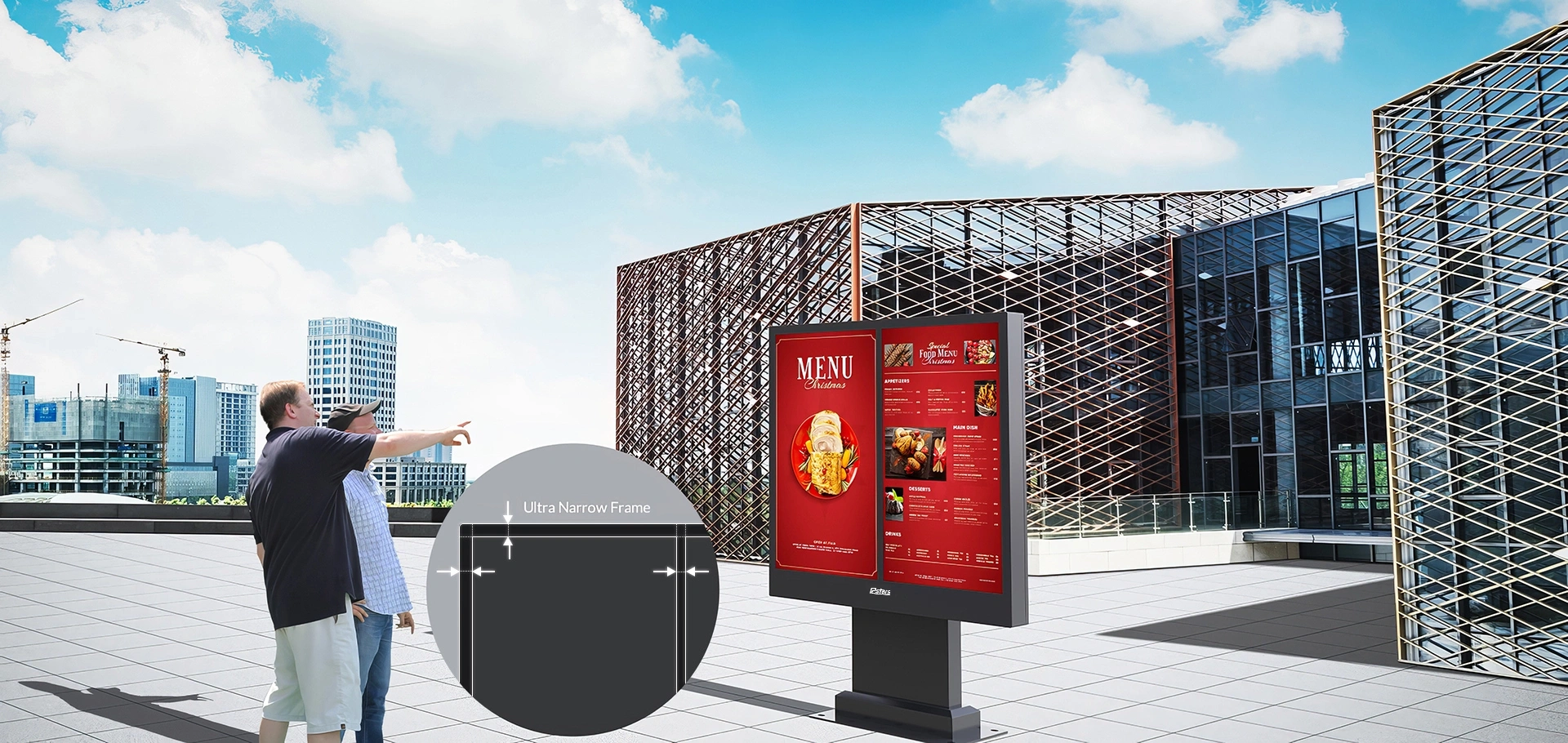

Double-Sided
Symmetrical Design



Ultra-narrow bezels on both sides create a balanced visual appearance and expand the display area, delivering stronger visibility and attracting attention from a distance.

ODLM_Details_04

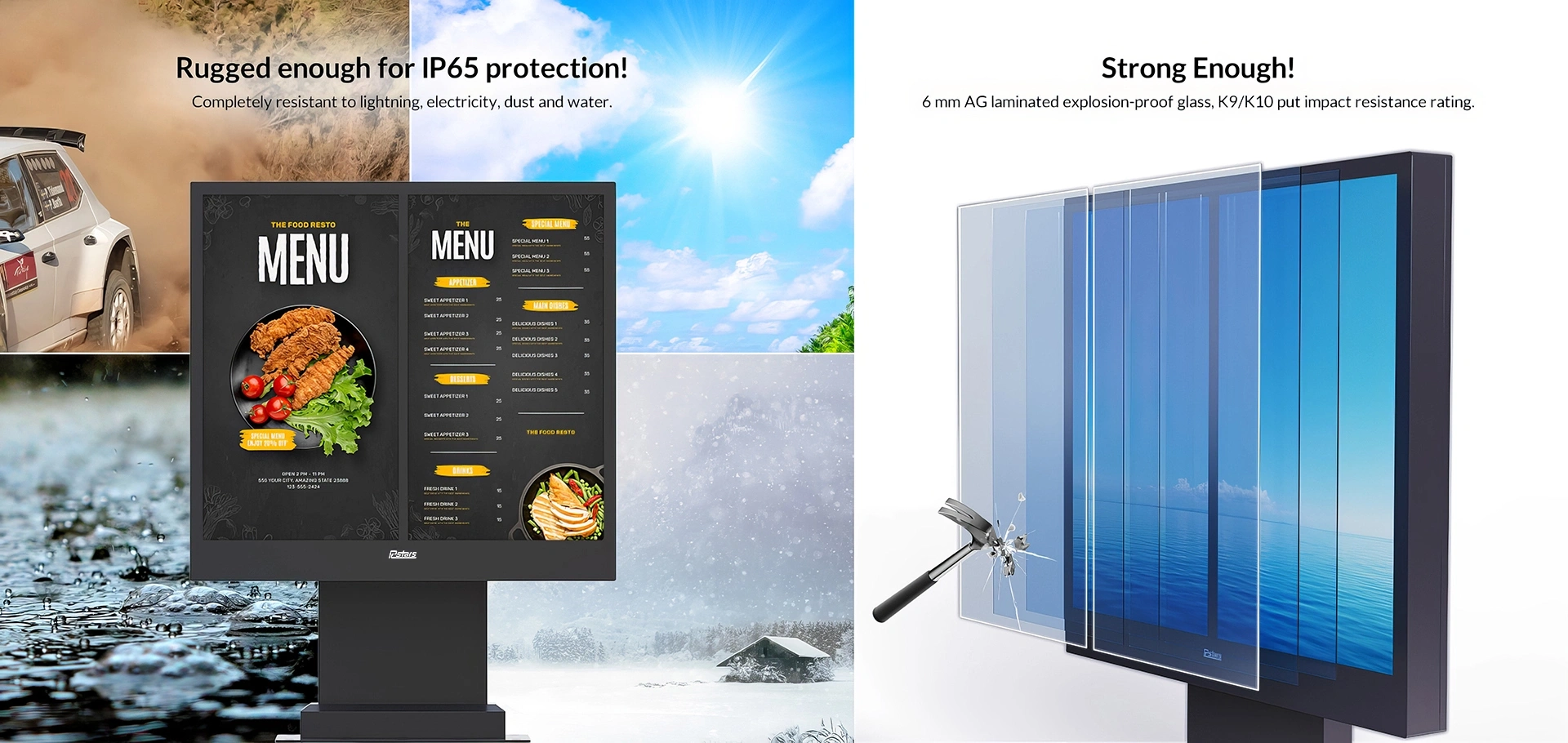

Durable · Protection

IP65 Protection.
6 mm Glass Protection.

Designed with IP65-rated protection against water, dust, moisture, and electrical interference. Equipped with 6 mm AG laminated explosion-proof glass and K9/K10 impact resistance for enhanced durability and reliable outdoor operation.

Technical Data

Full Specification

Model No RCS-550ODLM
Panel Model 55 inch TFT LED
Max Resolution 1920×1080
Aspect Ratio 16:9
Pixel Pitch 0.63×0.63
Viewing Angle 89/89/89/89
Contrast Ratio 1400:1
Brightness (cd/m²) 2000-3500
Display Area (mm) 1209.6×680.4
Panel Size (mm) 1244.6×720.9×27
