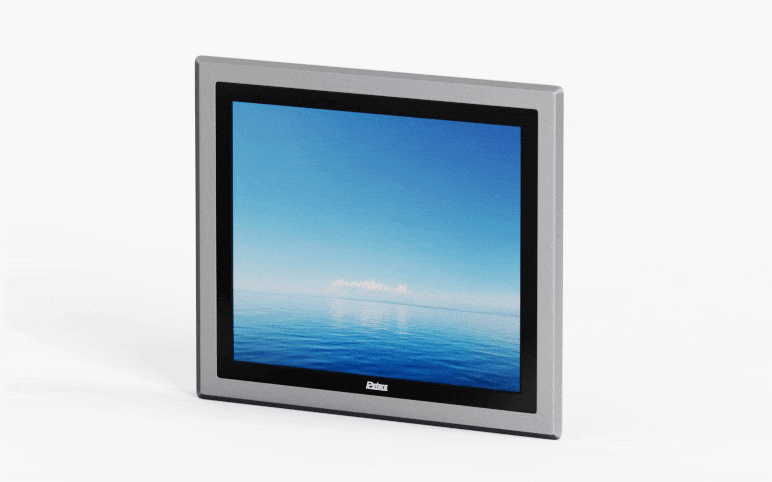

· RCS-170OP

17″ Industrial Grade Wall Mount Panel

A high-performance wall-mounted display with industrial-grade quality,
using LED industrial control screen with high-brightness, high-contrast,
the 178/178 ultra-wide viewing angle and high-resolution display
can improve the visual experience;
10-point capacitive touch optional, IP65 waterproof and dustproof rating optional;
support wall hanging (VESA) and embedded installation mode;
the products has passed CE/FCC/ROSH testing standards.

Optional Panel Size: 17 inch, 19 inch

Request a Quote
Explore features
Scroll
Details on Display

Technical Data

Full Specification

Panel 17″
Resolution
1280 × 1024
Aspect Ratio
5:4
Pixel Pitch
0.264×0.264 mm
Viewing Angle
85/85/80/80
Brightness
500 cd/m²
Contrast Ratio
1000:1
Display Area
337.92×270.336 mm
Panel Size
358.5×296.5×10.5 mm
Panel 19″
Resolution
1440×900
Aspect Ratio
16:10
Pixel Pitch
0.2835×0.2835 mm
Viewing Angle
85/85/80/80
Brightness
500 cd/m²
Contrast Ratio
1000:1
Display Area
408.24×255.15 mm
Panel Size
428×278×11 mm
