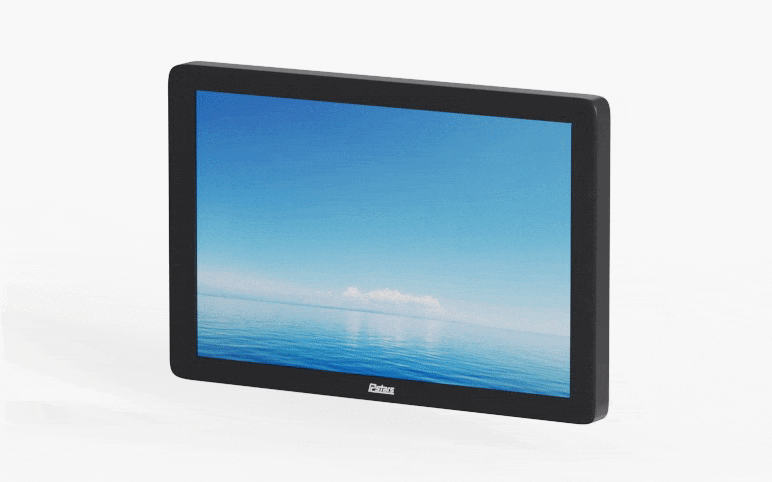

10.1 inch Open Frame Wall Mount Display

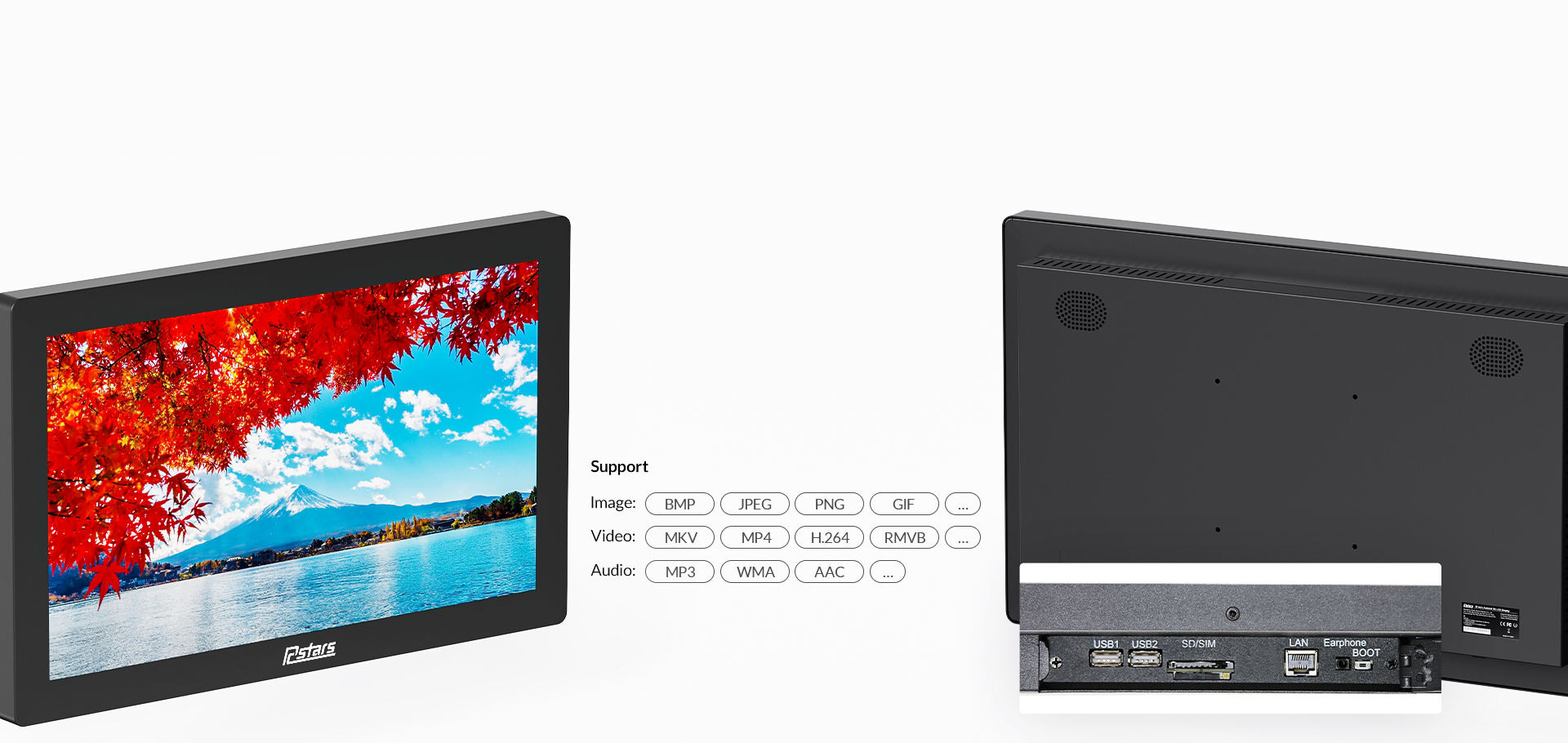

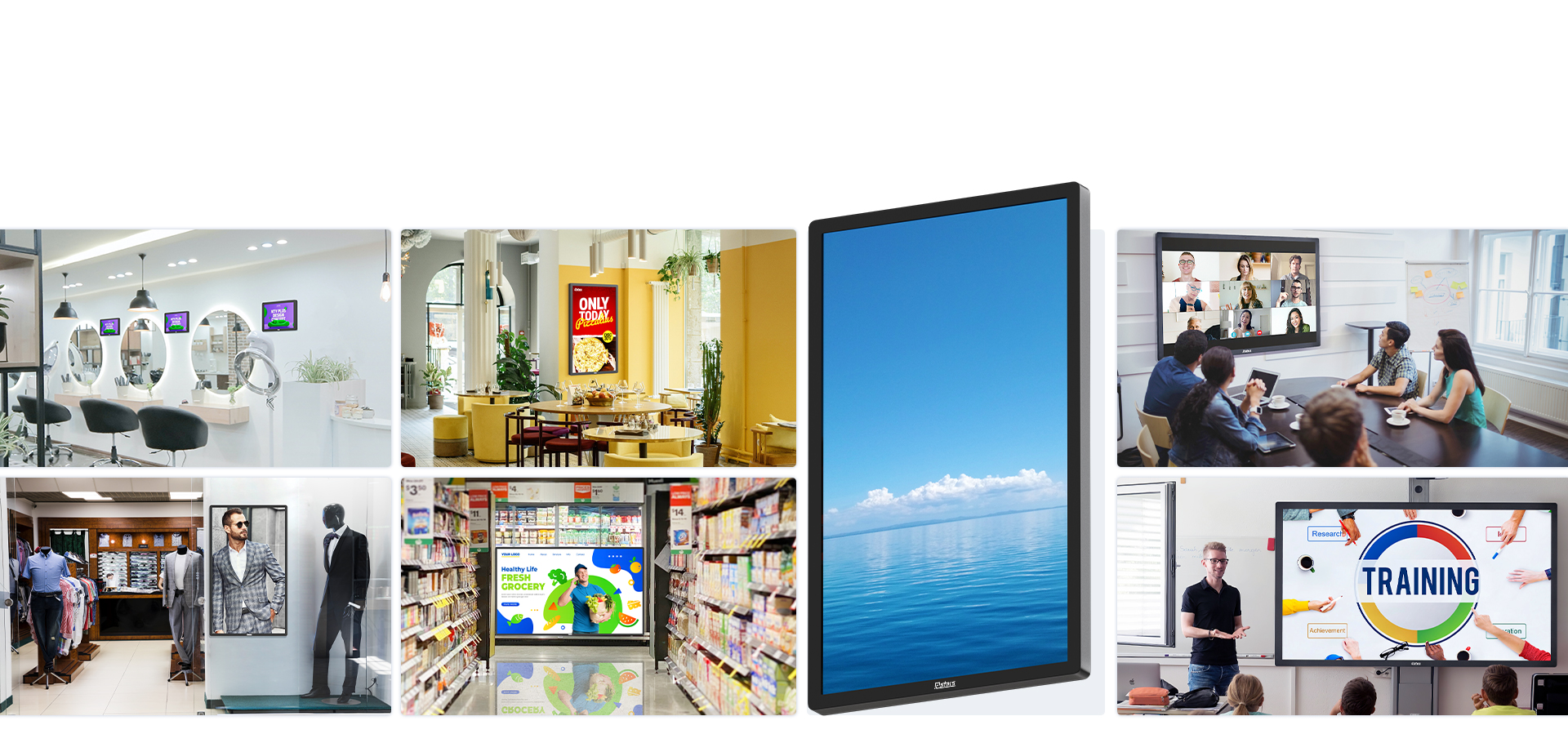

A wall-mounted monitor with open-bezel design, capable of continuous display 7/24/365 without interruption; screen brightness 500 nits-4000 nits selectable, capacitive touch/infrared touch selectable; sliding screen function supporting pictures, music and video to 1080p, which can play music and pictures at the same time, suitable for various indoor scenes.
Optional Panel Size :
10.1 inch-98 inch
| Model No | RCS-101OP | RCS-104OP | RCS-120OP | RCS-150OP | RCS-156OP | RCS-170OP | RCS-185OP | RCS-190OP | RCS-220OP | RCS-240OP | RCS-270OP | RCS-320OP | RCS-430OP | RCS-490OP | RCS-550OP | RCS-650OP | RCS-750OP | RCS-860OP | RCS-980OP |
| Panel Model | 10.1 inch TFT LED | 10.4 inch TFT LED | 12 inch TFT LED | 15 inch TFT LED | 15.6 inch TFT LED | 17 inch TFT LED | 18.5 inch TFT LED | 19 inch TFT LED | 21.5 inch TFT LED | 23.8 inch TFT LED | 27 inch TFT LED | 32 inch TFT LED | 43 inch TFT LED | 49 inch TFT LED | 55 inch TFT LED | 65 inch TFT LED | 75 icnh TFT LED | 86 inch TFT LED | 98 inch TFT LED |
| Max Resolution | 1280×800 | 800×600 | 800×600 | 1024×768 | 1920×1080 | 1280×1024 | 1366×768 | 1440×900 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Pixel Pitch | 0.1659×0.1659 | 0.264×0.264 | 0.204×0.204 | 0.297×0.297 | 0.17925×0.17925 | 0.264×0.264 | 0.300×0.300 | 0.2835×0.2835 | 0.24795×0.24795 | 0.2745×0.2745 | 0.31125×0.31125 | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.63×0.63 | 0.372×0.372 | 0.429×0.429 | 0.4935×0.4935 | 0.5622×0.5622 |
| Viewing Angle | 85/85/85/85 | 70/70/50/60 | 70/70/50/60 | 80/80/65/80 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Contrast Ratio | 800:1 | 500:1 | 450:1 | 800:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1400:1 | 1200：1 | 1200:1 | 1400:1 | 1400:1 | 1200：1 | 1200:1 | 1300:1 |
| Brightness (cd/m²) | 500 | 500 | 500 | 500 | 250 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 50 | 500 | 500 | 500 | 500 | 500 |
| Display Area (mm) | 216.96×135.60 | 211.2×158.4 | 246×184.5 | 304.128×228.096 | 344.16×193.59 | 337.92×270.336 | 409.8×230.4 | 408.24×255.15 | 476.064×267.786 | 527.04×296.46 | 597.888×336.312 | 698.4×392.85 | 941.184×529.416 | 1073.78×604 | 1209.6×680.4 | 1428.48×803.52 | 1649.66×927.936 | 1895.04×1065.96 | 2158.85×1214.35 |
| Panel Size (mm) | 241.86×161.6×5.2 | 243×181.6×12.2 | 276×209×11 | 326.5×253.5×9.6 | 359.5×223.8×3.2 | 358.5×296.5×10.5 | 430.4×254.6×10.5 | 428×278×11 | 495.6×292.2×10.7 | 543×317.4×11.6 | 630×368.2×11.8 | 725.2×422.7×22.4 | 969×563.9×26 | 109.5×62.9×29.6 | 1244.6×720.9 | 1459.2×830×16 | 1675.2×953.6×11.9 | 1922.2×1093.2×16.14 | 2187.8×1242.8×68.6 |
