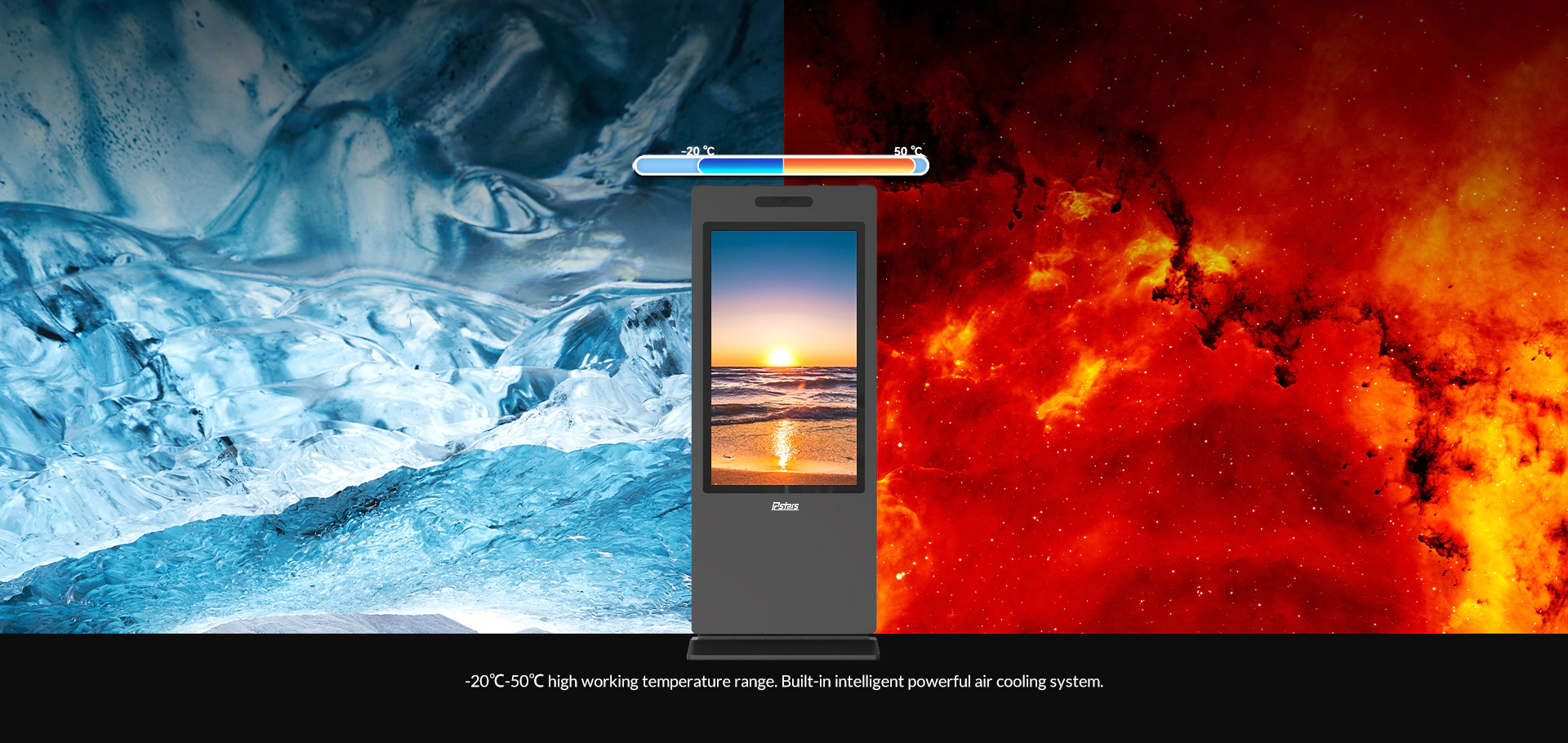

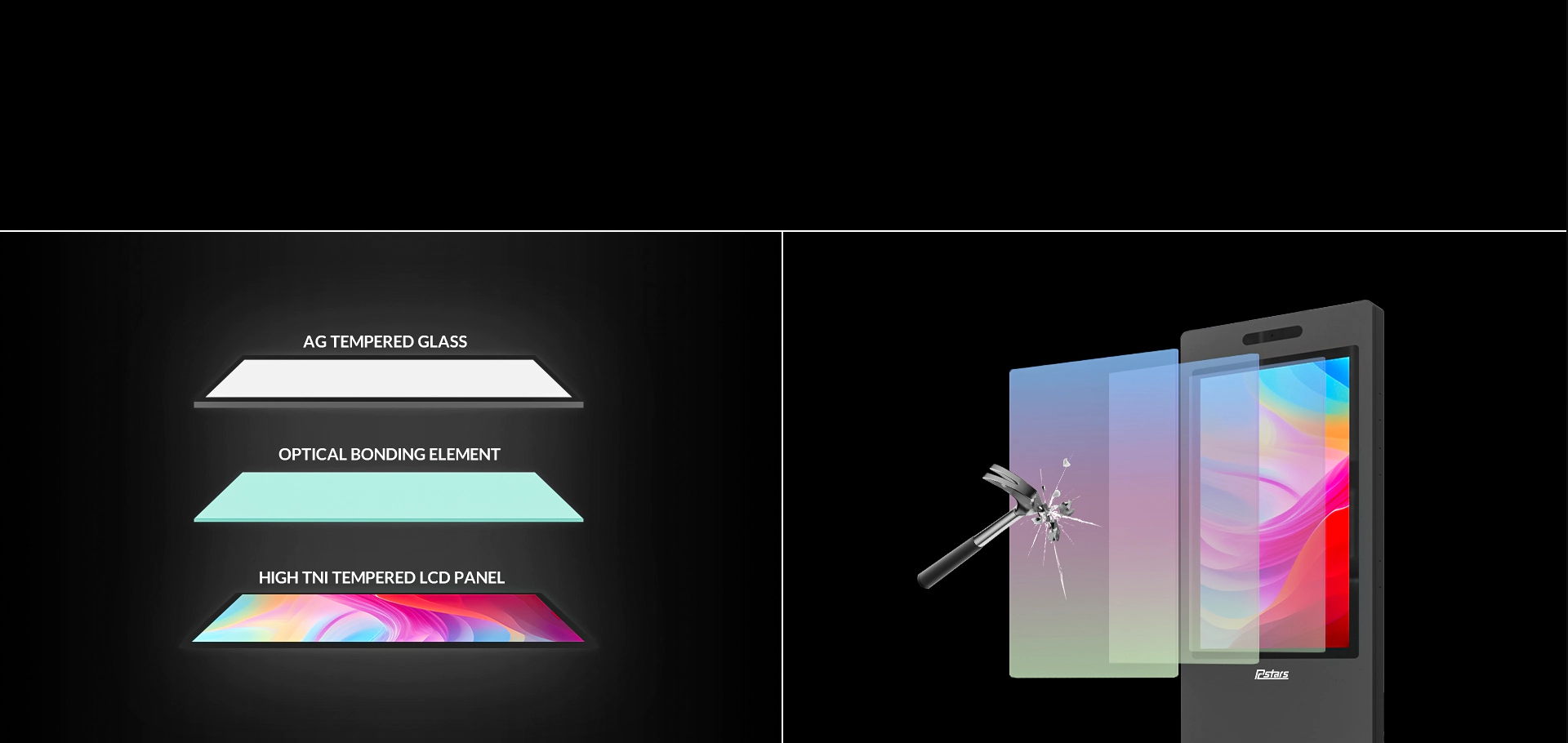

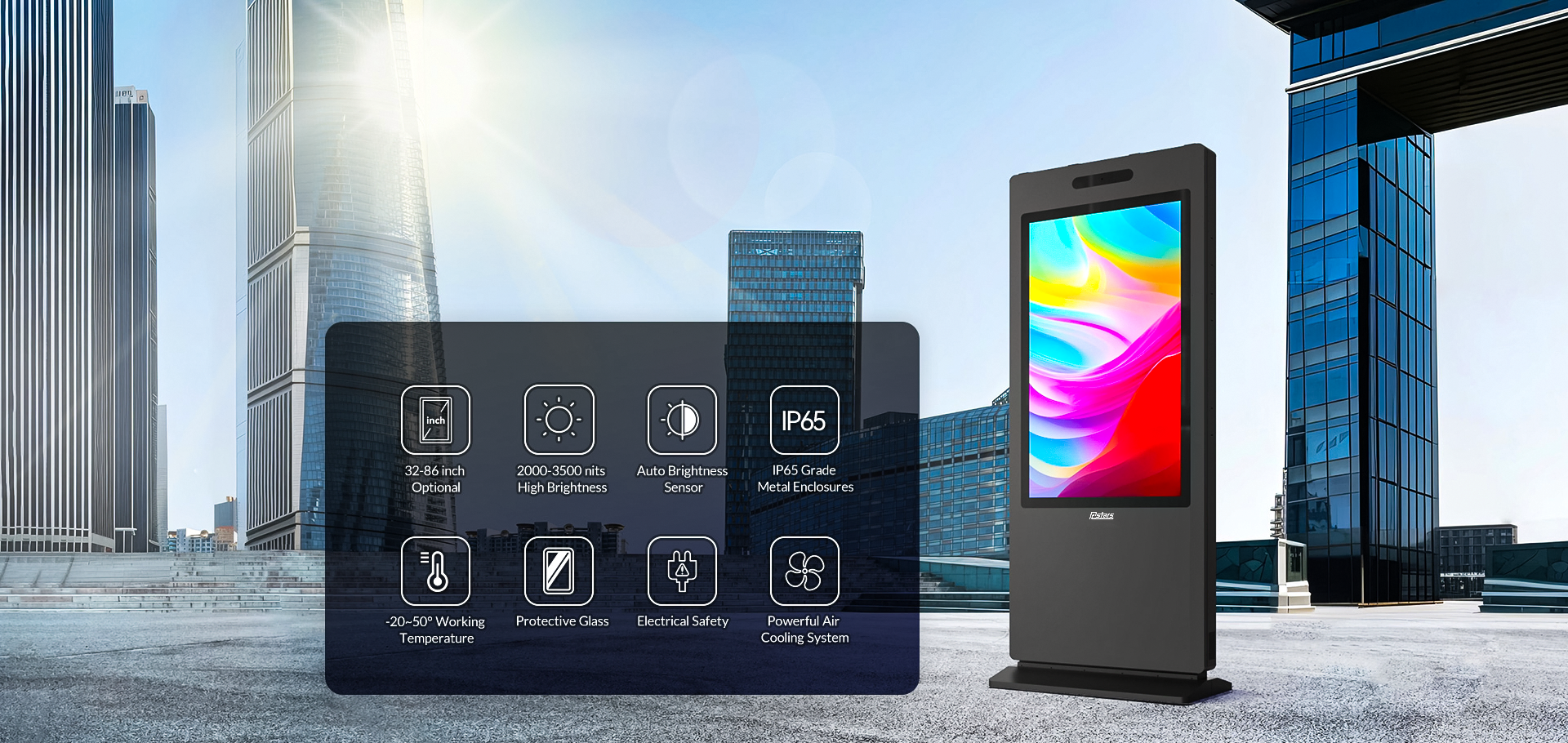

An industrial-grade outdoor digital advertising screen that meets IP65 protection level, dustproof/rainproof/snowproof/proof from direct sunlight, fully resistant to all kinds of extreme outdoor environments. Built-in super cooling system, meet high working temperature -20℃-50℃, can automatically adjust the brightness, equipped with laminated explosion-proof glass. Screen brightness 2000-3500 nits optional, capacitive touch screen optional, equipment black and white color optional.
Optional Panel Size:
32 inch-75 inch
Model No | RCS-320ODL | RCS-430ODL | RCS-490ODL | RCS-550ODL | RCS-650ODL | RCS-750ODL |
Panel Model | 32 inch TFT LED | 43 inch TFT LED | 49 inch TFT LED | 55 inch TFT LED | 65 inch TFT LED | 75 inch TFT LED |
Max Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 |
Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Pixel Pitch | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.63×0.63 | 0.372×0.372 | 0.429×0.429 |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Contrast Ratio | 1400:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 | 1200:1 |
Brightness (cd/m²) | 2000-3500 | 2000-3500 | 2000-3500 | 2000-3500 | 2000-3500 | 2000-3500 |
Display Area (mm) | 698.4×392.85 | 941.184×529.416 | 1073.78×604 | 1209.6×680.4 | 1428.48×803.52 | 1649.66×927.936 |
Panel Size (mm) | 725.2×422.7×22.4 | 969×563.9×26 | 109.5×62.9×29.6 | 1244.6×720.9×27 | 1459.2×830×16 | 1675.2×953.6×11.9 |
