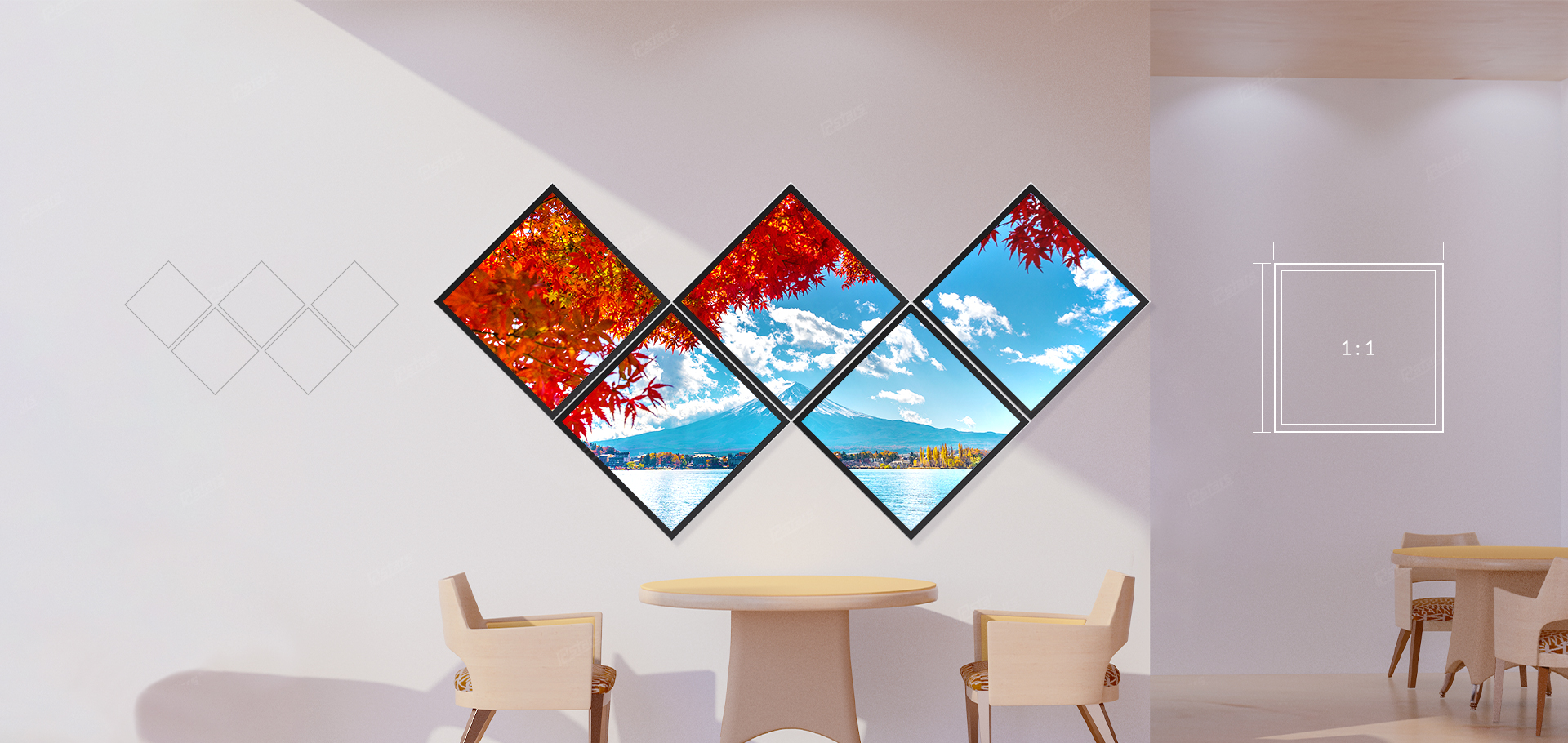

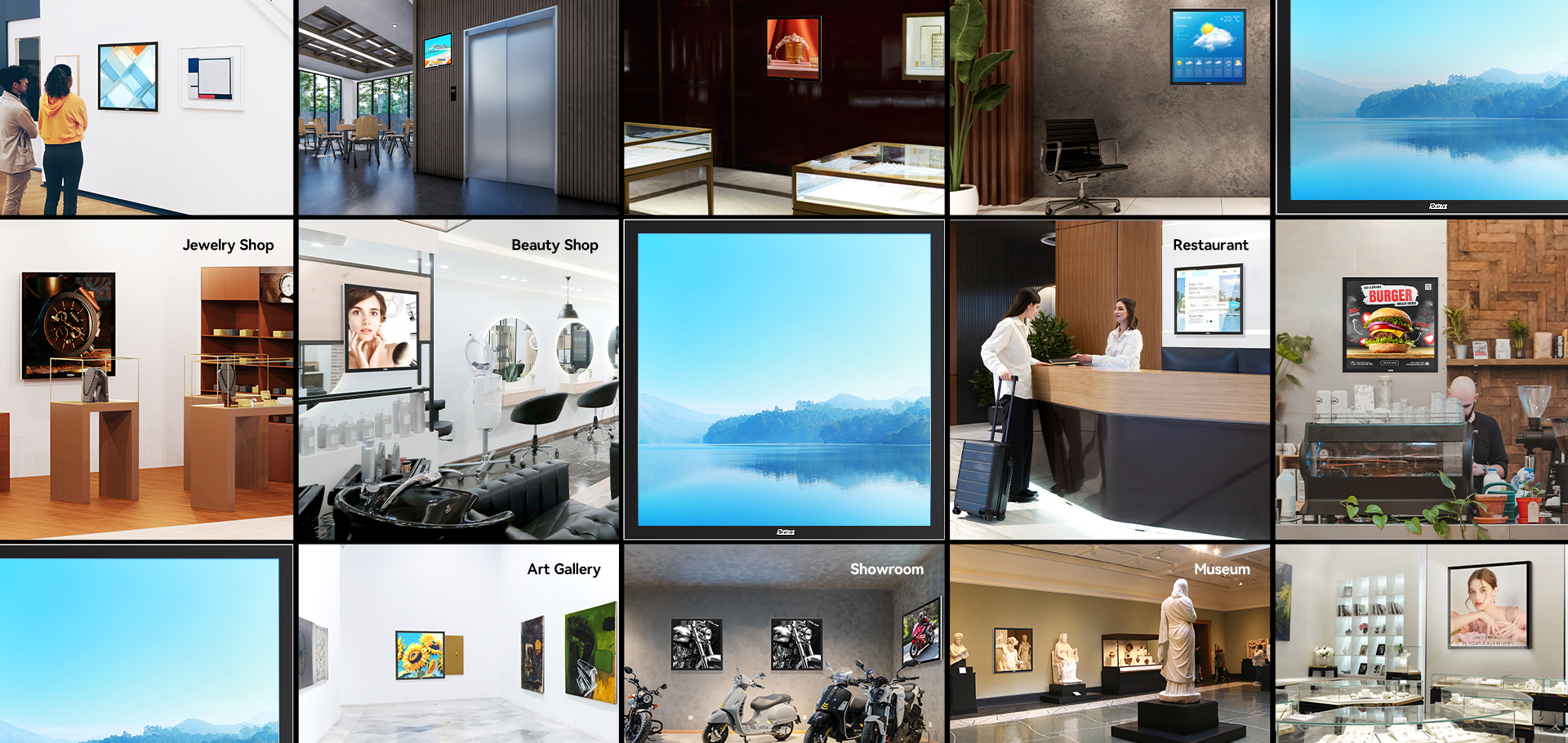

Large square screen with a unique 1:1 ratio, broke the traditional 16:9 ratio. Its ultra-narrow edge gives a better visual effect to people. Ultra-thin apple-like design with a strong sense of art and technology makes the product more delicate, small and unique. It can be widely used in museums, art galleries, science and technology museums, art galleries, etc.
Optional Panel Size:
19.2 inch-60 inch
Model No | RCS-192SQAZ | RCS-259SQAZ | RCS-296SQAZ | RCS-334SQAZ | RCS-457SQAZ | RCS-510SQAZ | RCS-525SQAZ | RCS-600SQAZ |
Panel Model | 19.2 inch TFT LED | 25.9 inch TFT LED | 29.6 inch TFT LED | 33.4 inch TFT LED | 45.7 inch TFT LED | 51 inch TFT LED | 52.5 inch TFT LED | 60 inch TFT LED |
Max Resolution | 950×950 | 950×950/1900×1900 | 950×950/1900×1900 | 950×950/1900×1900 | 950×950/1900×1900 | 950×950/1900×1900 | 950×950/1900×1900 | 950×950/1900×1900 |
Pixel Pitch | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.36375×0.36375 | 0.372×0.372 | 0.429×0.429 | 0.4935×0.4935 | 0.5622×0.5622 |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Contrast Ratio | 1400:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 | 1200:1 | 1200:1 | 1300:1 |
Brightness (cd/m²) | 350-700 | 300-700 | 300-700 | 300-700 | 300-70 | 300-700 | 300-700 | 300-700 |
Panel Size (mm) | 382×382×65 | 503×503×56 | 569×569×6 | 637×637×65 | 747×747×65 | 857×857×65 | 935×935×65 | 1112×1112×65 |
Display Area (mm) | 345×345 | 466×46 | 532×532 | 600×600 | 710×710 | 820×820 | 898×898 | 1075×1075 |
