· RCS-750ODD

75 inch Outdoor Double-Sided Kiosk

Rcstars’ ODD series outdoor displays offer the optimal solution for dual-sided outdoor viewing.
This standalone solution is versatile enough for nearly any setting. All our outdoor double sided
advertising screens meet the IP65 rating for water and dust resistance.
Featuring K10 explosion-proof glass and unique thermal management technology, these waterproof
outdoor digital display screens for advertising can operate in extremely high temperatures and boast
a high brightness of 2000-3500 nits, ensuring clear visibility even under direct sunlight.

Optional Panel Size: 43 inch, 55 inch, 65 inch, 75 inch

Scroll
Details on Display

High Brightness

Visible clearly.
Adjusted automatically.

Equipped with a 3500-nit high-brightness panel and an intelligent light sensor, the display automatically adjusts screen brightness according to ambient lighting conditions. It ensures clear visibility under direct sunlight while optimizing energy efficiency and viewing comfort throughout the day.

3500 nits ultra brightness
Auto ambient light adjustment
rcstars-odd-outdoor-double-sided-lcd-display-5 (1)
Auto Brightness Contorl
Power · Protection

Protected always.
Powered securely.

The integrated circuit breakers and surge suppressors provide reliable protection against overload, short circuits, and undervoltage conditions. Designed for demanding outdoor environments, the system helps maintain stable operation and long-term durability for continuous digital signage performance.

Electrical Safety
Overload · Short circuit · Undervoltage protection
rcstars-odd-outdoor-double-sided-lcd-display-3 (1)
Matte Black
rcstars-odd-outdoor-double-sided-lcd-display-4

IP65 Protection Grade

Our IP65 outdoor digital signage is waterproof and dustproof, fully resistant to harsh weather conditions.

rcstars-odd-outdoor-double-sided-lcd-display-6

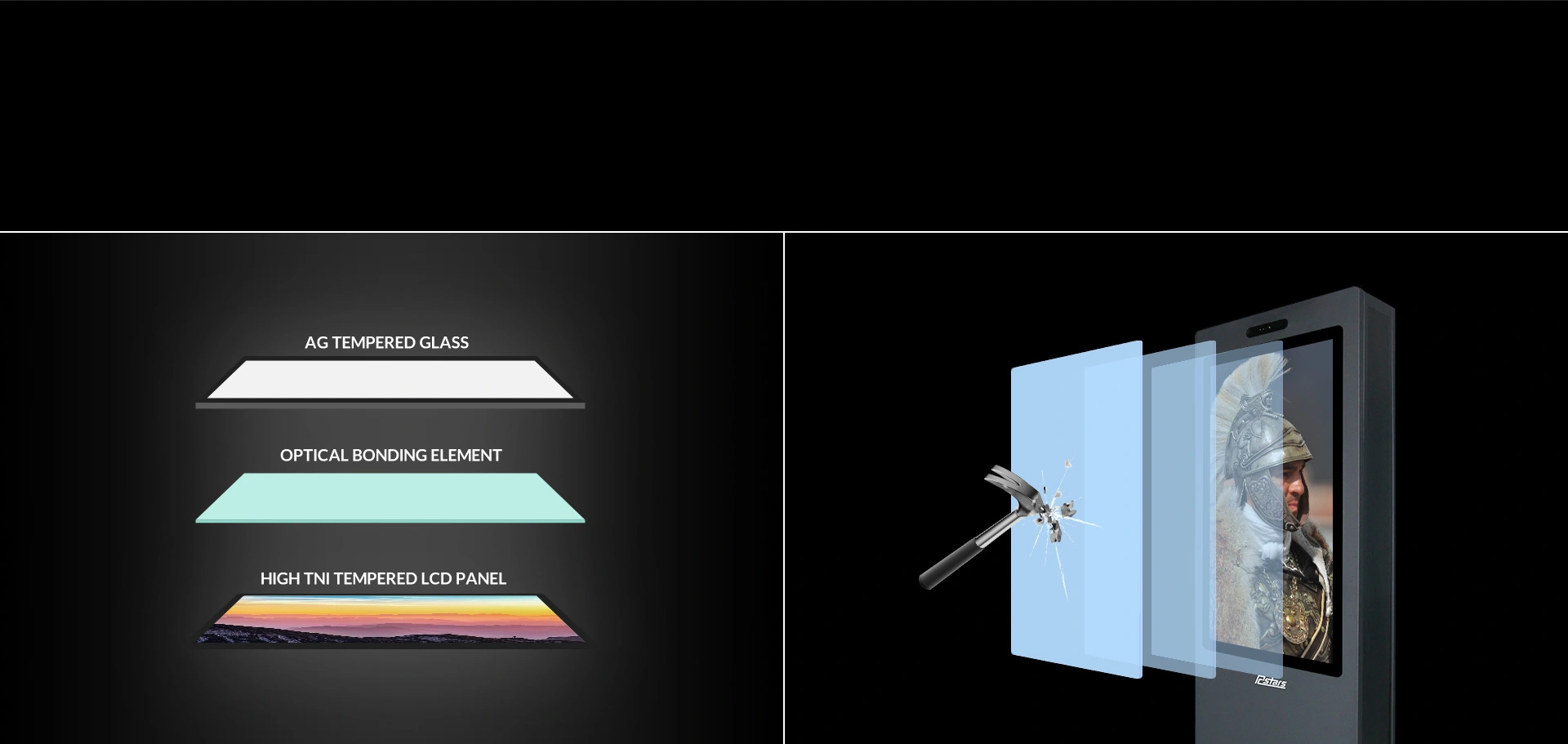

Protective
Glass

6mm AG laminated
explosion-proof glass IK9/10
explosion-proof rating.

System & Modules

Multiple Options,
One Platform.

Flexible options.

Supports Android, Windows, LCD Monitor mode, and Plug & Play configurations, with optional touch available for interactive or standard display applications.

rcstars-odd-outdoor-double-sided-lcd-display-7
OS · Touch
Technical Data

Full Specification

Model No RCS-320ODD RCS-430ODD RCS-490ODD RCS-550ODD RCS-650ODD RCS-750ODD
Panel Model 32 inch TDT LED 43 inch TDT LED 49 inch TDT LED 55 inch TDT LED 65 inch TDT LED 75 inch TDT LED
Max Resolution 1920×1080 1920×1080 1920×1080 1920×1080 3840×2160 3840×2160
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9
Pixel Pitch 0.36375×0.36375 0.4903×0.4903 0.27963×0.27963 0.63×0.63 0.372×0.372 0.4296×0.4296
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Contrast Ratio 1400:1 1200:1 1200:1 1400:1 5000:1 1200:1
Brightness (cd/m²) 2000-3500 2000-3500 2000-3500 2000-3500 2000-3500 2000-3500
Display Area (mm) 698.4×392.85 941.184×529.416 1073.78×604 1209.6×680.4 1428.48×803.52 1549.44×871.56
Panel Size (mm) 725.2×422.7×22.4 973x565.8×29 109.5×62.9×29.6 1244.6×720.9 1450.6×833.366×17.5 1758×993×45
