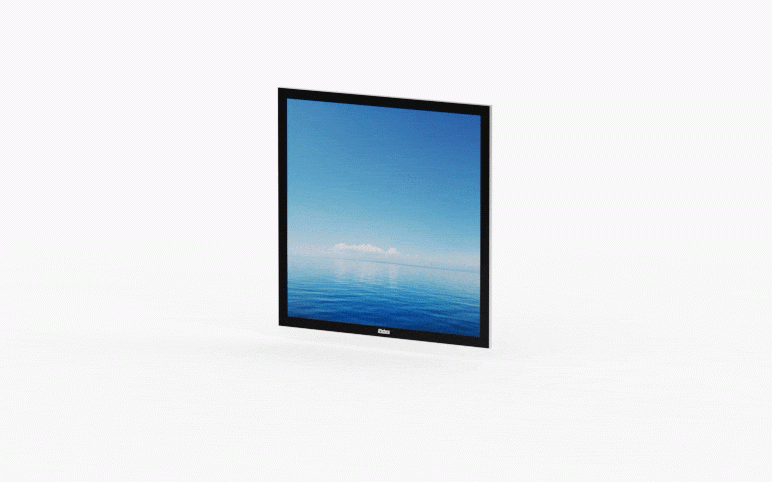

· RCS-192SQ

19.2″ Commercial Square Display

Large square screen with a unique 1:1 ratio, broke the traditional 16:9 ratio.
Its ultra-narrow edge gives a better visual effect to people.
Ultra-thin apple-like design with a strong sense of art
and technology makes the product more delicate, small and unique.
It can be widely used in museums, art galleries, science and technology museums,
art galleries, etc.

Optional Panel Size: 19.2 inch-60 inch

Request a Quote
Explore features
Scroll
Details on Display

Balanced 1:1 Aspect Ratio

Square display format delivers unique visual presentation and optimized content layout.


Adaptive Brightness Control

300–700 nits brightness ensures clear visibility in various indoor lighting conditions.


Ultra-Narrow Edge Design

Slim bezels maximize screen area and create a more immersive viewing experience.


Seamless Network Connectivity

Supports Wi-Fi and LAN for stable and efficient content delivery.


Premium Aluminum Frame

Silver aluminum construction enhances durability with a modern, high-end finish.


24/7 Continuous Operation

Designed for uninterrupted, round-the-clock commercial use.

SQ_Details_02(5)

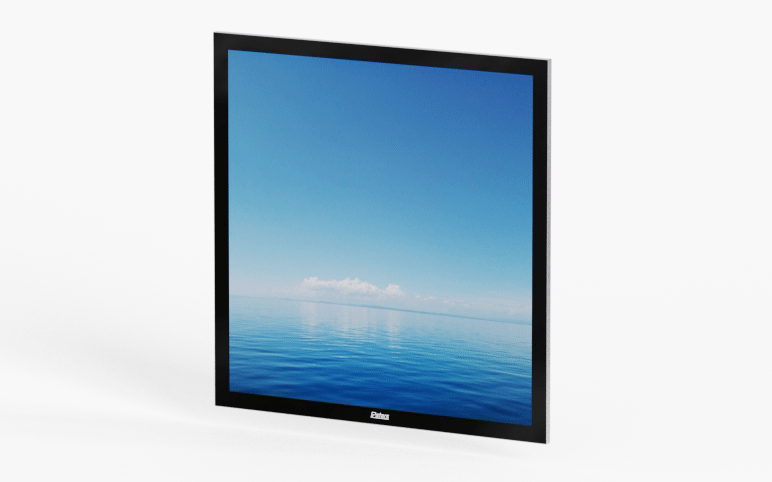

Square
Display
Format.

1:1 aspect ratio breaks away from the traditional 16:9 format, creating a more balanced and eye-catching visual layout for diverse content presentation.
SQ_Details_03
Vivid · Resolution

Full HD
Visual
Clarity.

High color reproduction combined with Full HD resolution delivers vivid images and sharp picture quality for impactful visual performance.
Use Scenarios

Built for every
commercial space.

SQ_Details_05

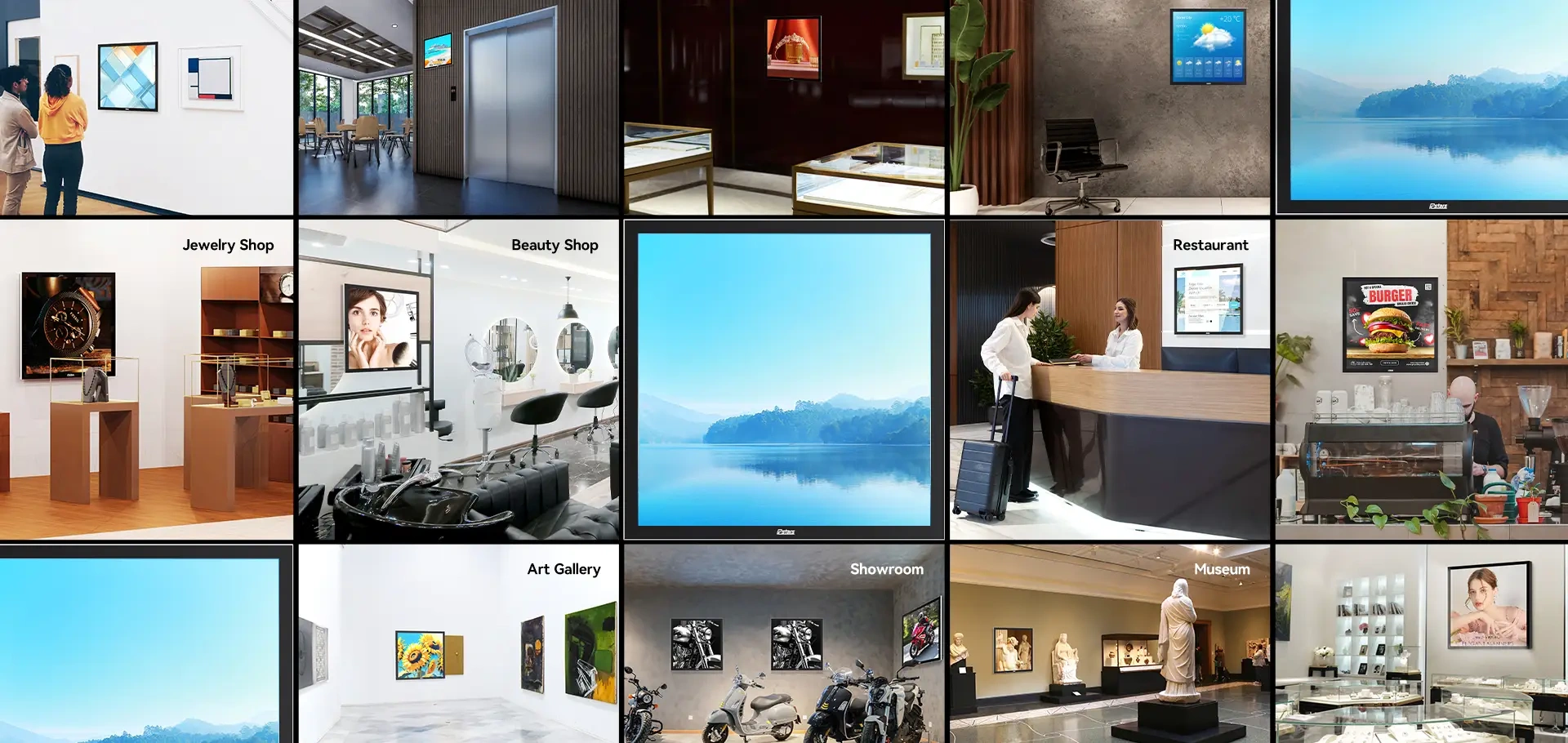

Multi-Scenario

Transform spaces into dynamic channels for information and promotion.
SQ_Details_04

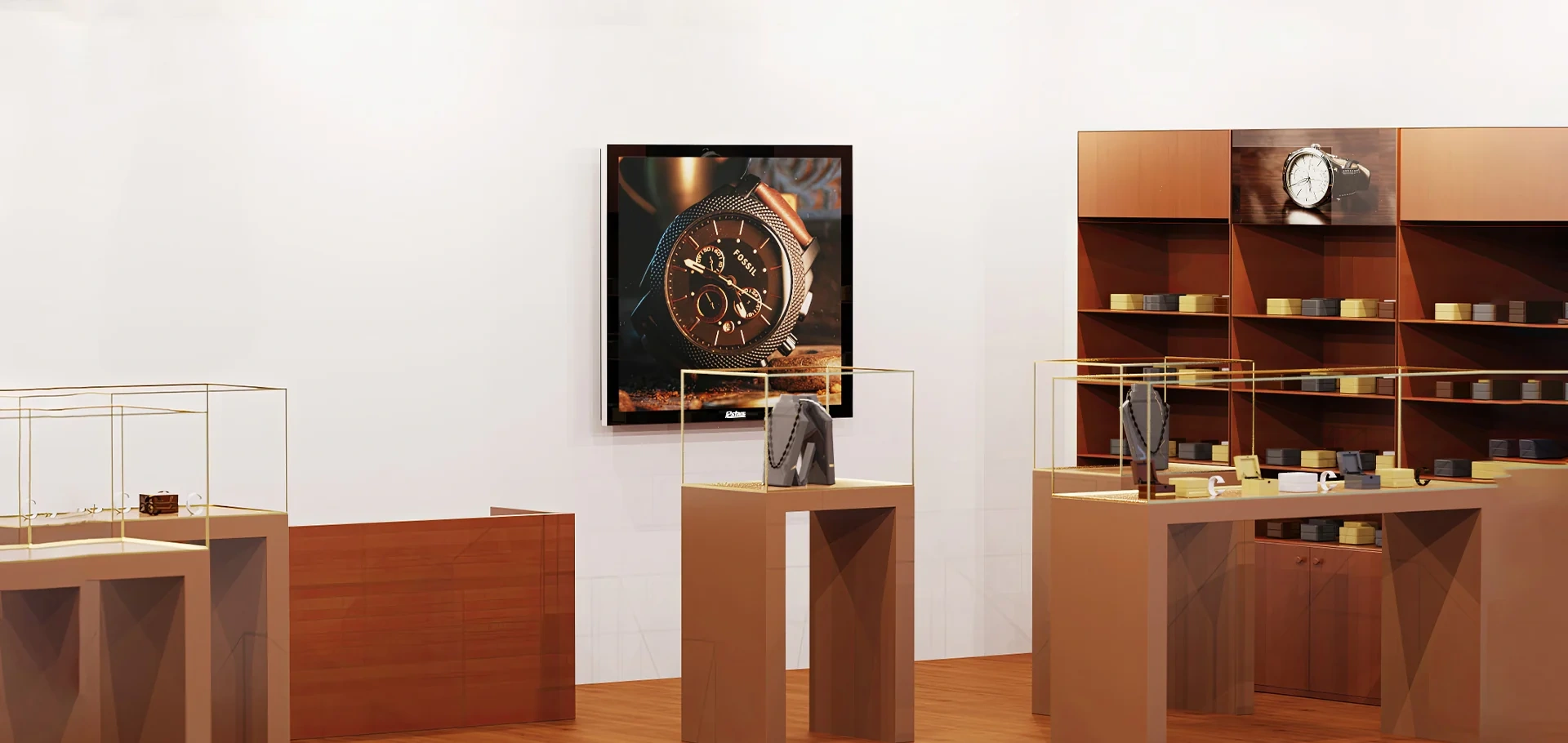

Watch Store

Turn walls into engaging platforms for messaging and brand exposure.
Technical Data

Full Specification

Model No RCS-192SQAZ RCS-259SQAZ RCS-296SQAZ RCS-334SQAZ RCS-457SQAZ RCS-510SQAZ RCS-525SQAZ RCS-600SQAZ
Panel Model 19.2 inch TFT LED 25.9 inch TFT LED 29.6 inch TFT LED 33.4 inch TFT LED 45.7 inch TFT LED 51 inch TFT LED 52.5 inch TFT LED 60 inch TFT LED
Max Resolution 950×950 950×950/1900×1900 950×950/1900×1900 950×950/1900×1900 950×950/1900×1900 950×950/1900×1900 950×950/1900×1900 950×950/1900×1900
Pixel Pitch 0.36375×0.36375 0.4903×0.4903 0.27963×0.27963 0.36375×0.36375 0.372×0.372 0.429×0.429 0.4935×0.4935 0.5622×0.5622
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Contrast Ratio 1400:1 1200:1 1200:1 1400:1 1400:1 1200:1 1200:1 1300:1
Brightness (cd/m²) 350-700 300-700 300-700 300-700 300-70 300-700 300-700 300-700
Panel Size (mm) 382×382×65 503×503×56 569×569×6 637×637×65 747×747×65 857×857×65 935×935×65 1112×1112×65
Display Area (mm) 345×345 466×46 532×532 600×600 710×710 820×820 898×898 1075×1075
