rcstars lcd display product 101jl
+

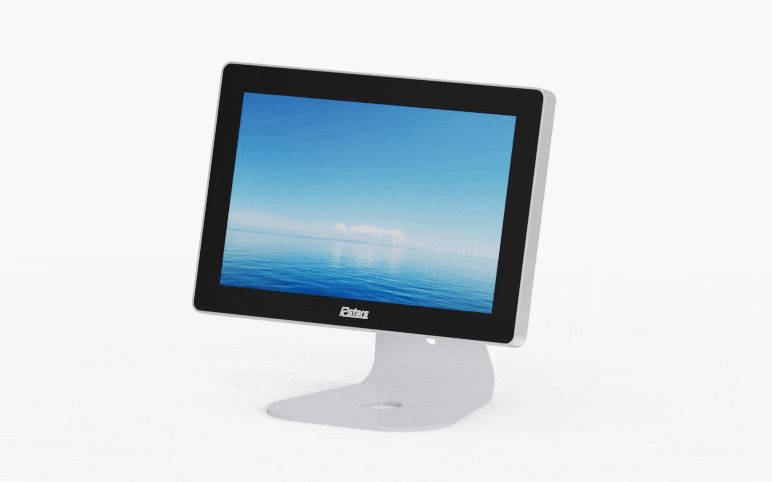

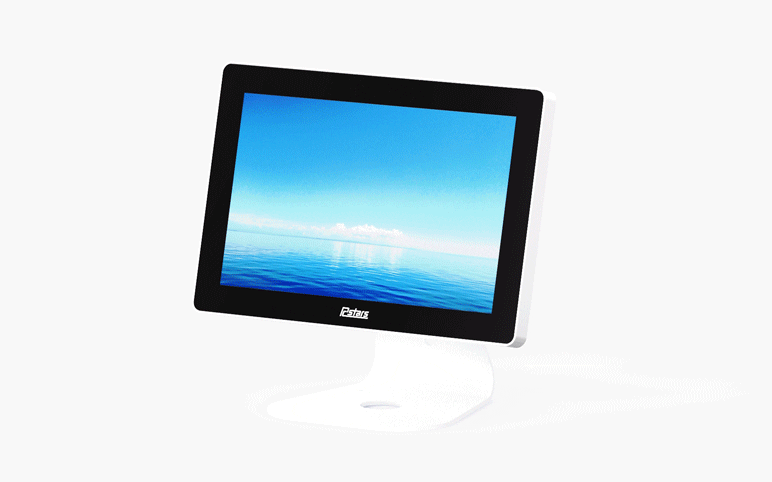

10.1 inch Desktop Touch Screen Display

Table top digital signage, capacitive touch screen, 500 nits brightness; black and white color options, camera function optional; metal back, screen covered with tempered protective glass, silver aluminum frame on the side; desktop design, screen and stand removable; indoor use, suitable for use in conference rooms, reception desks, cafes.



Optional Panel Size:

10.1 inch, 15.6 inch, 21.5 inch


Specifications of 10.1 inch Desktop Touch Screen Display

Model NoRCS-101JLTPC-PCAPRCS-156JLTPC-PCAPRCS-220JLTPC-PCAP
Panel Model10.1 inch TFT LED15.6 inch TFT LED21.5 inch TFT LED
Max Resolution1280×8001920×10801920×1080
Aspect Ratio16:1016:0916:09
Pixel Pitch0.1659×0.16590.17925×0.179250.24795×0.24795
Viewing Angle85/85/85/8585/85/85/8589/89/89/89
Contrast Ratio800:1800:11000:1
Brightness (cd/m²)500250500
Display Area (mm)216.96×135.60344.16×193.59476.064×267.786
Panel Size (mm)241.86×161.6×5.2359.5×223.8×3.2495.6×292.2×10.7
