49 inch Slim Pitch LCD Video Wall

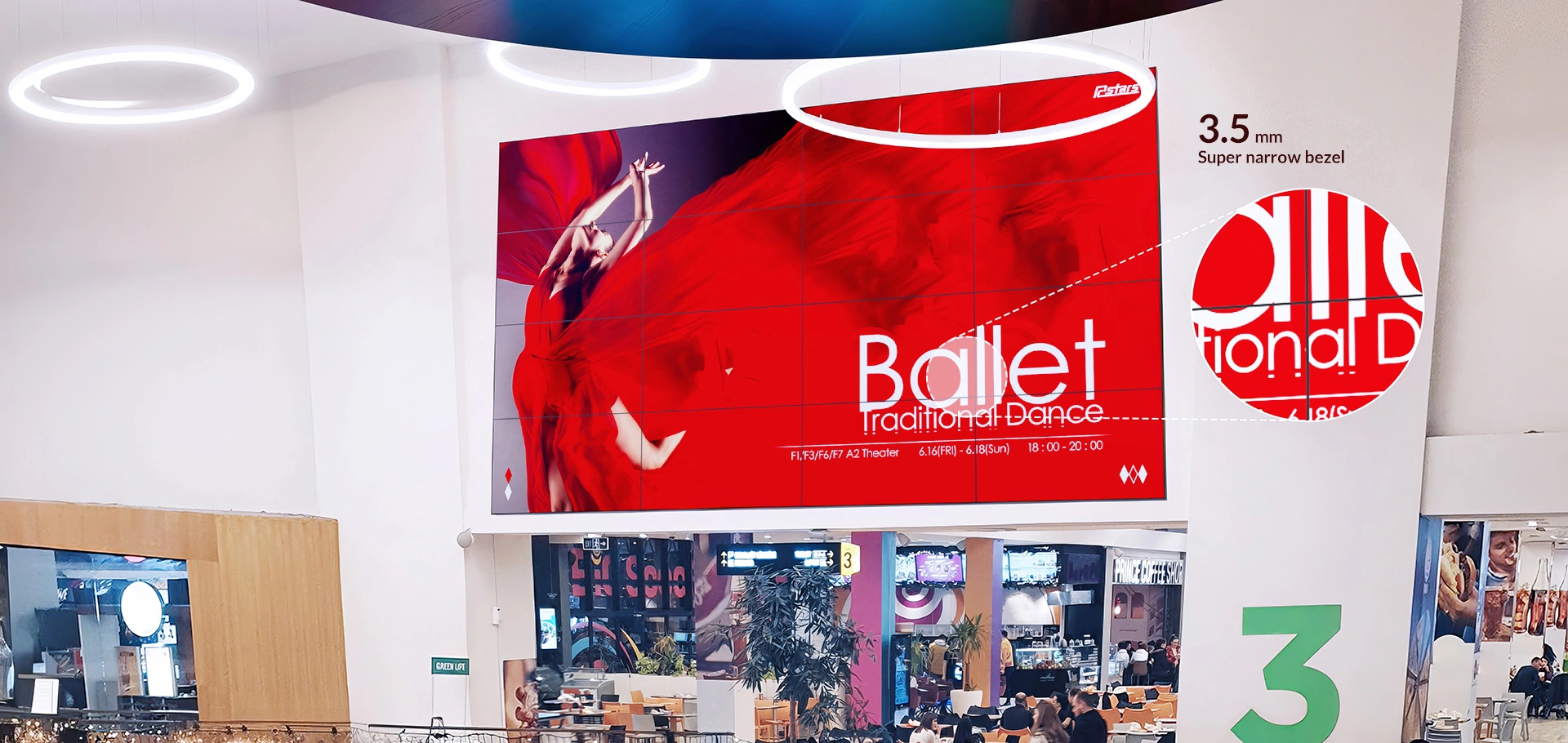

Rcstars LCD video wall solutions offer an all-in-one, easy to configure solution ideal for dynamic digital signage, information display and command and control applications. Our 49 Inch LCD video wall panels make your digital signage easy to implement, configure and operate. 97% chroma, 1.8 mm to 3.5 mm very narrow spacing, 178°ultra-wide viewing angle, 3000:1 ultra-high contrast ratio, 500/700 nits selectable brightness, and more features to customize.
Optional Panel Size :
46 inch, 49 inch, 55 inch
Features of 49 inch Slim Pitch LCD Video Wall

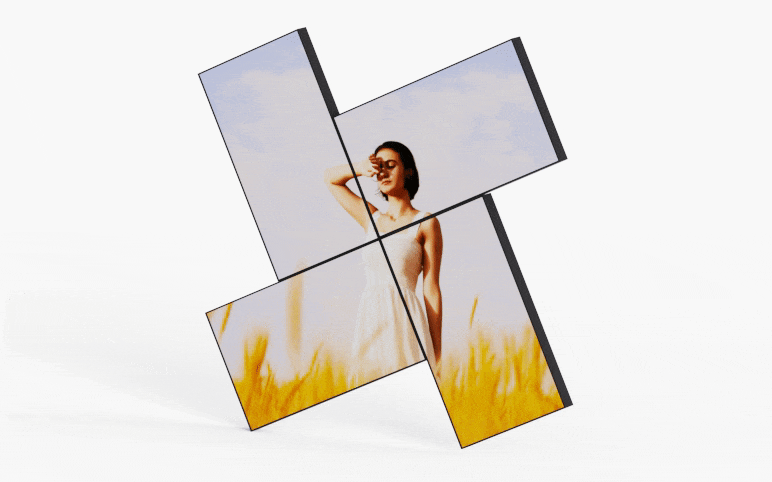

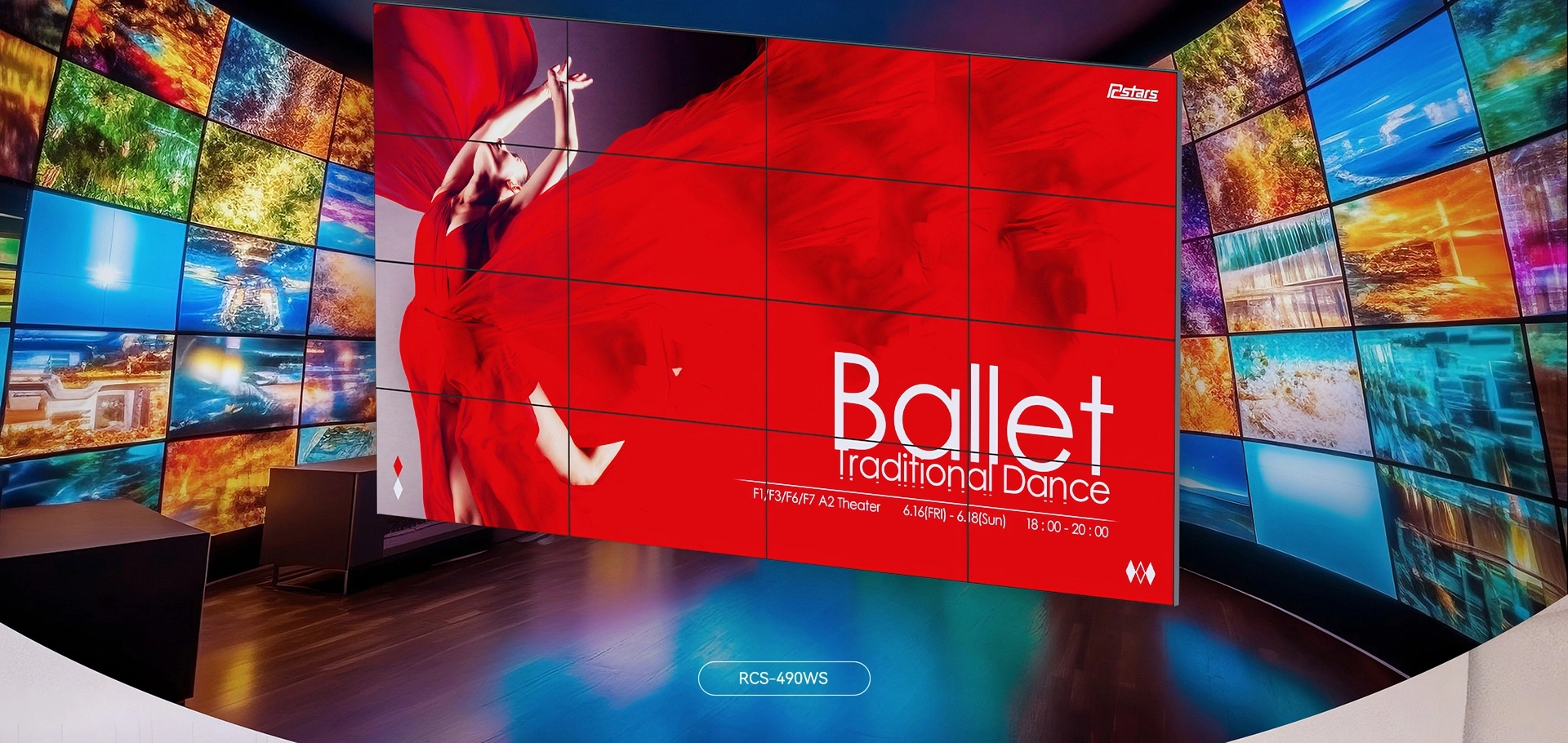

Create Your Dynamic Video Walls
Create a visual spectacle in any space by stitching multiple screens together to create an impressive video wall.
Auto Color Calibration
An on-screen calibration sensor automatically adjusts color and brightness to ensure that all individual display panels match closely.

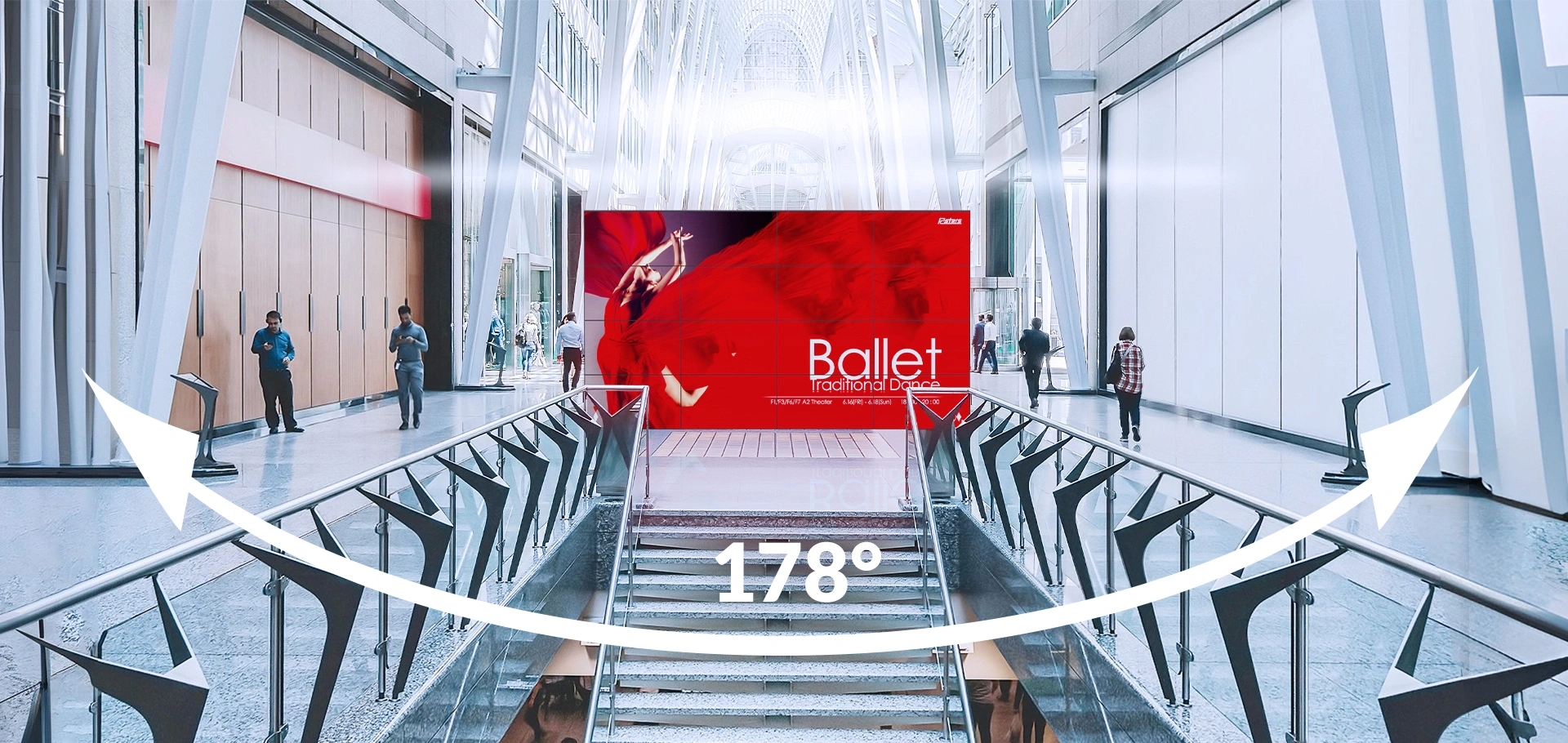

Wide Viewing Angle
178°ultra-wide viewing angle, no matter what viewing position they are in, they can be captivated by the realistic color images.
CMS Software Control
Centrally manage your network of displays from one place. Easily identify and fine-tune all display settings, including brightness, contrast, saturation and sharpness.
| Model No | RCS-460W | RCS-490W | RCS-550W | RCS-550W |
| Panel Model | 46 inch TFT LED | 49 inch TFT LED | 55 inch TFT LED | 55 inch TFT LED |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Max Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Display Color (M) | 16.7 | 16.7 | 16.7 | 16.7 |
| Brightness (cd/m²) | 500/700 | 500/700 | 500/700 | 500/700 |
| Seam (mm) | ≤3.5 | ≤1.8/≤3.5 | ≤1.8/≤3.5 | ≤1.7 |
| Contrast | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Visual Angle | 178/178° | 178/178° | 178/178° | 178/178° |
| Dimension (mm) | 1024×122×579 | 1077.58×109.5×607.8 | 1211.4×111.7×682.2 | 1211.54×682.34×125.3 |
Optional of 49 inch Slim Pitch LCD Video Wall
Installation Optional
landscape or Portrait - Unlimited Number
