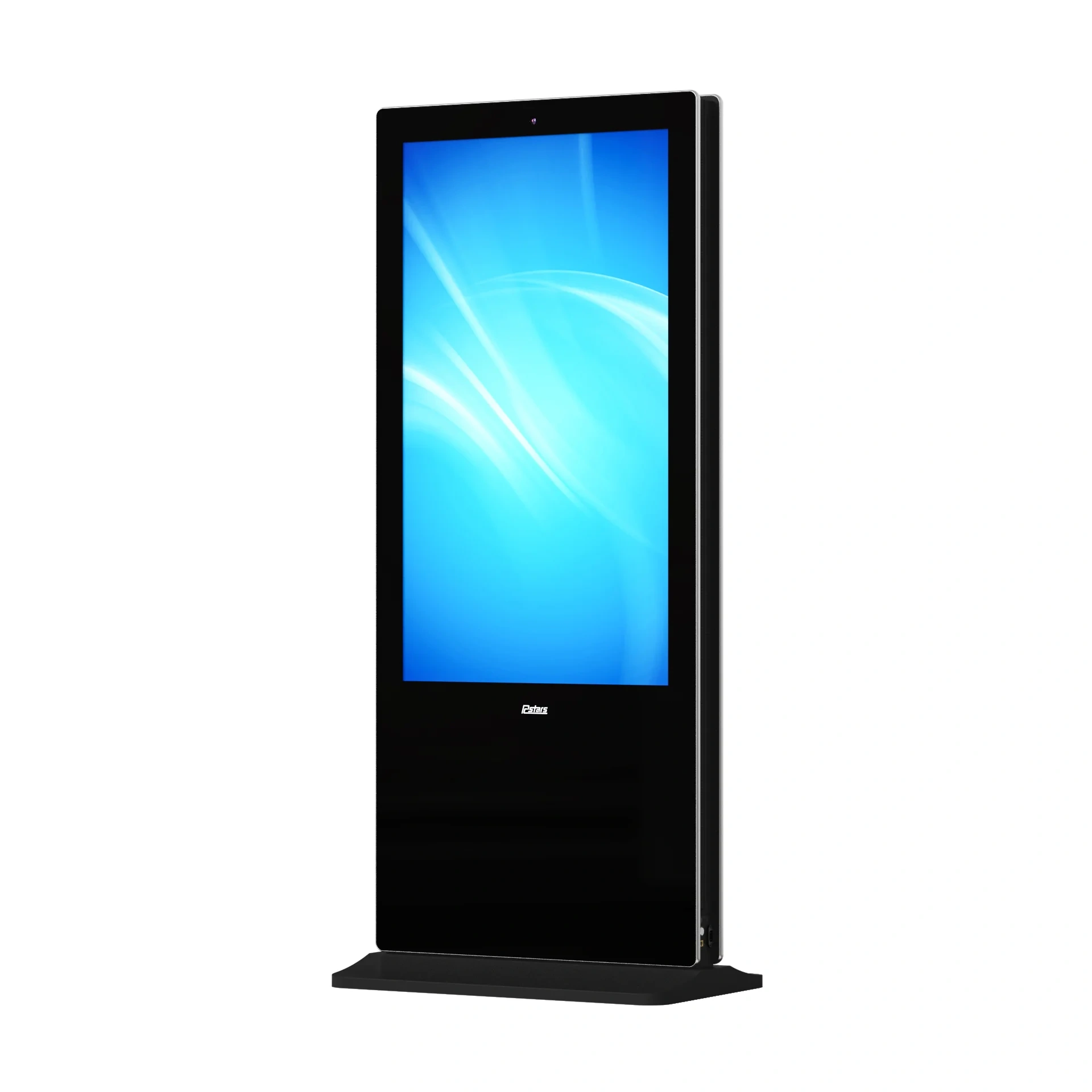

RCS-650DL

· RCS-650DL

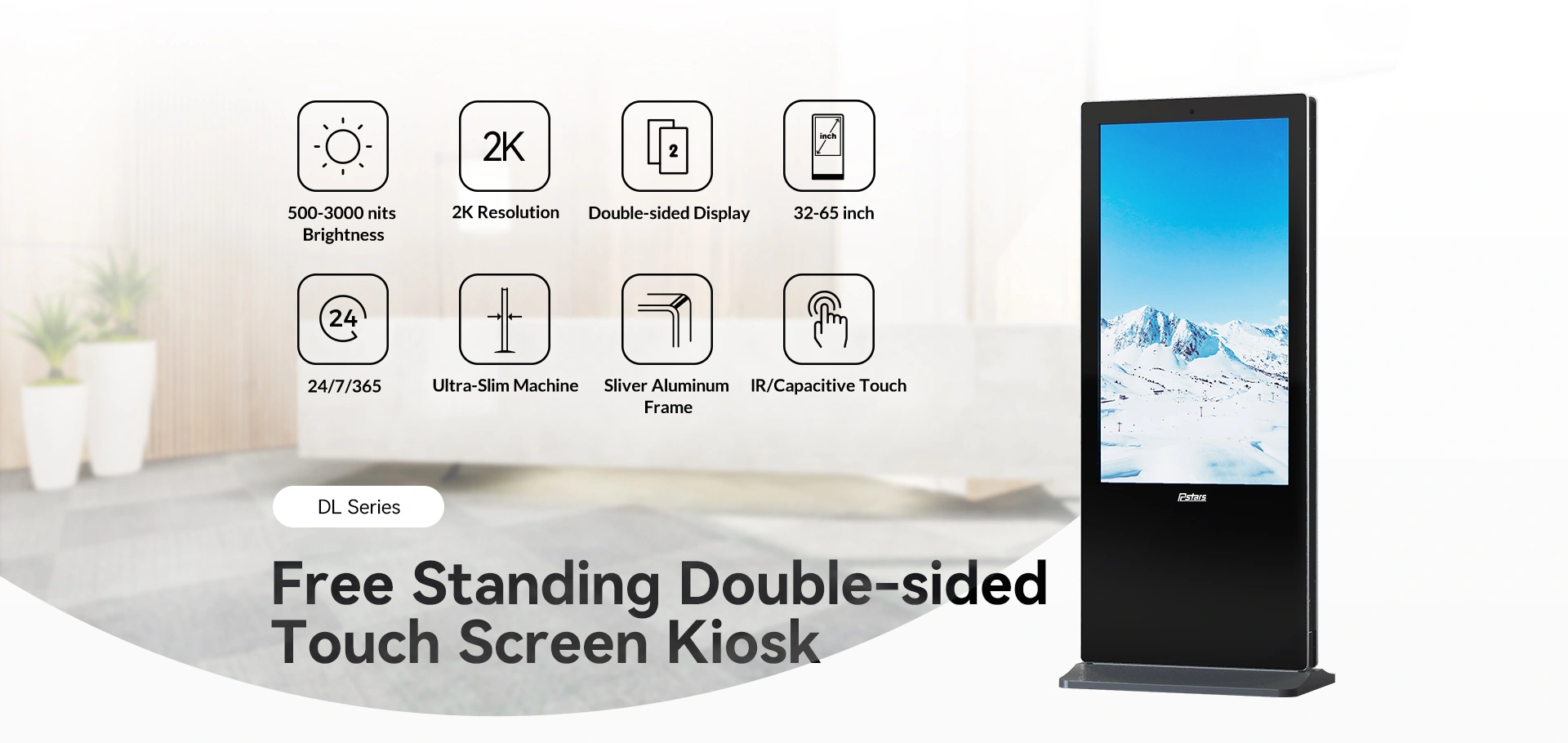

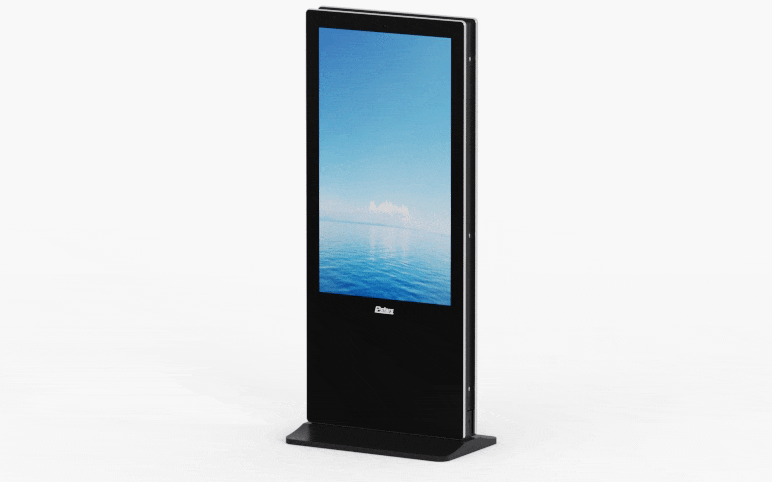

65″ Double Sided Digital Display

Dual-sided digital display, capacitive/IR touch, support display same or different brightness
and same or different content function at the same time; The screen brightness defaults to
500 nits and is optional up to 3500 nits, ultra-wide color gamut, FHD/UHD resolution, display
clear and bright indoors; Metal casing, tempered glass protection screen, the whole kiosk is
rugged and durable; adopts commercial-grade LCD panel, 24/7 nonstop operation; Optional
HD camera, lockable casters to move and fix the professional digital signage kiosk. For more
customisation, please contact us!

ODM/OEM avaliable for branding · White or Black · 32″,43″,49″,55″ and 65″ configurations

Request a Quote

Explore features

Scroll

Double Sided Touch Screen Kiosk Manufacturer & Supplier

Maximize your digital footprint and engage audiences from every direction with Rcstars' premium 65-inch double sided touch screen kiosk. Designed for high-traffic environments such as shopping malls, airport concourses, and exhibition halls, this dual-screen freestanding display delivers twice the impact without taking up additional floor space. As an experienced OEM/ODM manufacturer, Rcstars provides highly customizable and reliable digital signage hardware for global system integrators.

Dual-Screen Engineering for Maximum Engagement

Operating two large-format displays within a single, ultra-slim chassis requires advanced thermal and structural engineering. Our 65-inch double sided touch screen kiosk is built to perform flawlessly 24/7:

Asynchronous Display Capability: Powered by dual independent Android or Windows motherboards, our kiosks allow you to run different content on each side simultaneously. Display an interactive wayfinding map on the front while running high-definition video advertisements on the back.
Responsive 10-Point Touch: Equipped with highly sensitive Projected Capacitive (PCAP) or Infrared (IR) touch technology, providing a seamless and intuitive interactive experience for users navigating directories or browsing digital catalogs.
Ultra-Slim & Elegant Profile: Despite housing two commercial-grade screens, the enclosure maintains a remarkable 110mm ultra-slim thickness. Crafted from durable aluminum and cold-rolled steel, the kiosk offers a sophisticated aesthetic that complements any high-end indoor environment.
Superior Thermal Management: The dual-screen setup generates significant heat. Our proprietary intelligent cooling system ensures efficient heat dissipation, preventing LCD image retention and ensuring consistent performance in demanding environments.

Your Reliable OEM/ODM Kiosk Partner

Do not settle for generic consumer displays in your critical commercial deployments. Partner directly with a leading double sided touch screen kiosk factory. Rcstars offers comprehensive customization services, including custom brand colors (like our signature High-Gloss White or Matte Black), integrated peripherals (such as NFC readers or HD cameras), and specific OS configurations to match your CMS requirements.

Contact our engineering sales team today to request detailed mechanical specifications, discuss your project integration needs, and secure highly competitive wholesale pricing for your digital signage network.

Details on Display

500–3500 nits High Brightness

Wide brightness range ensures clear visibility across indoor, semi-outdoor, and high-ambient-light conditions.

32–65″ Flexible Size Range

Multiple size options from 32 to 65 inches, adaptable to diverse commercial environments and installation needs.

IR / Capacitive Touch Options

Supports infrared and capacitive touch technologies for precise, responsive, and flexible interaction.

24/7 Continuous Operation

Engineered for uninterrupted performance, ensuring reliable operation around the clock.

Double-Sided Display

Dual-screen configuration maximizes visibility and exposure from both directions in high-traffic areas.

Rear Open Door Design

Back-side panel opens outward, enabling expanded viewing and enhanced display presence from different angles.

Visibility · Performance

Ultra
Brightness Control.

High-brightness performance ensures clear visibility under various lighting conditions, from indoor environments to semi-outdoor spaces with strong ambient light.

500–3500 nits

Wide brightness range

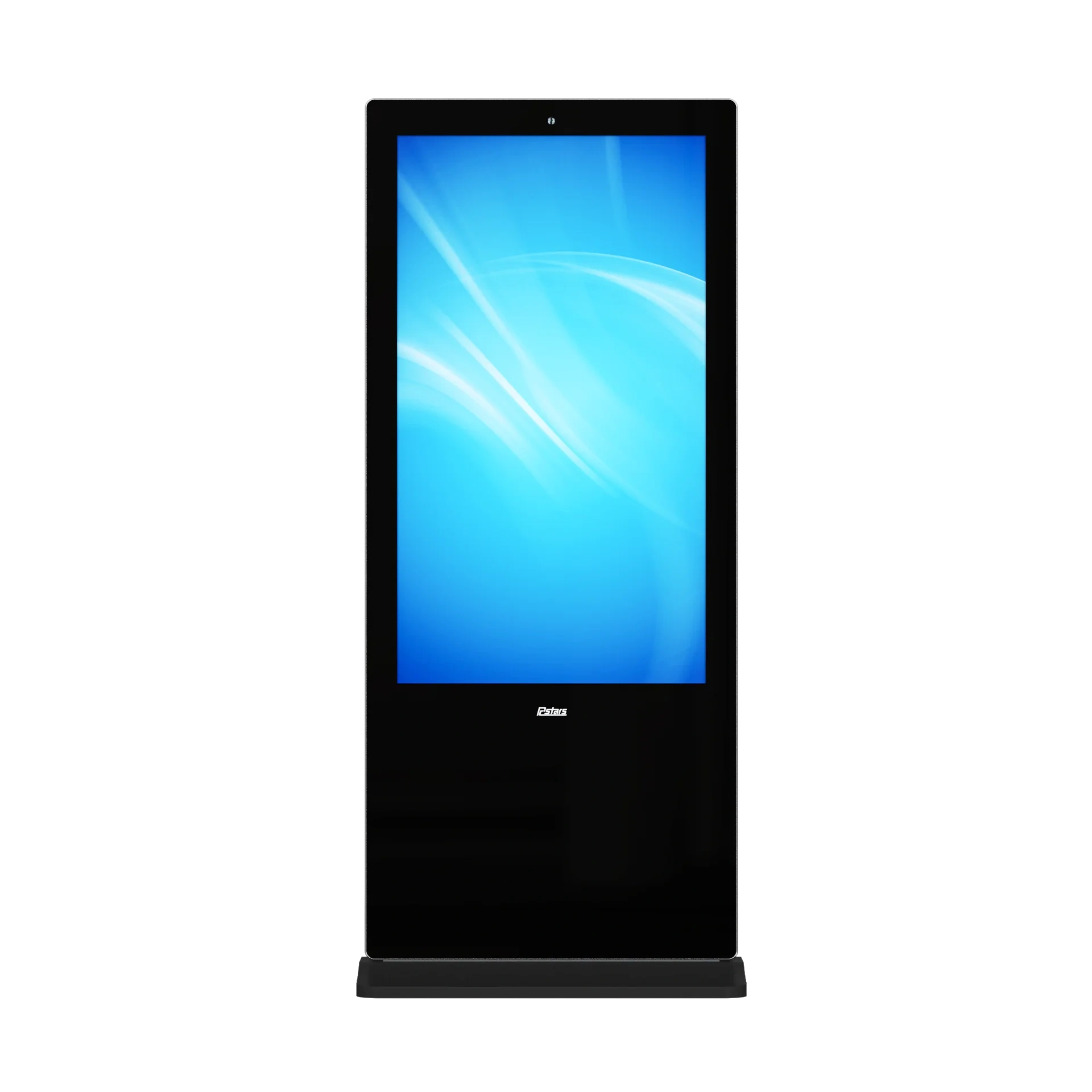

Matte Black

Exposure · Engagement

Dual
Display Visibility.

Double-sided display design maximizes exposure by delivering content on both directions, increasing visibility in high-traffic environments.

Dual Screen

Two-way visibility

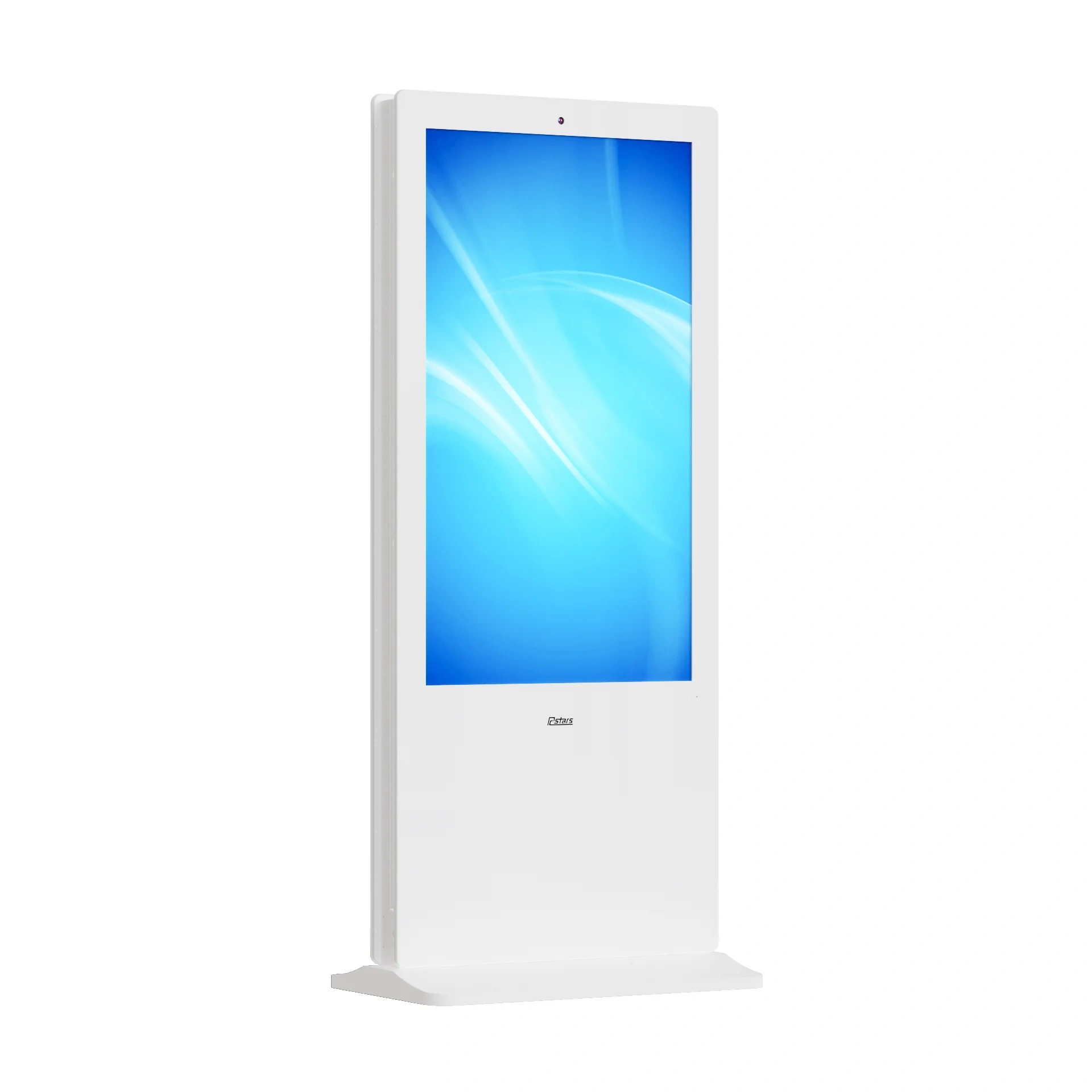

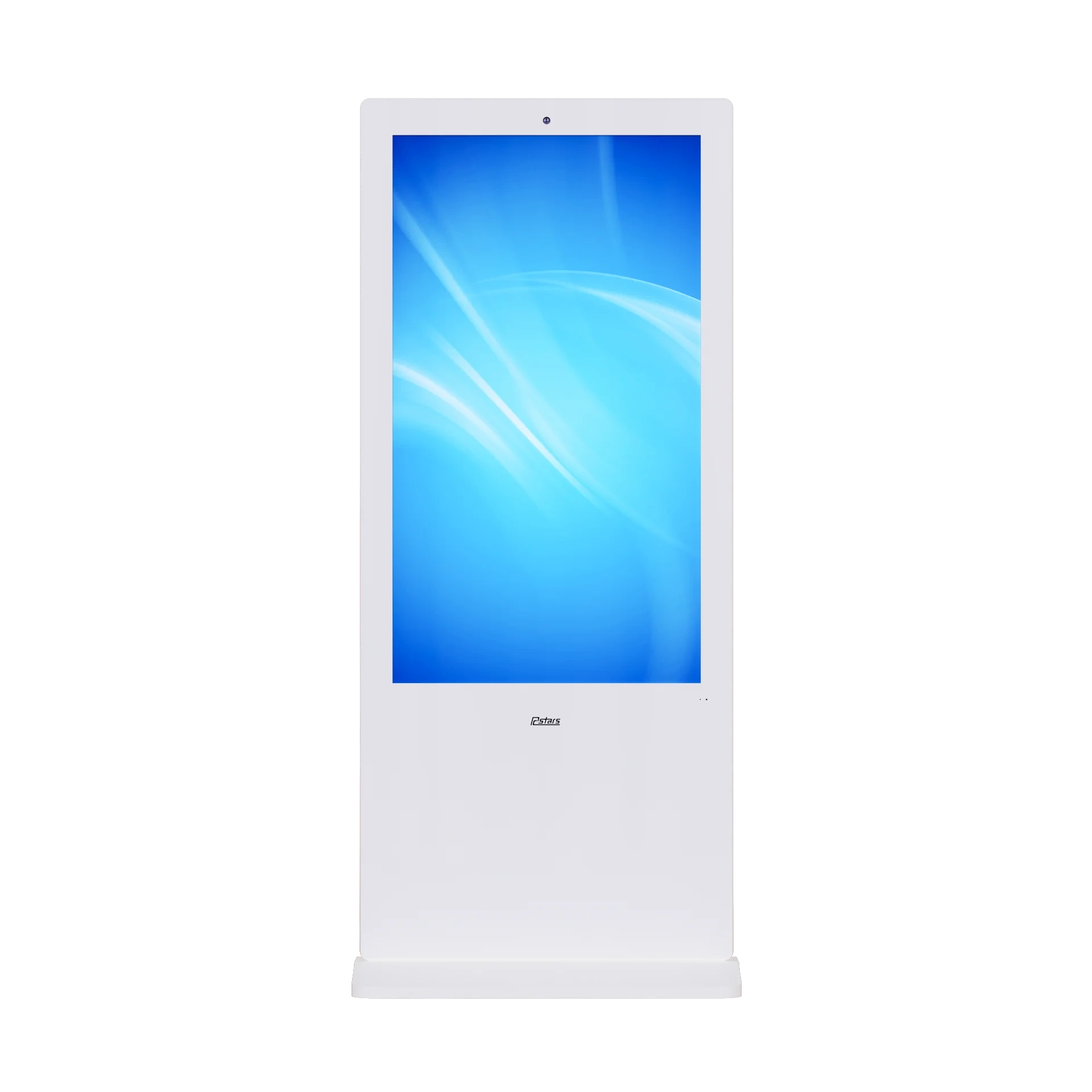

High-Gloss White

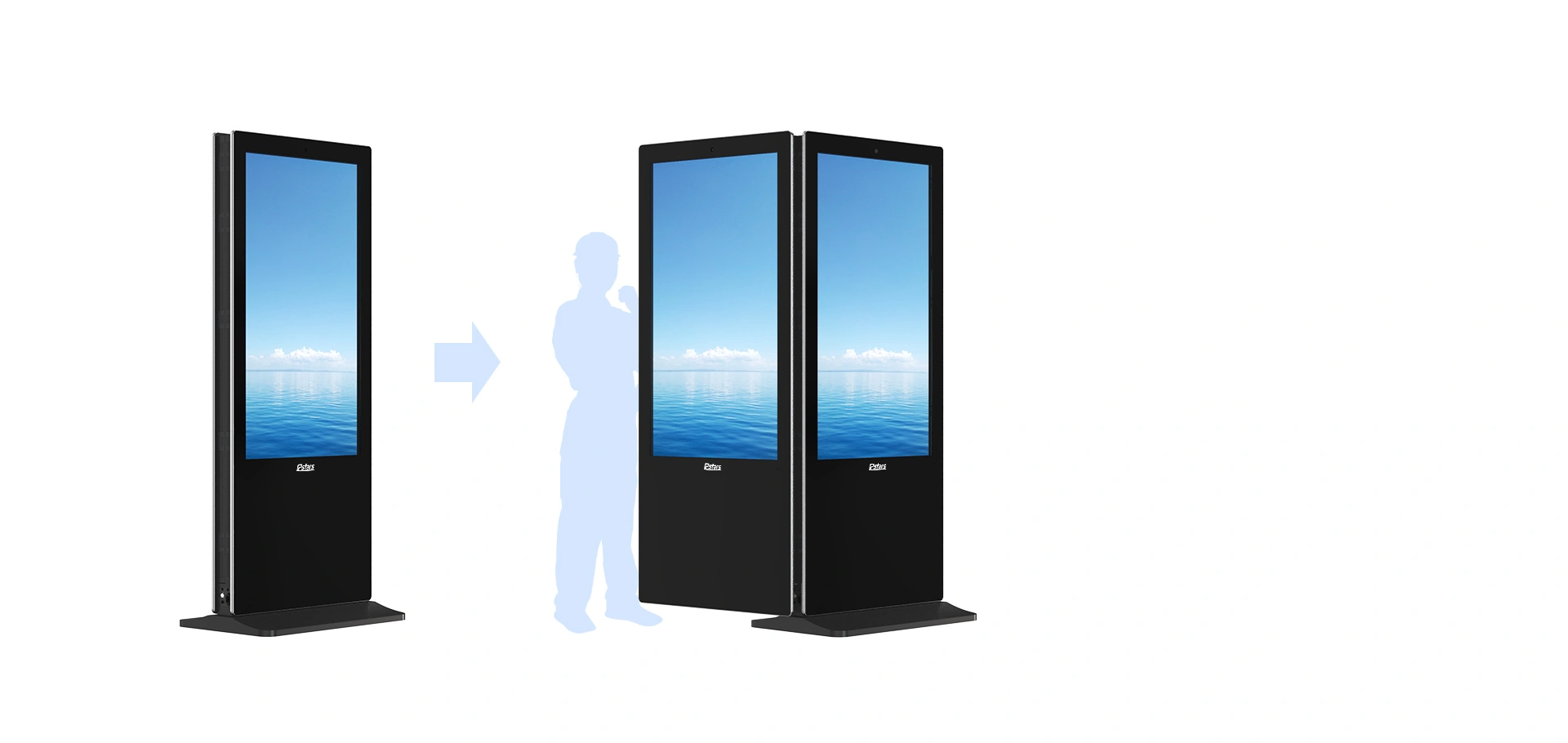

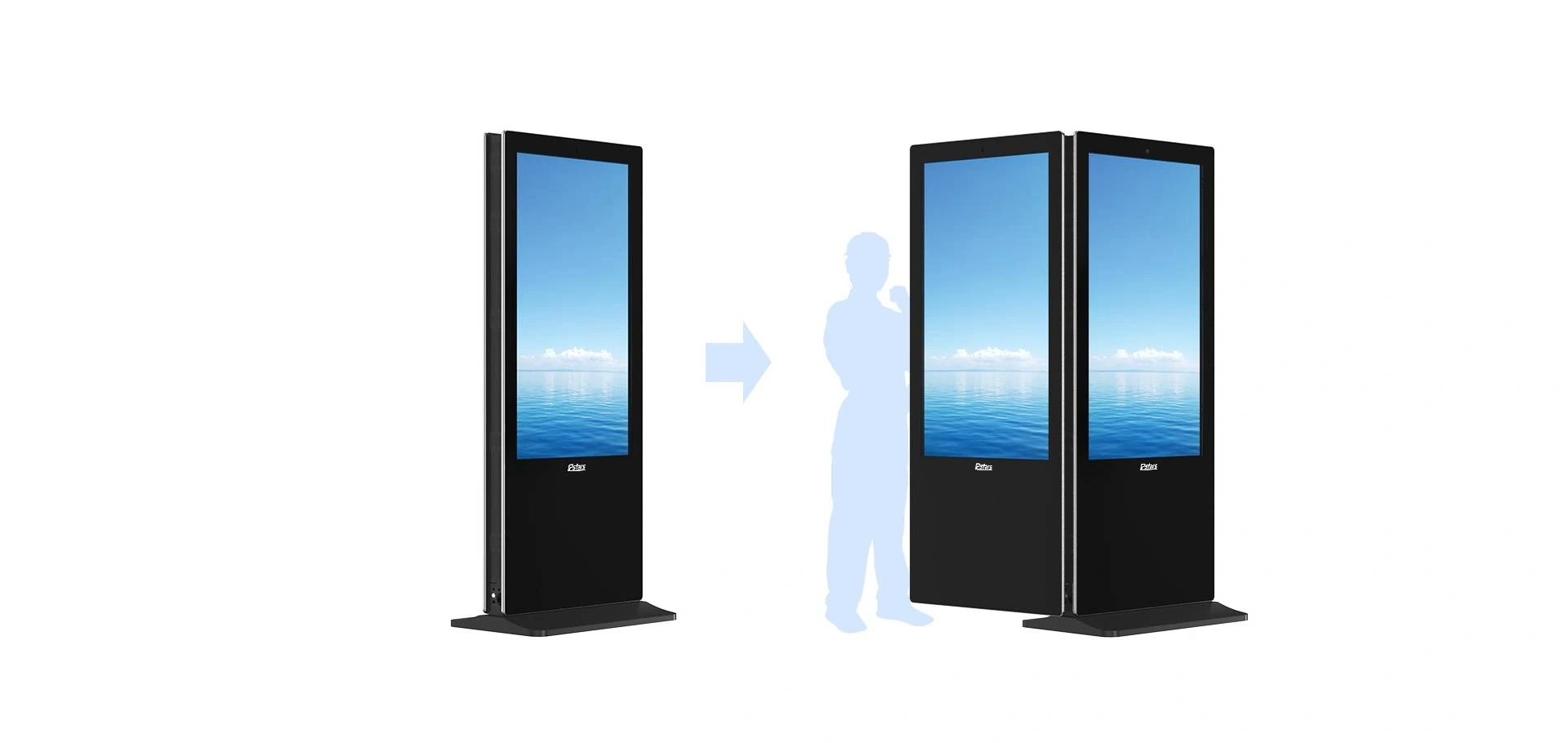

32-inch-65-inch-professional-free-standing-double-sided-digital-kiosk-02

Flexible · Open Structure

Expandable
Viewing
Design.

Door-opening structure allows the screen to expand outward, creating a wider viewing angle and more dynamic display presentation.

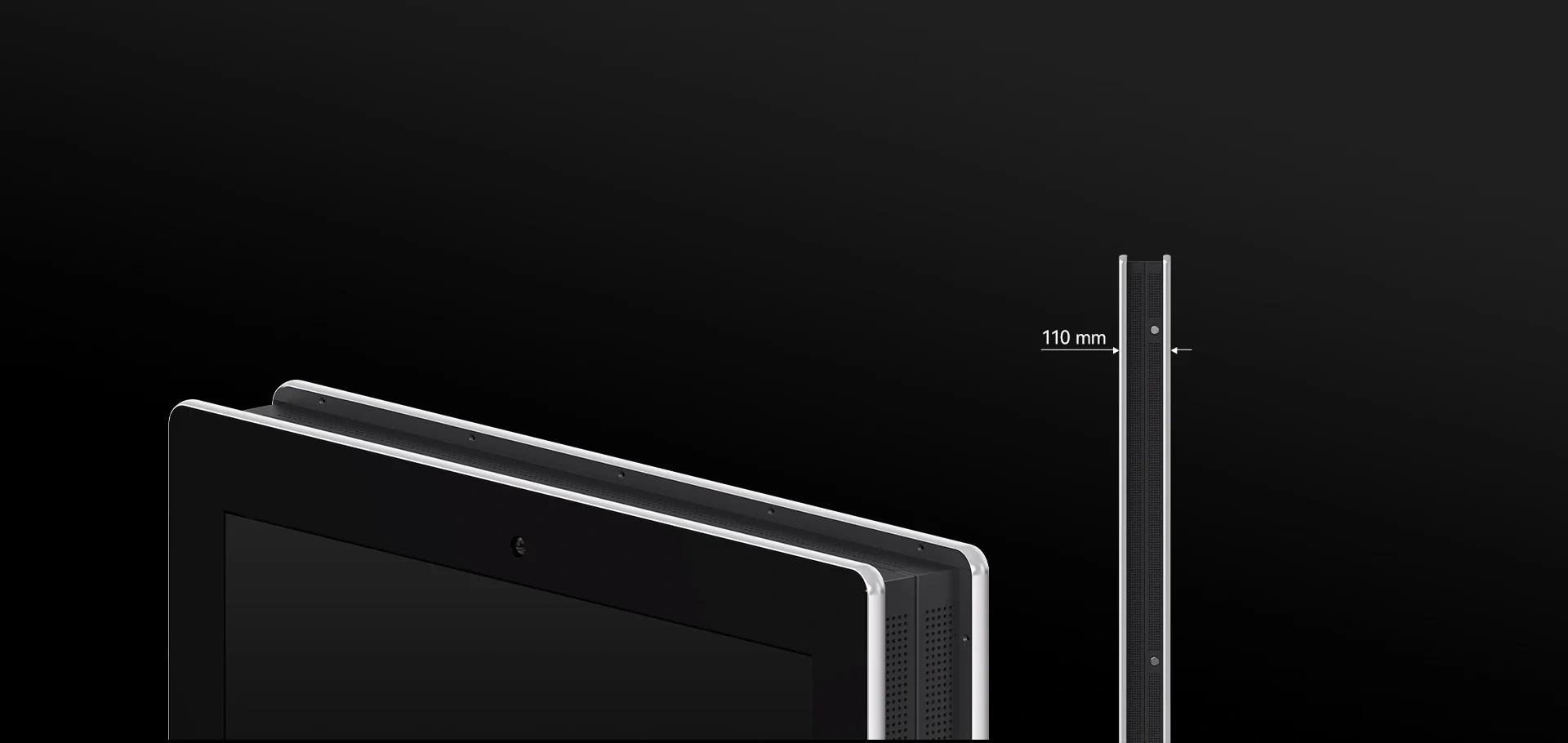

32-inch-65-inch-professional-free-standing-double-sided-digital-kiosk-04

Slim Dual-Screen
Aesthetics.

Ultra-thin dual-sided displays with refined aluminum frames on both sides, delivering a sleek, modern appearance for high-end commercial spaces.

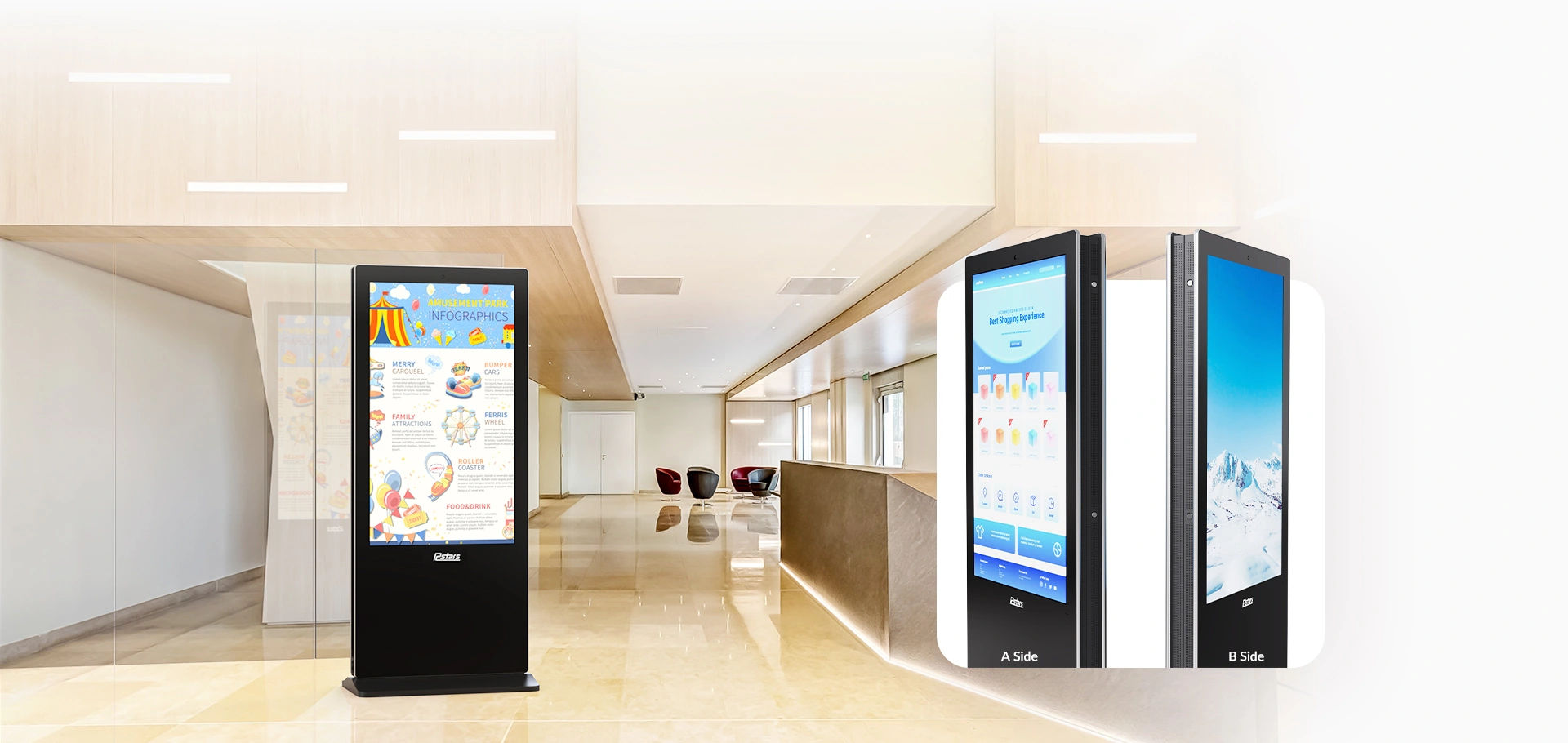

32-inch-65-inch-professional-free-standing-double-sided-digital-kiosk-03

Content · Brightness Control

Dual-Sided
Display
Flexibility.

Supports same or different content on both sides, with independent brightness adjustment to match various environments and maximize display effectiveness.

System & Modules

Multiple Options,
One Platform.

Versatile System Architecture

Four operating system options ensure seamless integration across diverse commercial environments.

Flexible Feature Configuration

Multiple functional options including IR or capacitive touch, dual color finishes, mobility rollers, and integrated camera modules.

32-inch-65-inch-professional-free-standing-double-sided-digital-kiosk-05

Versatile System Architecture

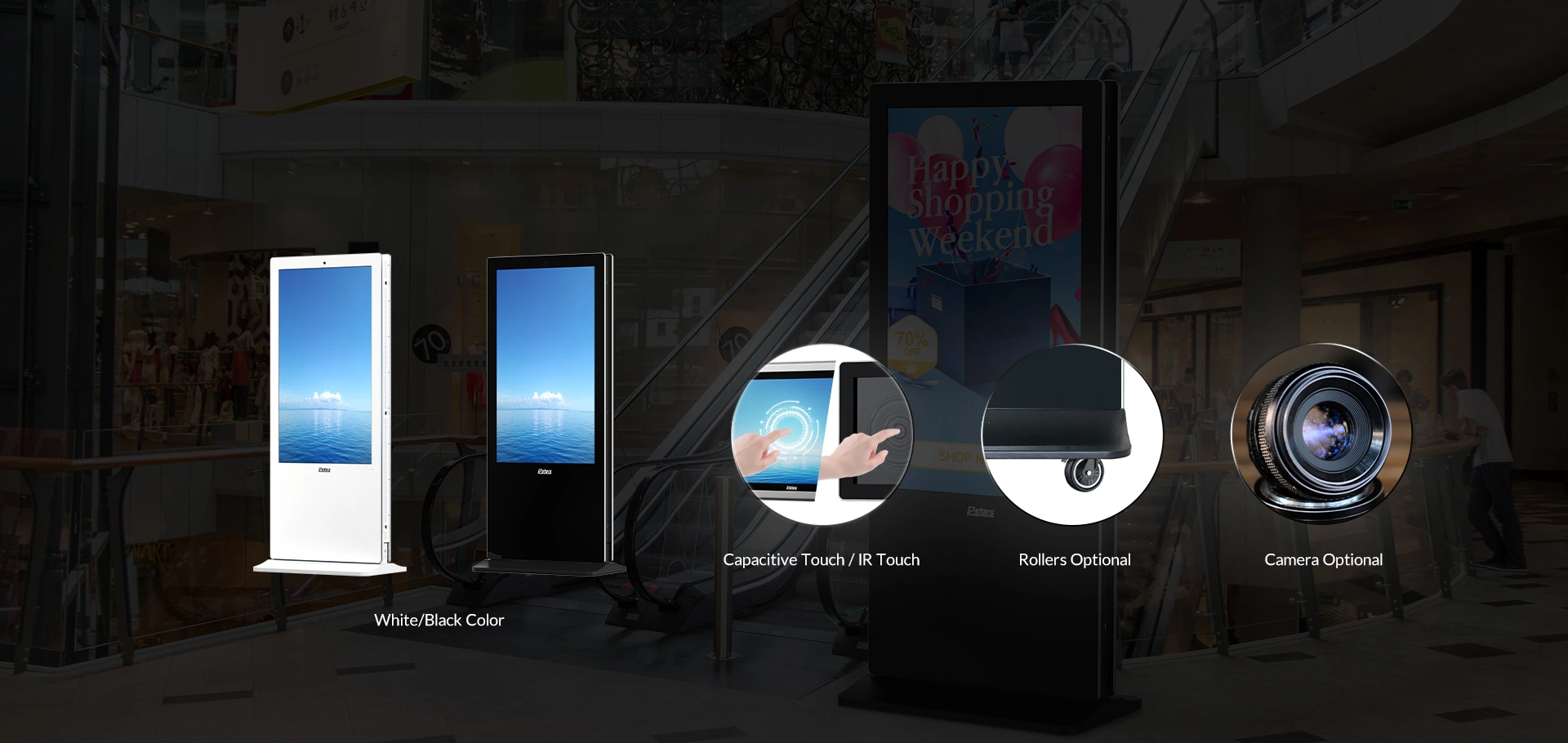

32-inch-65-inch-professional-free-standing-double-sided-digital-kiosk-06

Flexible Feature Configuration

Finish Selection

Choose Your
Colorway

Minimalist gradient finishes — crafted for premium commercial display environments.

Choose Your
Colorway

Minimalist gradient finishes — crafted for premium commercial display environments.

Matte Black

Technical Data

Full Specification

32″

43″

49″

55″

65″

32″

Panel 32″
Resolution 1920×1080	Aspect Ratio 16:9
Pixel Pitch 0.36375×0.36375 mm	Viewing Angle 89° / 89° / 89° / 89°
Brightness 500 cd/m²	Contrast Ratio 1200:1
Display Area 698.4×392.85 mm	Panel Size 725.2×422.7×22.4 mm

43″

Panel 43″
Resolution 1920×1080	Aspect Ratio 16:9
Pixel Pitch 0.4903×0.4903 mm	Viewing Angle 89° / 89° / 89° / 89°
Brightness 500 cd/m²	Contrast Ratio 1200:1
Display Area 941.184×529.416 mm	Panel Size 969×563.9×26 mm

49″

Panel 49″
Resolution 1920×1080	Aspect Ratio 16:9
Pixel Pitch 0.27963×0.27963 mm	Viewing Angle 89° / 89° / 89° / 89°
Brightness 500 cd/m²	Contrast Ratio 1200:1
Display Area 1073.78×604 mm	Panel Size 109.5×62.9×29.6 mm

55″

Panel 55″
Resolution 1920×1080	Aspect Ratio 16:9
Pixel Pitch 0.63×0.63 mm	Viewing Angle 89° / 89° / 89° / 89°
Brightness 500 cd/m²	Contrast Ratio 1400:1
Display Area 1209.6×680.4 mm	Panel Size 1244.6×720.9×27 mm

65″

Panel 65″
Resolution 3840 × 2160	Aspect Ratio 16:9
Pixel Pitch 0.372×0.372 mm	Viewing Angle 89° / 89° / 89° / 89°
Brightness 500 cd/m²	Contrast Ratio 1400:1
Display Area 1428.48×803.52 mm	Panel Size 1459.2×830×16 mm
