55" Vertical Digital Signage Display | Floor Standing LCD Screen | Rcstars

55" slim vertical digital signage display for retail aisles, hotel lobbies & corridors — all metal body, 1920×1080 FHD, Window/Android, 24/7 rated. OEM/ODM from Rcstars China factory.

· RCS-550LB

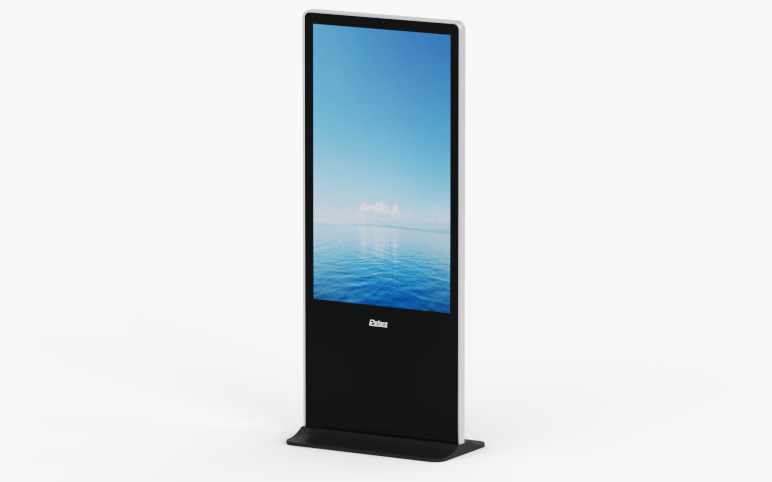

55″ Freestanding Digital Display

Rcstars’s LB Freestanding digital signage built for premium commercial environments.

  • Structure: Ultra-slim freestanding all-metal cabinet with explosion-proof tempered glass
  • Resolution: 1920 × 1080 Full HD
  • Brightness: 500–2500 nits (optional range)
  • Thickness: 105mm ultra-slim profile for space-efficient installation
  • Color: Matte black / High-gloss white
  • Size Range: 21.5″ – 75″ multi-size options
  • Configuration: Camera module and movable wheels (optional)

Get a Quote Now — Contact our team for pricing, customization options, and project support.

500–3500
nits brightness
Scroll
LB SERIES . Overview

Freestanding Digital Signage with Customizable Options.

Featuring a slim profile, commercial-grade components, and customizable configurations, this display is designed for businesses seeking reliable digital communication solutions.

· 2026

Rcstars Display Technology

Details on Display

Designed for retail and commercial spaces.

Six core capabilities refined through years of commercial deployment — each feature tuned for reliability, adaptability, and visual impact.

Ultra-Slim Metal Body

105 mm profile — precision-machined aluminum frame and metal case designed for premium commercial installations.

High-Brightness Display

500–3500 nits standard — multiple brightness options to suit different needs across various environments.

Tempered Glass Protection

Commercial-grade explosion-proof tempered glass with enhanced impact resistance.

Commercial Grade

Designed for 24/7 operation, the display panels offer up to 70,000 hours of reliable performance in commercial environments.

Built-in Wi-Fi

Dual-band enterprise connectivity for real-time content management across multiple displays.

Modular Design

Modular architecture — cameras and wheels can be flexibly integrated as optional add-ons based on your needs.

Reliable · Placement

Commercial Grade
Built for 24/7 Use

Built for lasting reliability with minimal maintenance requirements.

70,000  Hours Lifespan
Support Long-Term Commercial Operation

Matte Black
Matte Black
Construction · Durability

Clear Visibility
from Multiple Positions

Ensures clear and consistent visibility from different viewing positions.

178° Wide Viewing Angle
Consistent image quality across a wide viewing range.
High-Gloss White
High-Gloss White
5-LB_Details

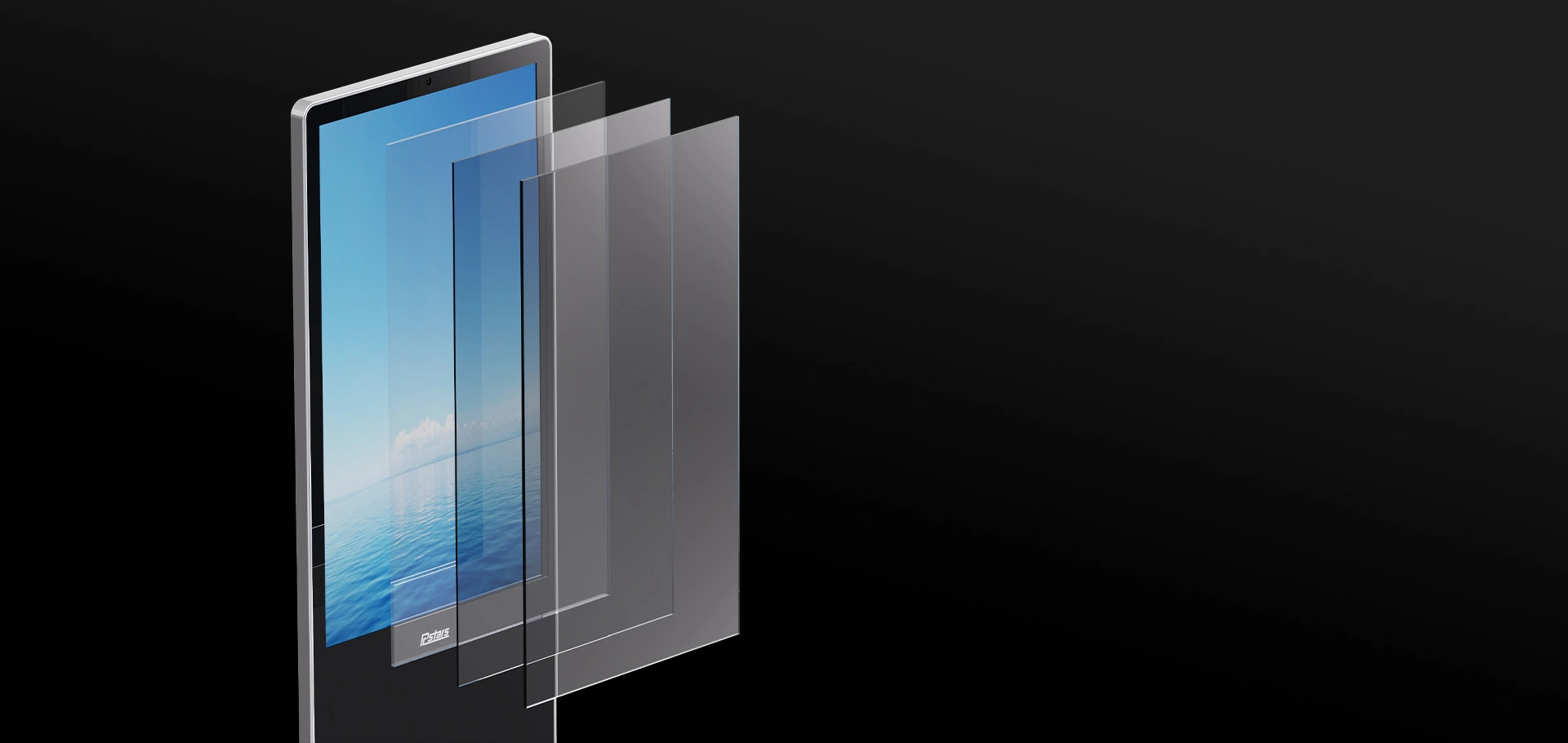

Commercial-Grade
Tempered Glass

Explosion-proof tempered glass — enhanced durability and impact resistance for safer, more reliable operation.

6-LB_Details

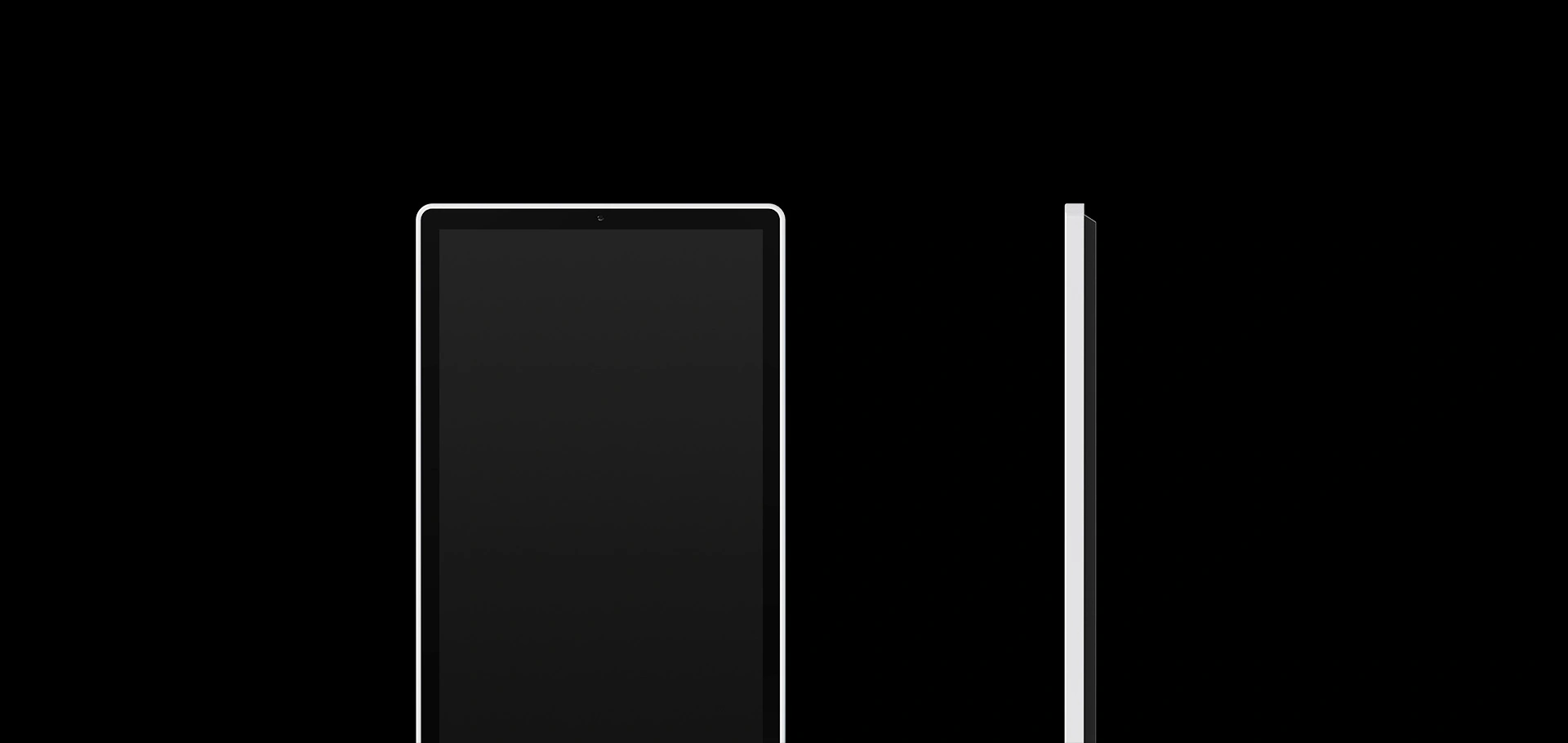

Form Factor

105 mm.
Ultra-Slim
All-Metal.

Refined aluminum frame and metal case with a silhouette slim enough to complement any architectural setting. Strong enough for demanding commercial use.

Touch Interface
Seamless Integration

Refined Design &
Flexible Custom Options

Freestanding design with an ultra-slim body blends effortlessly into any environment while delivering crisp, high-definition visuals and flexible interaction options.

24/7 Continuous Operation Support

Up to 70,000 hours stable performance life

Optional Touch Technology

Capacitive or infrared touch available to suit different interaction needs.

Full HD Resolution

Sharp, vivid visuals ensure every detail is clearly presented.

Expandable Features

Optional wheels for mobility and built-in camera for enhanced functionality.
System & Modules

Multiple Options,
One Platform.

four systems for your display

Four Operating System Options

Supports multiple system configurations with Android, Windows, Monitor Modes , plug-and-play operation to meet different commercial display requirements.

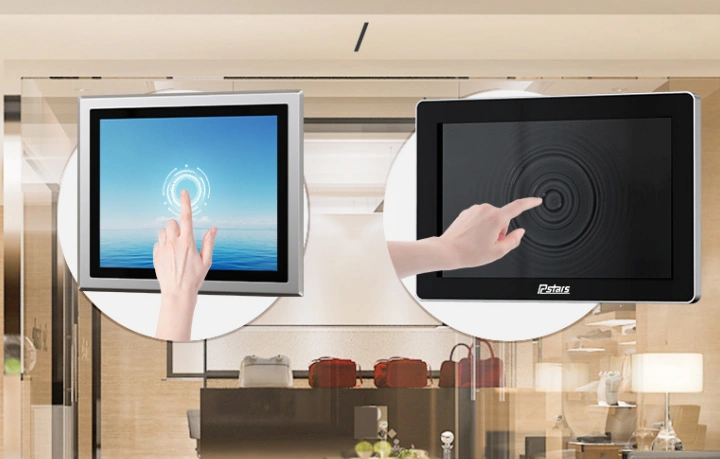

capacitive touch or IR touch of LB standing digital display

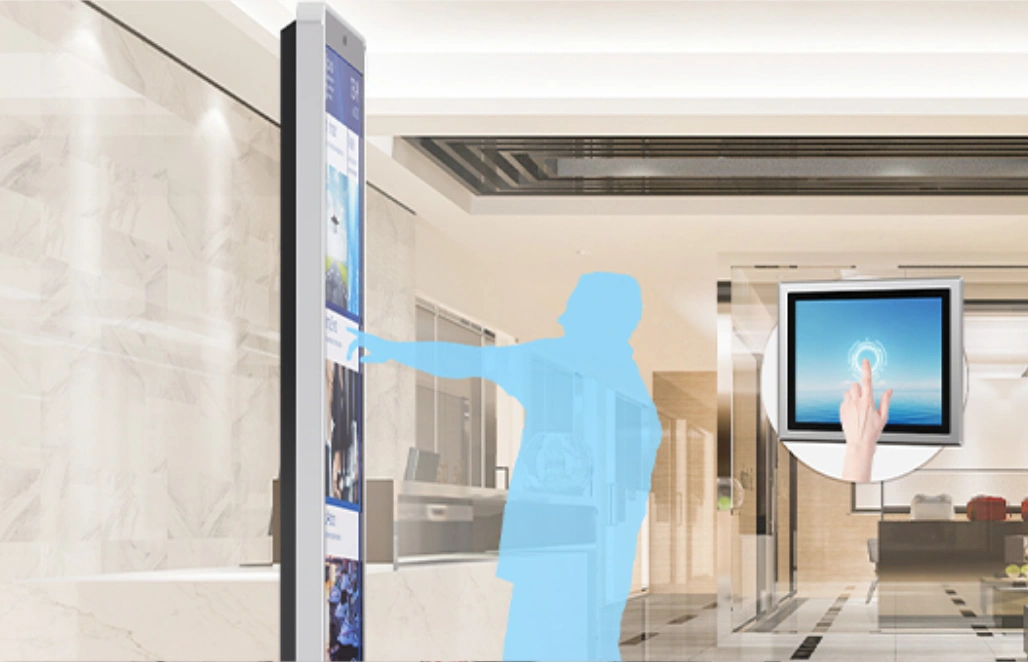

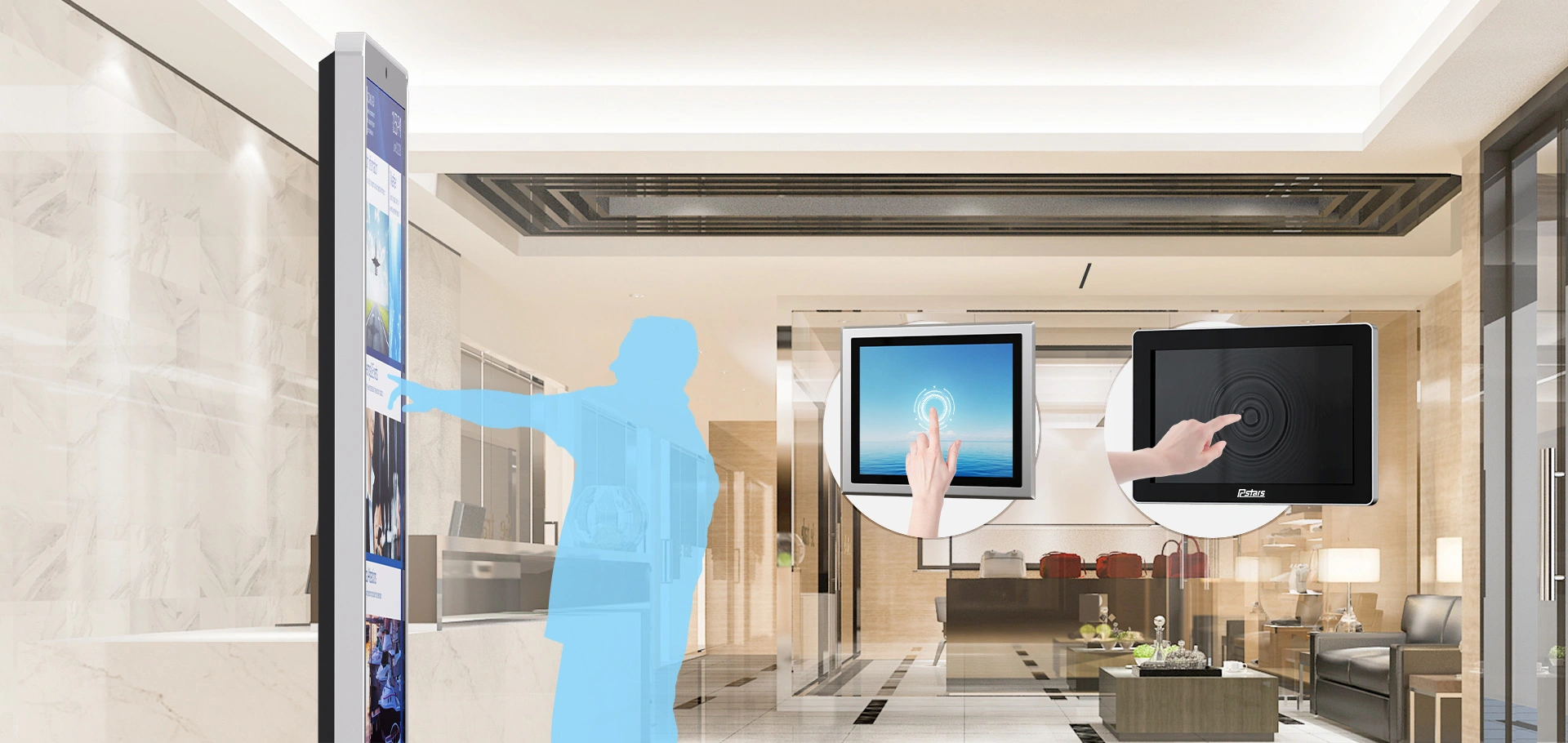

Refined Touch Interaction

Capacitive or infrared touch delivers precise, responsive control for professional use.

details4

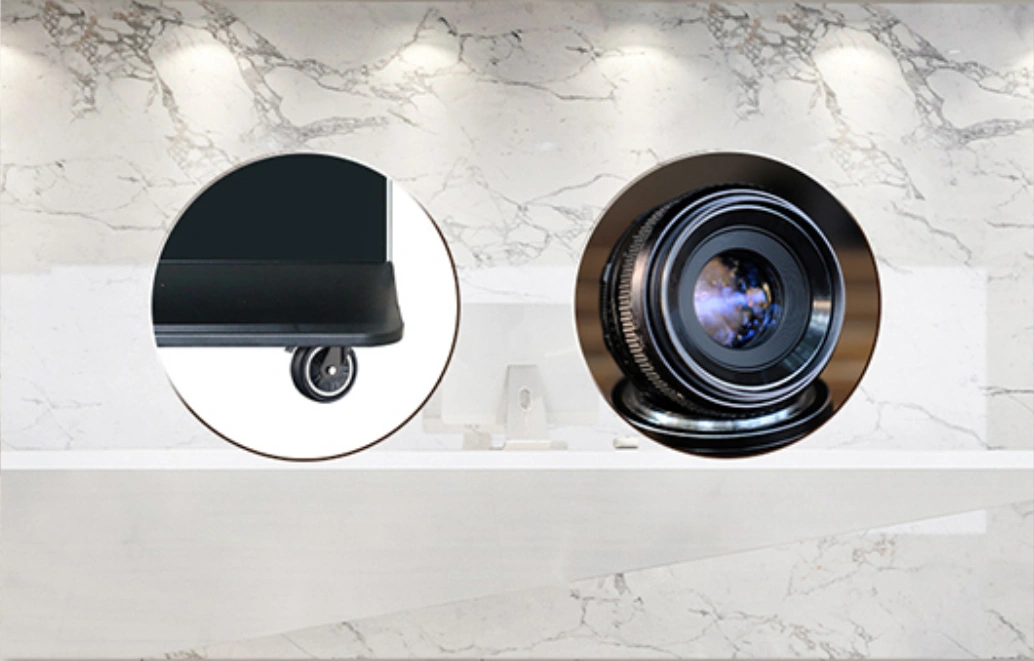

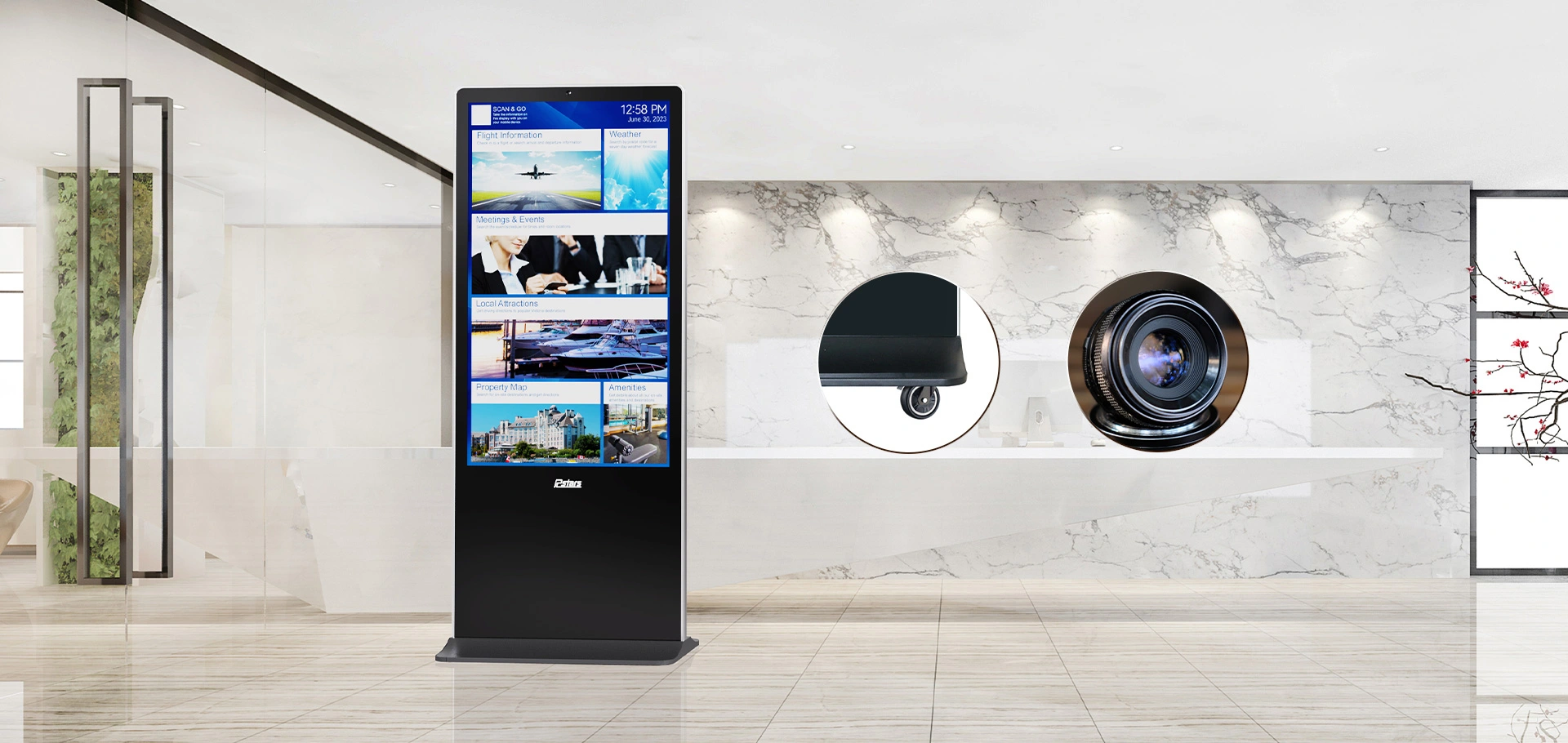

Expandable Functions

Optional wheels and camera extend mobility and interaction without compromising aesthetics.

9-LB_Details

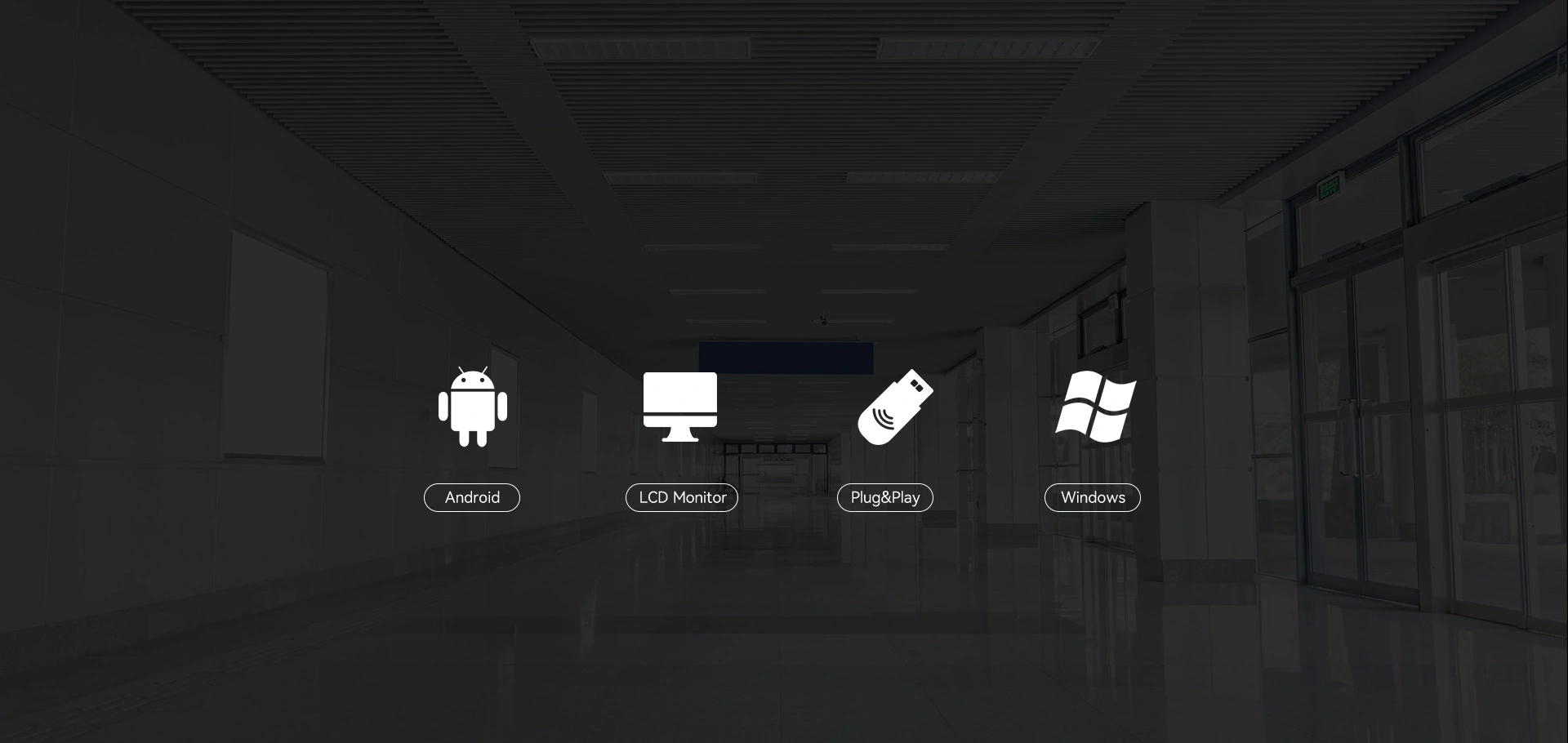

Four Operating System Options
10-LB_Details
Refined Touch Interaction
11-LB_Details
Expandable Functions
Finish Selection

Choose Your
Colorway

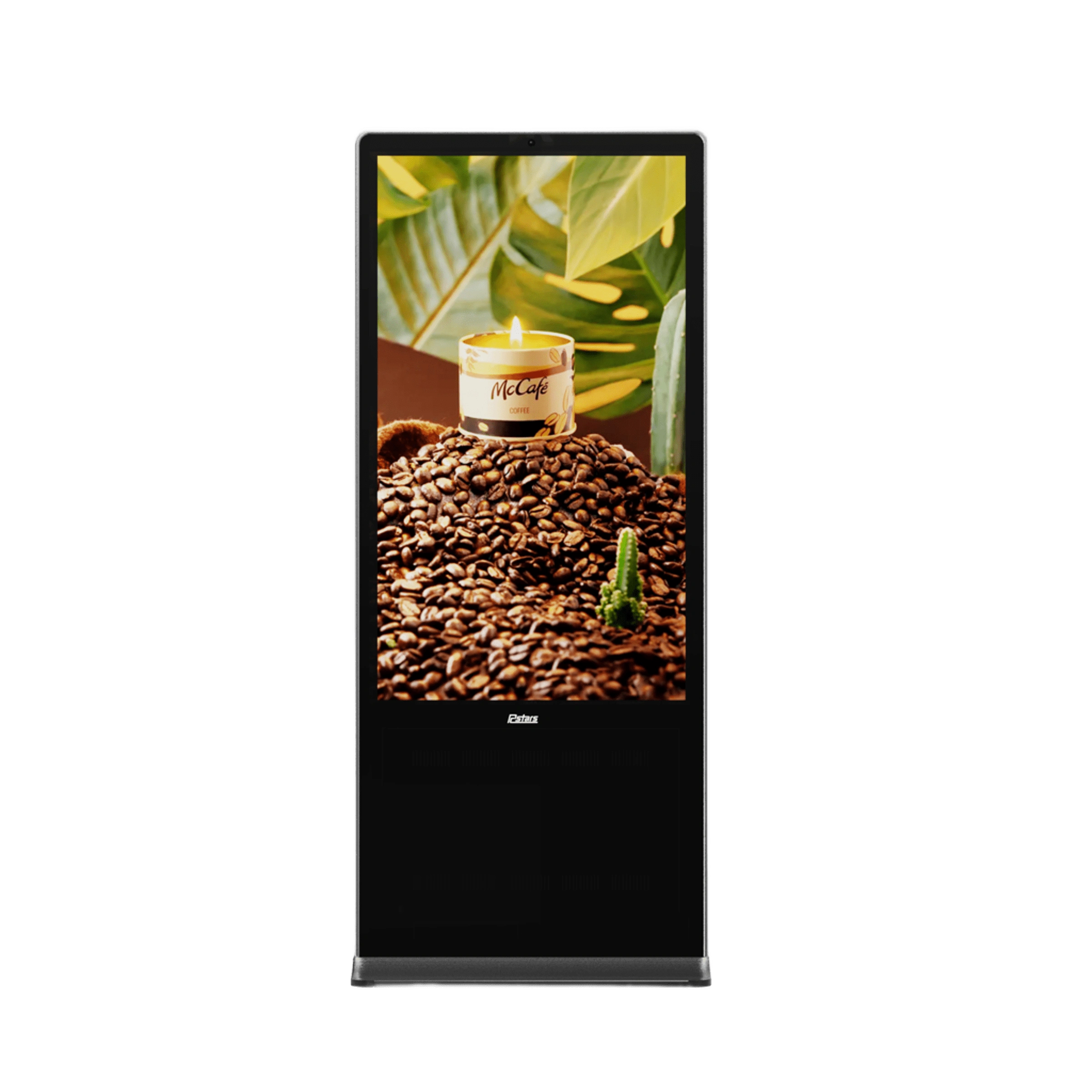

Minimalist black finish — crafted for a sleek, professional commercial display presence.

Choose Your
Colorway

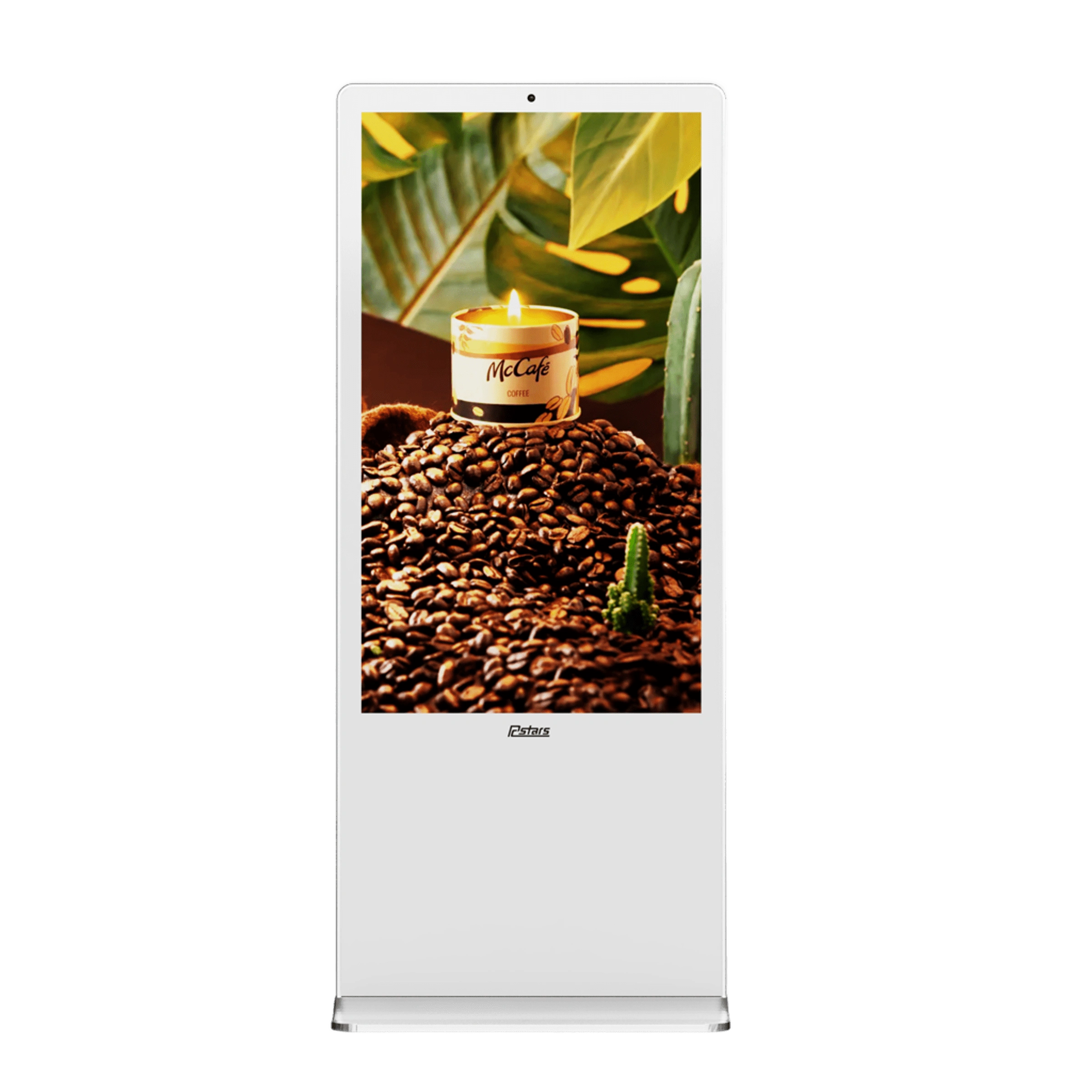

Minimalist white finish — designed for a clean, modern commercial display aesthetic.

Matte Black
High-Gloss White
Matte Black
High-Gloss White
Use Scenarios

Built for every
commercial space.

12-application sence3

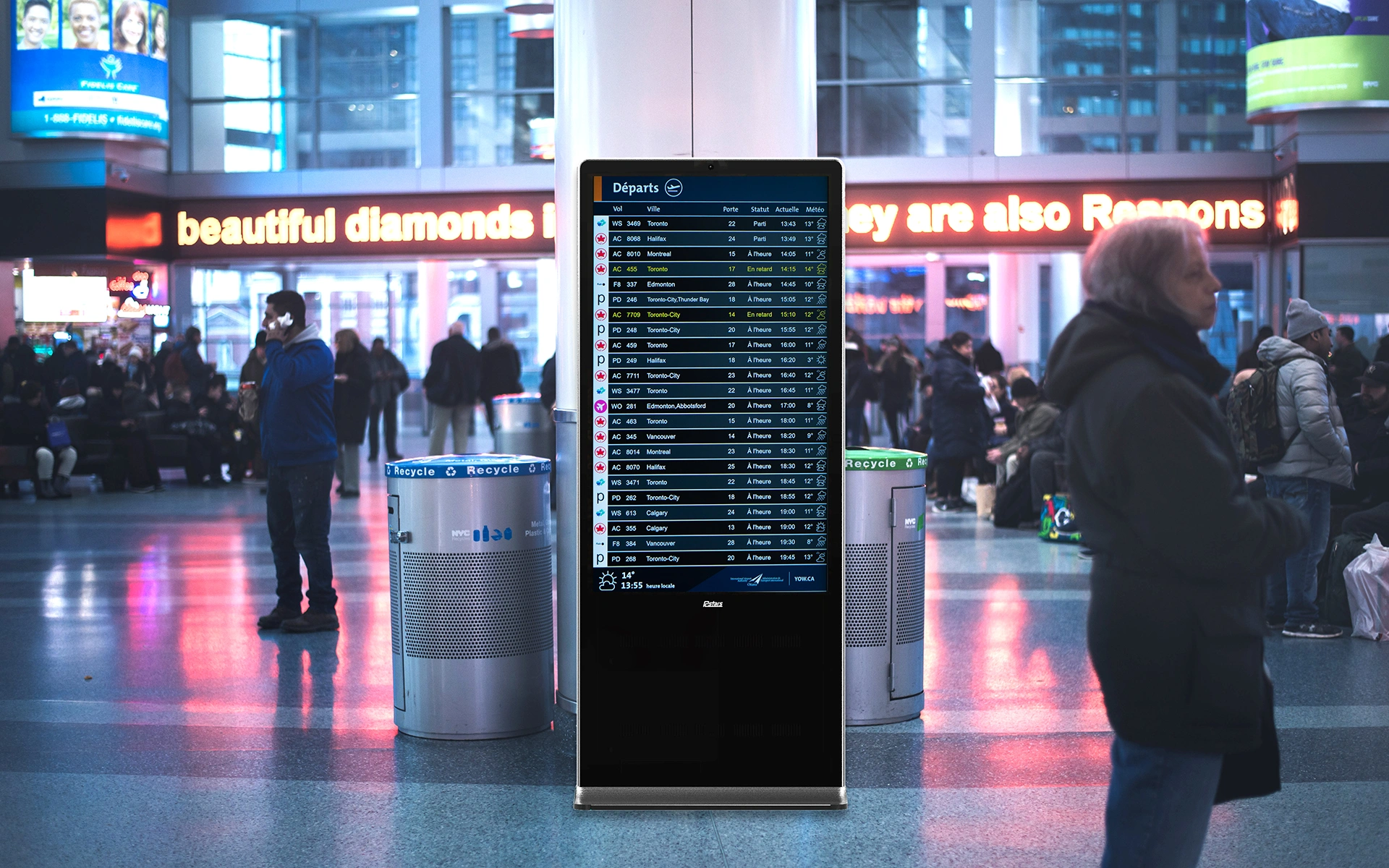

Airport

Provide clear, real-time flight information to keep passengers informed and on schedule.

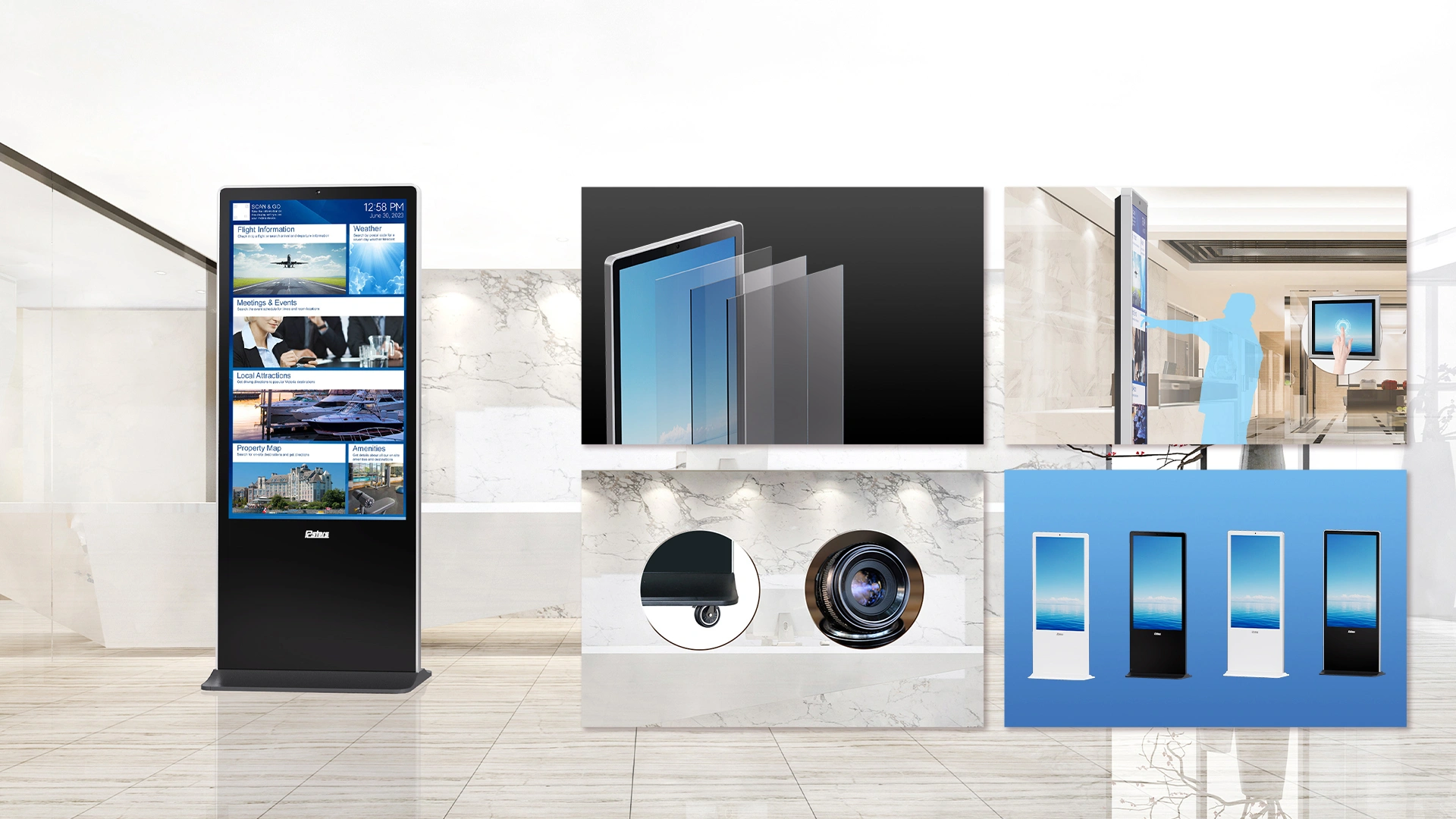

12-application sence2

Corridor

Transform transitional spaces into dynamic channels for information and promotion.

RCS-550LB-use scenario

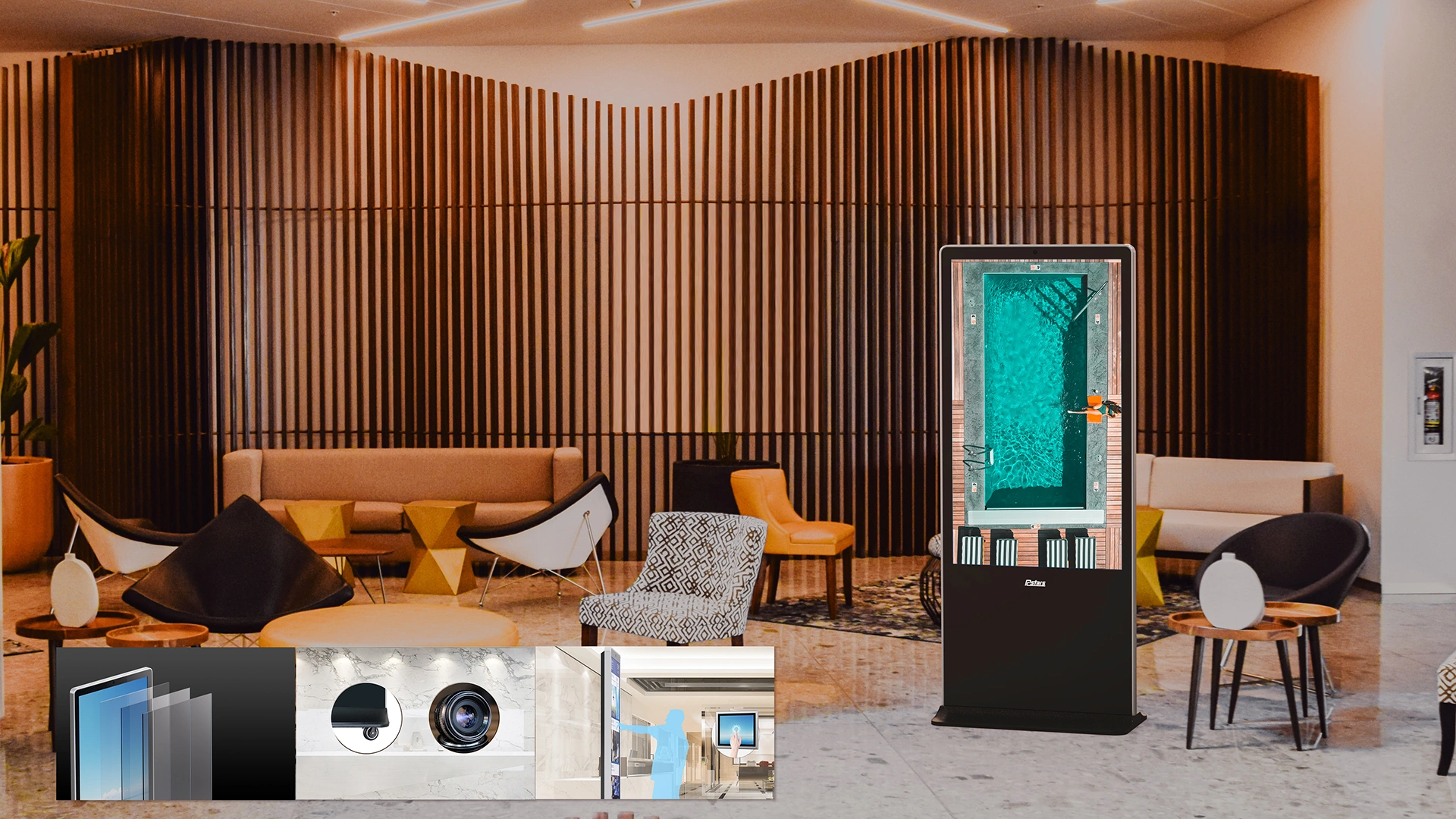

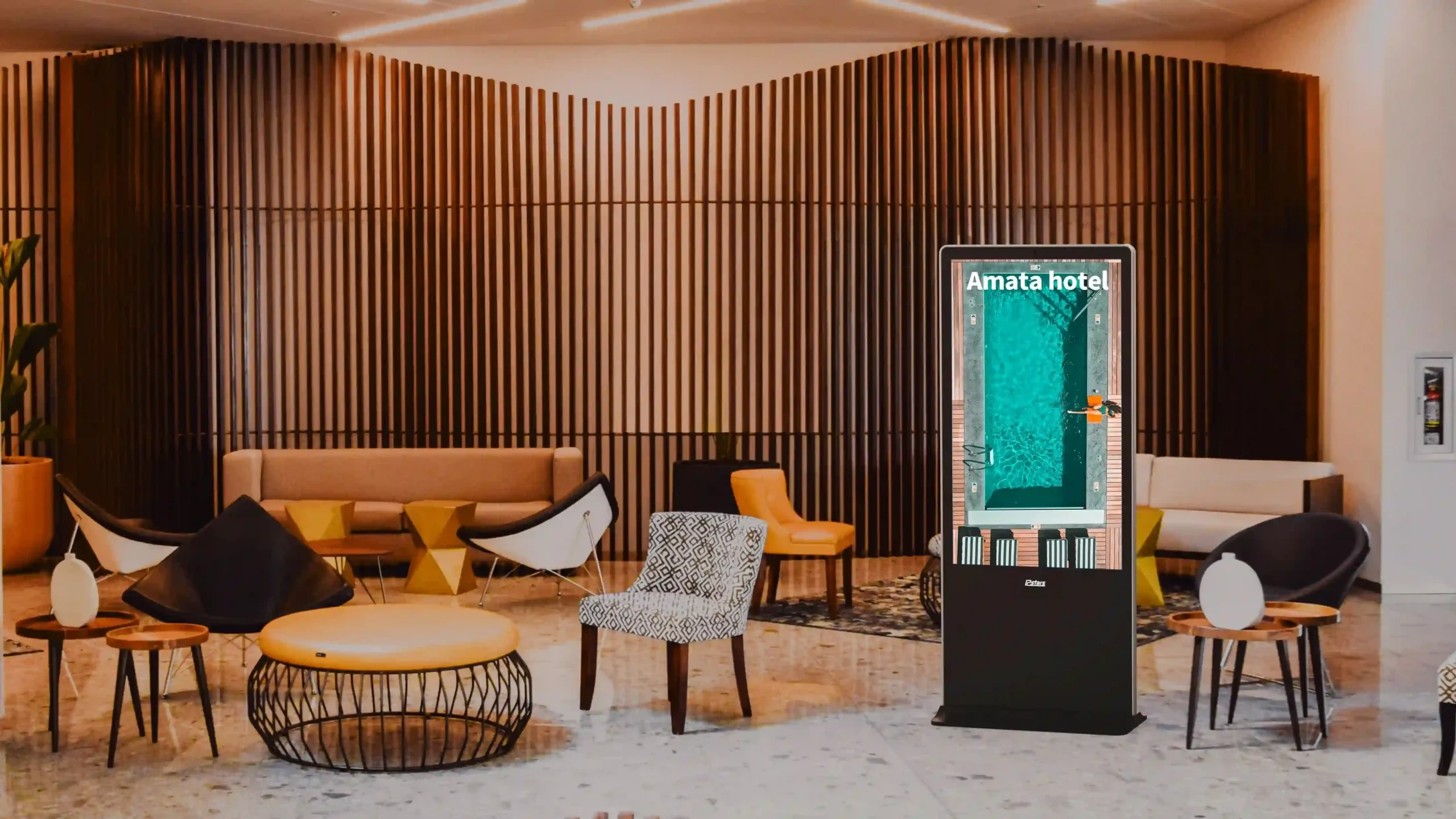

Lobby

A visual focal point that welcomes visitors and defines brand presence.

Technical Data

Full Specification

Panel 21.5″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.24795×0.24795 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1000:1
Display Area
476.064×267.786 mm
Panel Size
495.6×292.2×10.7 mm
Panel 23.8″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.2745×0.2745 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1000:1
Display Area
527.04×296.46 mm
Panel Size
543×317.4×11.6 mm
Panel 27″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.31125×0.31125 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1000:1
Display Area
597.888×336.312 mm
Panel Size
630×368.2×11.8 mm
Panel 32″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.36375×0.36375 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1400:1
Display Area
698.4×392.85 mm
Panel Size
725.2×422.7×22.4 mm
Panel49″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.27963×0.27963 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1200:1
Display Area
1073.78×604 mm
Panel Size
109.5×62.9×29.6 mm



Panel 55″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.63 × 0.63 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1400:1
Display Area
1209.6 × 680.4 mm
Panel Size
1244.6 × 720.9 × 27 mm
Panel 65″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.372×0.372 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1400:1
Display Area
1428.48×803.52mm
Panel Size
1459.2×830×16 mm
Panel 75″
Resolution
1920 × 1080
Aspect Ratio
16:9
Pixel Pitch
0.429×0.429 mm
Viewing Angle
89° / 89° / 89° / 89°
Brightness
500 cd/m²
Contrast Ratio
1200:1
Display Area
1649.66×927.936 mm
Panel Size
1675.2×953.6×11.9 mm
OEM · ODM

Rcstars PremiumCustom Services

From mechanical design to advanced feature integration — every aspect of the LB series is customizable for your project.

photo-1497215728101-856f4ea42174 (2)

Future-Ready Modular Design

Based on rich long-term experience in the digital signage industry, Rcstars provides all kinds of ODM/OEM services — from mechanical design to value-added features such as sunlight-readable panels, motion sensors, touch screens, and hot-key control.

  • Logo Design
  • Color Customization
  • Appearance Design
  • Module Design

Appearance Design

Custom colorways, surface finishes, and form-factor modifications to match your brand identity.

Logo & Branding

Full white-label capability — logo engraving, interface customization, and branded packaging.

Module Design

Sunlight-readable panels, motion sensors, capacitive or IR touch, thermal printers, barcode readers.

From Concept to Reality

We turn your ideas into fully realized, ready-to-deploy products tailored to your needs.




Support

Frequently Asked Questions

3-year warranty for high-brightness models and 5-year warranty for standard brightness displays.
