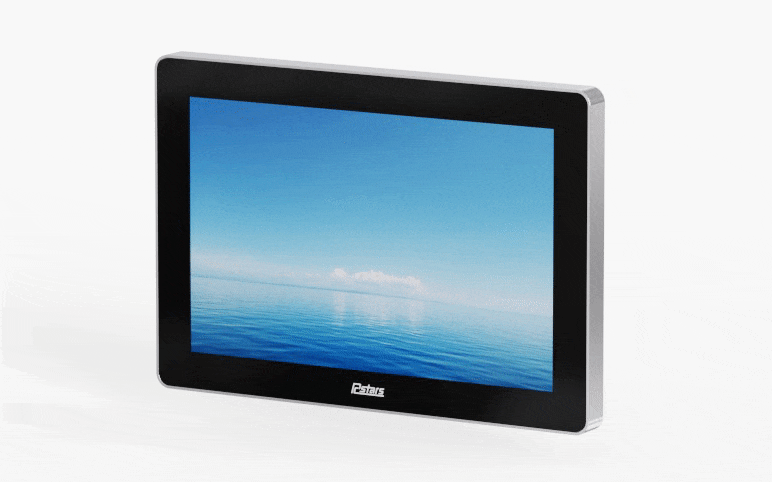

10.1 inch Ultra Thin Wall Mount Display
Popular Iphone rounded corners, silver aluminum profile, back metal, ultra-thin body, elegant design can better attract customers’ attention; wall mounting, a variety of mounting brackets to choose from, horizontal and vertical screen free choice, suitable for use in a variety of occasions; touch screen, wide range of screen brightness, 500-2000 nits.
Optional Panel Size :
10.1 inch-65 inch
Features of 10.1 inch Ultra Thin Wall Mount Display
High Quality Ultra-thin Design Wall mount Display
Combine the latest Android media player technology, stylish design, faster content updates and better visual effects.
Ultra-thin Body, Extremely Narrow Bezel
Attracts customers' attention with exquisite appearance.

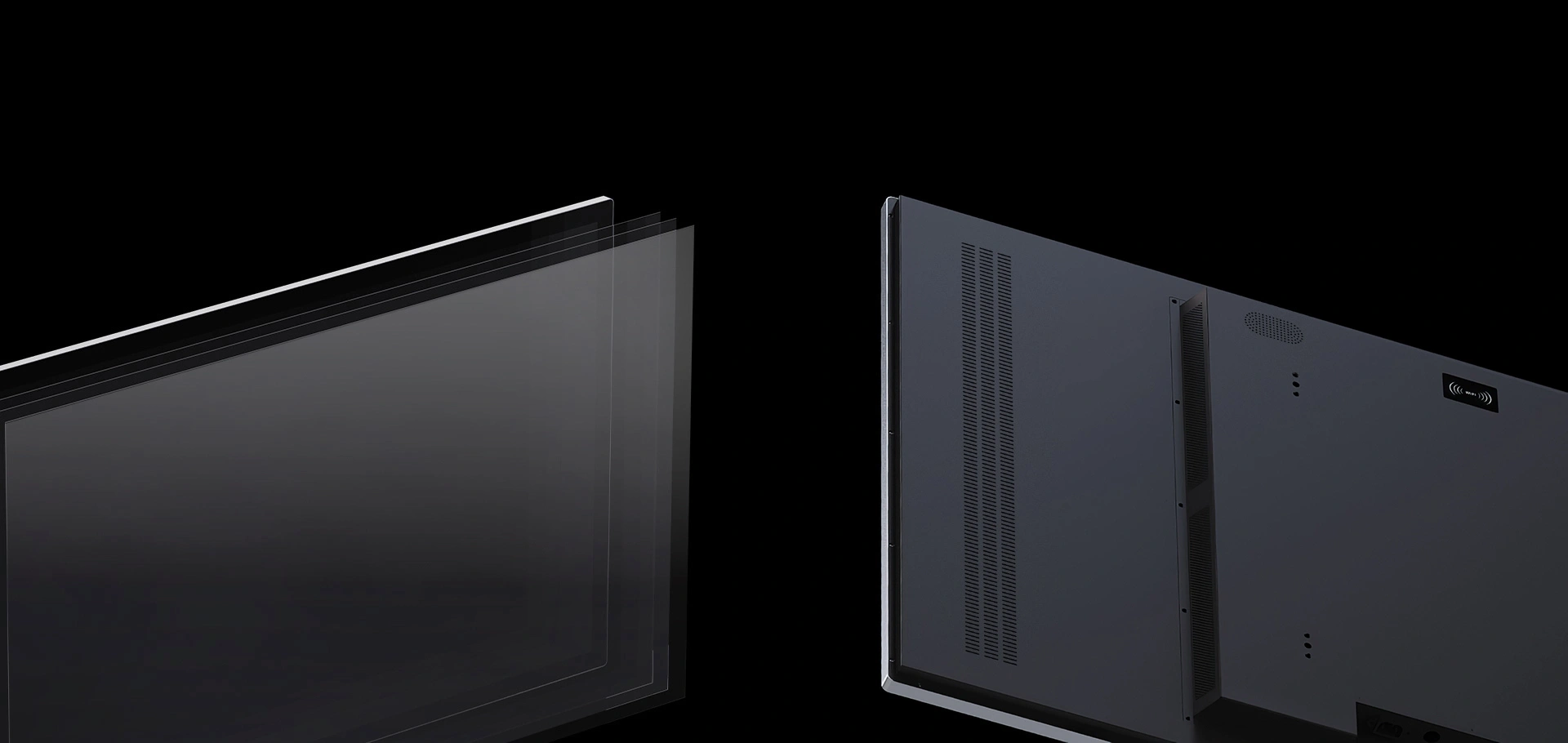

Machine Material
Tempered glass to protect the screen, a unique silver aluminum profile, the back is a better heat dissipation metal material.

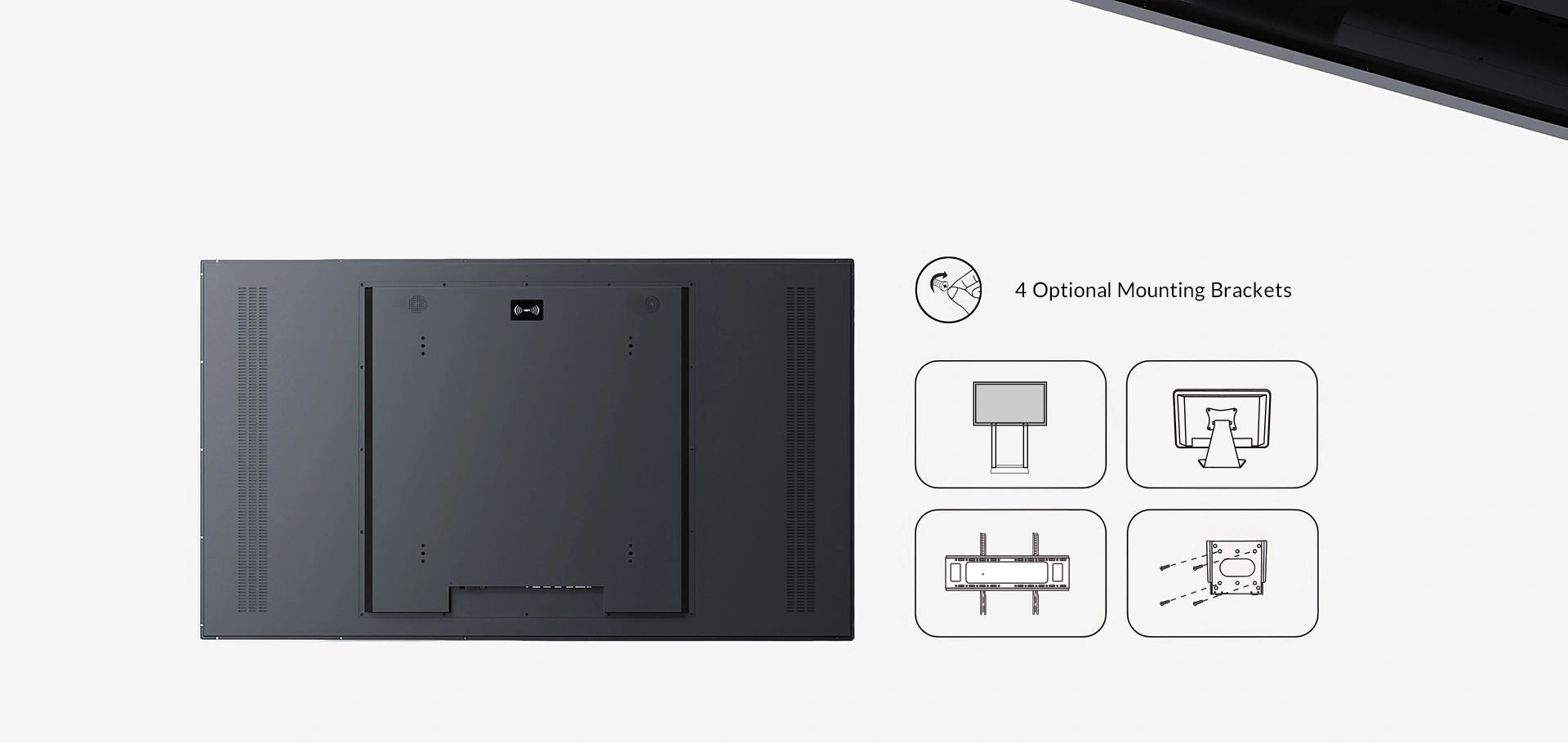

Standard VESA Holes for Easy Installation
Mount the monitor on a stand or wall according to your specific needs
| Model No | RCS-101J | RCS-120J | RCS-150J | RCS-156J | RCS-170J | RCS-185J | RCS-190J | RCS-220J | RCS-240J | RCS-270J | RCS-320J | RCS-430J | RCS-490J | RCS-550J | RCS-650J |
| Max Resolution | 1280×800 | 800×600 | 800×600 | 1024×768 | 1920×1080 | 1366×768 | 1440×900 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Pixel Pitch | 0.1659×0.1659 | 0.264×0.264 | 0.3075×0.3075 | 0.297×0.297 | 0.17925×0.17925 | 0.300×0.300 | 0.2835×0.2835 | 0.24795×0.24795 | 0.2745×0.2745 | 0.31125×0.31125 | 0.36375×0.36375 | 0.4903×0.4903 | 0.27963×0.27963 | 0.63×0.63 | 0.372×0.372 |
| Viewing Angle | 85/85/85/85 | 70/70/50/60 | 70/70/50/60 | 80/80/65/80 | 85/85/85/85 | 89/89/89/89 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Contrast Ratio | 800:1 | 500:1 | 450:1 | 800:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1400:1 | 1200:1 | 1200:1 | 1400:1 | 1400:1 |
| Brightness (cd/m²) | 500 | 500 | 500 | 250 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Display Area (mm) | 216.96×135.60 | 211.2×158.4 | 246×184.5 | 304.128×228.096 | 344.16×193.59 | 409.8×235.4 | 408.24×255.15 | 476.064×267.786 | 572.04×296.46 | 597.888×336.312 | 698.4×392.85 | 941.184×529.416 | 1073.78×604 | 1209.6×680.4 | 1428.48×803.52 |
| Panel Size (mm) | 241.86×161.6×5.2 | 243×181.6×12.2 | 276×209×11 | 326.5×253.5×9.6 | 359.5×223.8×3.2 | 430.4×254.6×10.5 | 428×278×11 | 495.6×292.2×10.7 | 543×317.4×11.6 | 630×368.2×11.8 | 725.2×422.7×22.4 | 969×563.9×26 | 109.5×62.9×29.6 | 1244.6×720.9×27 | 1459.2×830×16 |
Optional of 10.1 inch Ultra Thin Wall Mount Display
Available in Two Colors
Matte Black, High Gloss White (Others Can be Customized)
