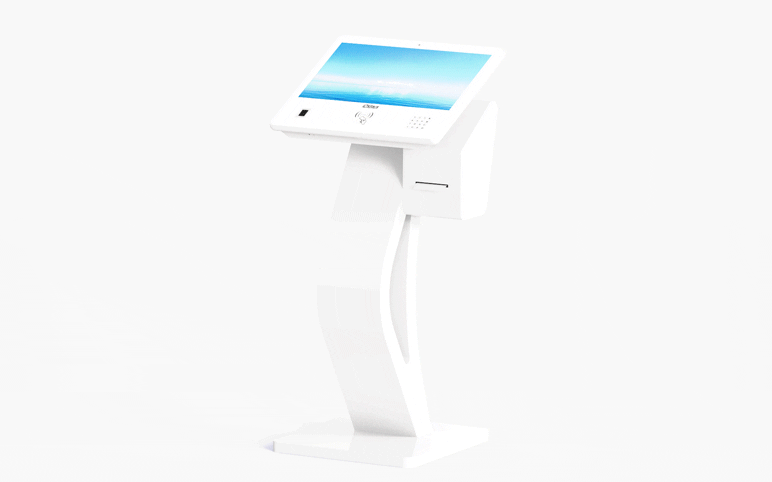

· RCS-220JK

21.5″ Touch Screen Kiosk with Printer

Unique “K” shaped design stand, ultra-thin case surrounded by silver aluminum
frame, made of strong and durable metal material, surface sprayed with RC-1162
white using advanced modern technology, elegant and exquisite;
capacitive interactive screen, equipped with thermal printer, fingerprint reader,
RFID card reader, numeric keyboard and camera can provide customers with various
services such as self-ordering, self-checkout, self-enquiry and business processing.

Optional Panel Size: 21.5 inch, 23.8 inch, 27 inch, 32 inch, 43 inch

Request a Quote
Explore features
Scroll
Details on Display

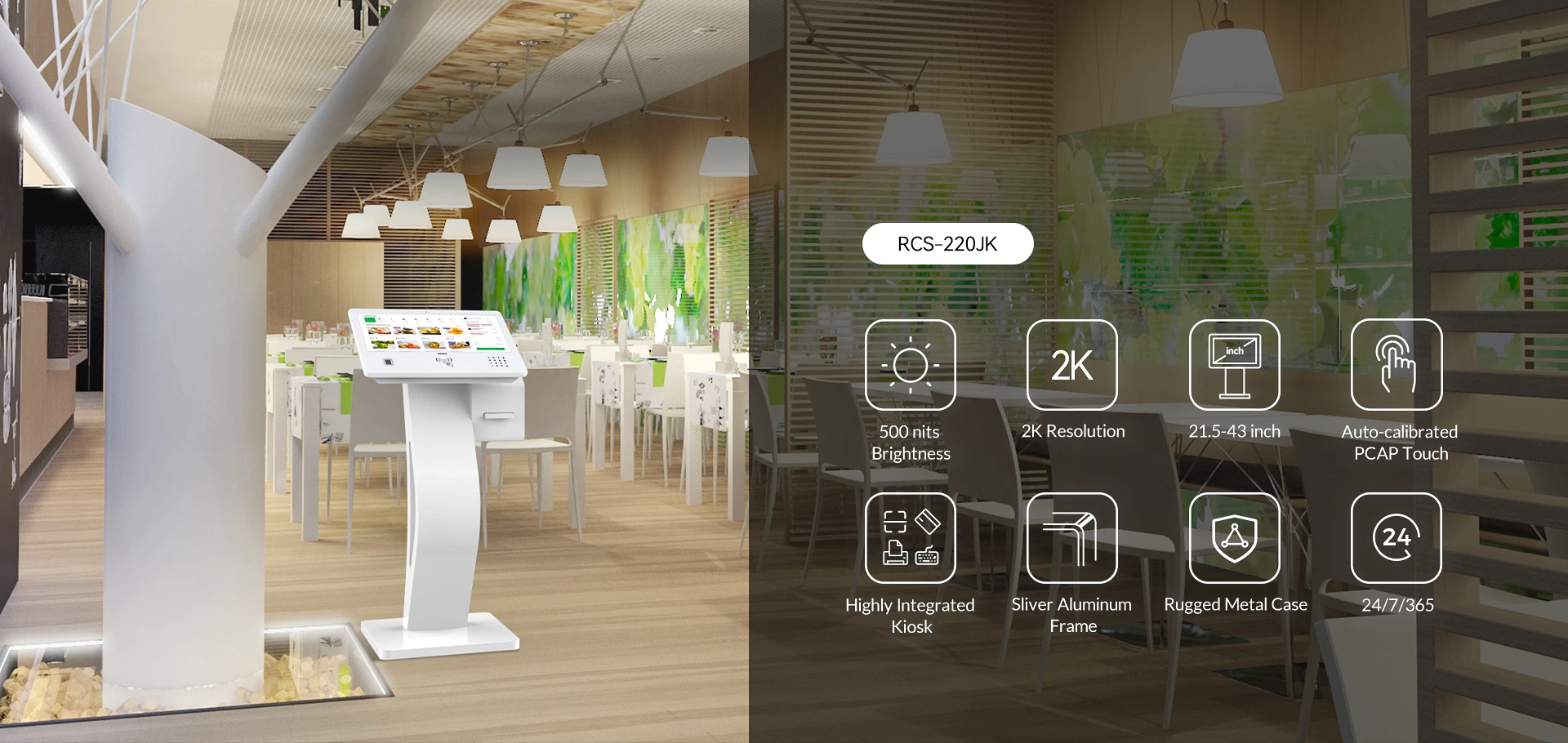

K Shape Design Interactive Kiosk

Distinctive K-shaped structure enhances visual appeal and user interaction in various commercial spaces.


Silver Aluminum Frame

Durable aluminum frame with a sleek silver finish for a modern and premium look.


Highly Integrated Kiosk

All-in-one integrated design simplifies deployment, maintenance, and operation.

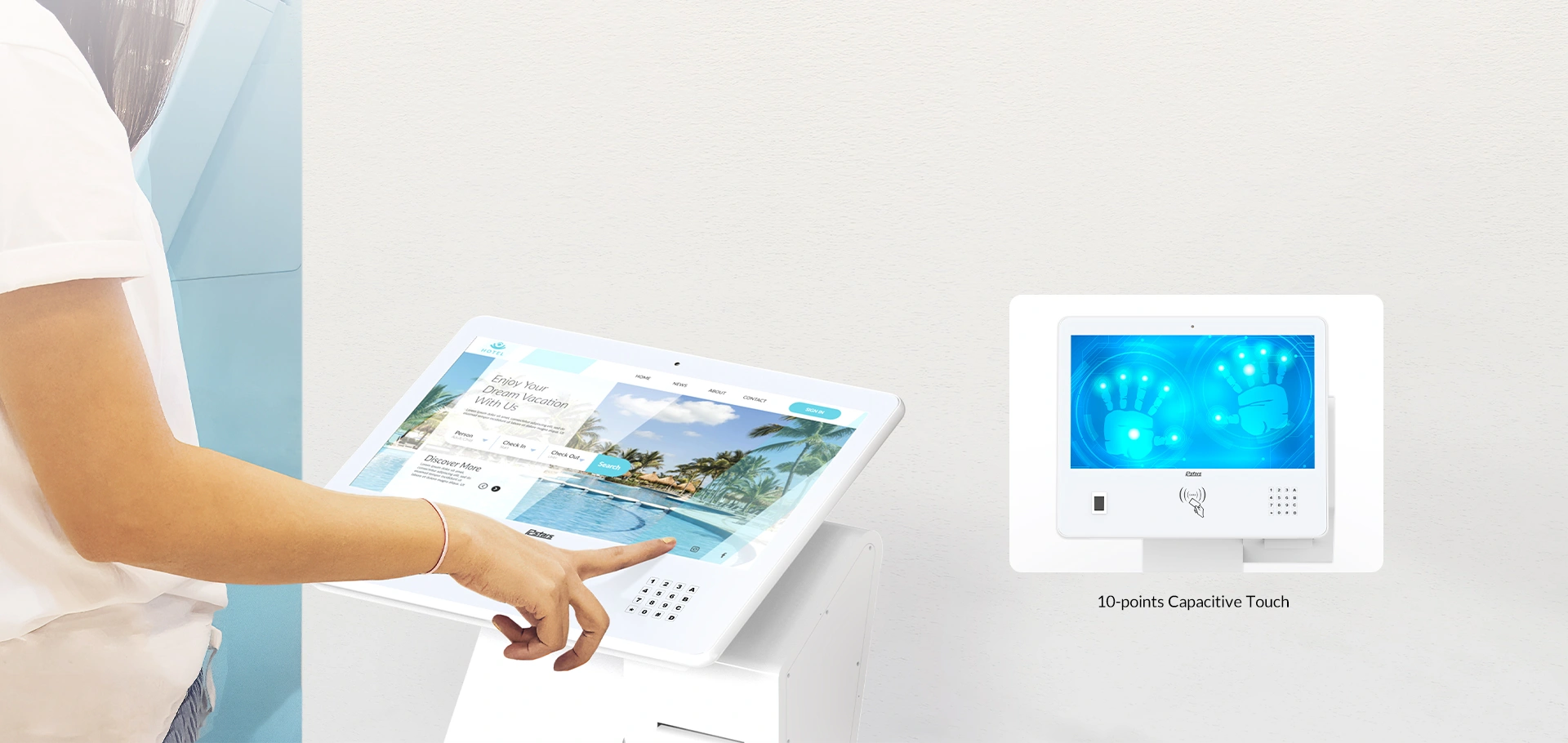

Auto-calibrated PCAP Touch

Precise and responsive touch performance with automatic calibration for seamless interaction.

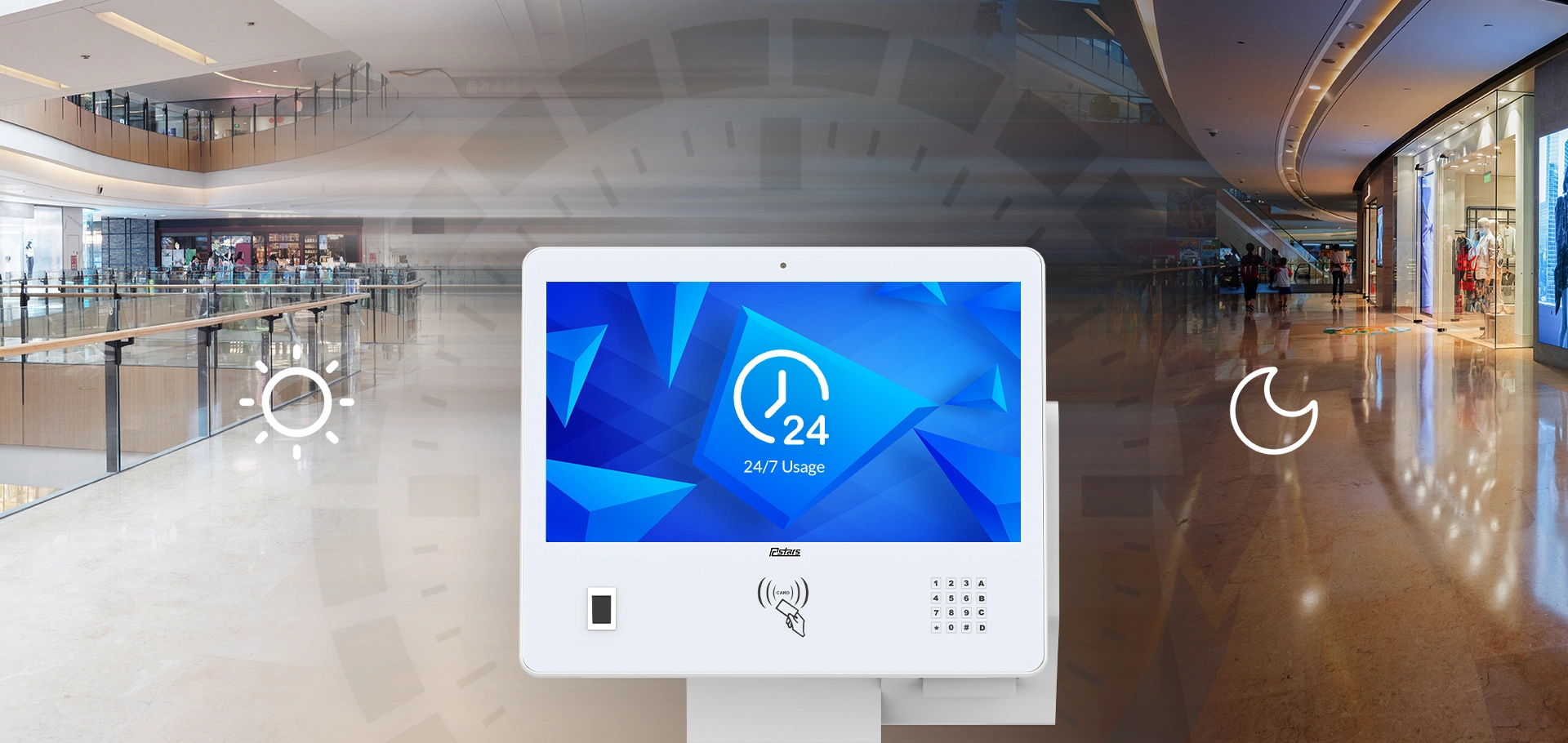

24/7 Usage

Engineered for continuous operation with stable and reliable performance.


White Metal Case

Robust metal housing in a clean white design, suitable for various environments.

Durability · Lifespan · Stability

Commercial Grade
Reliable 24/7 Performance

Built with commercial-grade LCD panels and components, the display supports continuous 24/7 operation with enhanced durability and stability. Designed for demanding environments, it delivers consistent performance over extended periods.

50,000 hrs
Extended lifespan

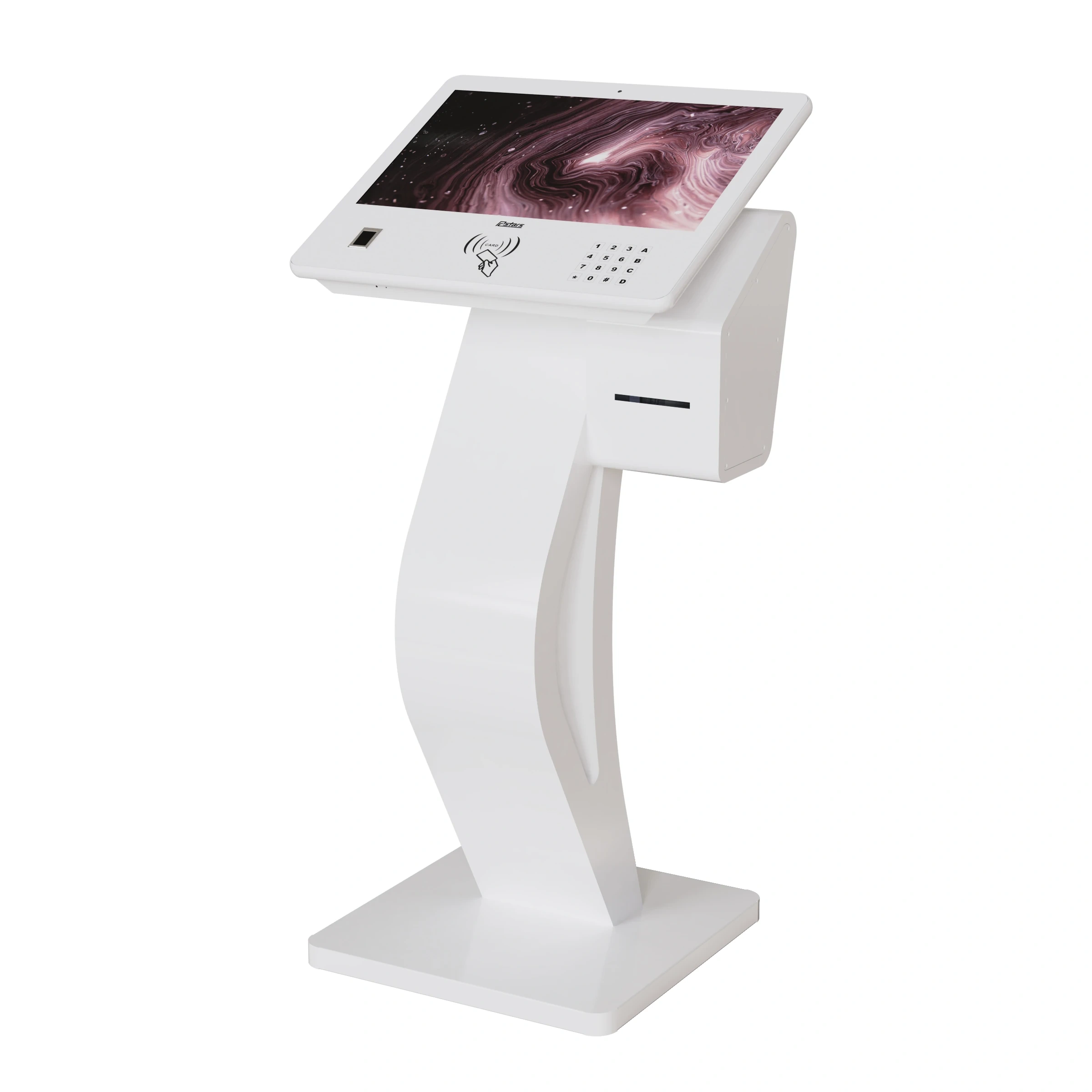

RCS-220JKAZ.1
Long Life
Design · Aesthetics · Integration

Sleek & Modern
K-Shape Visual Appeal

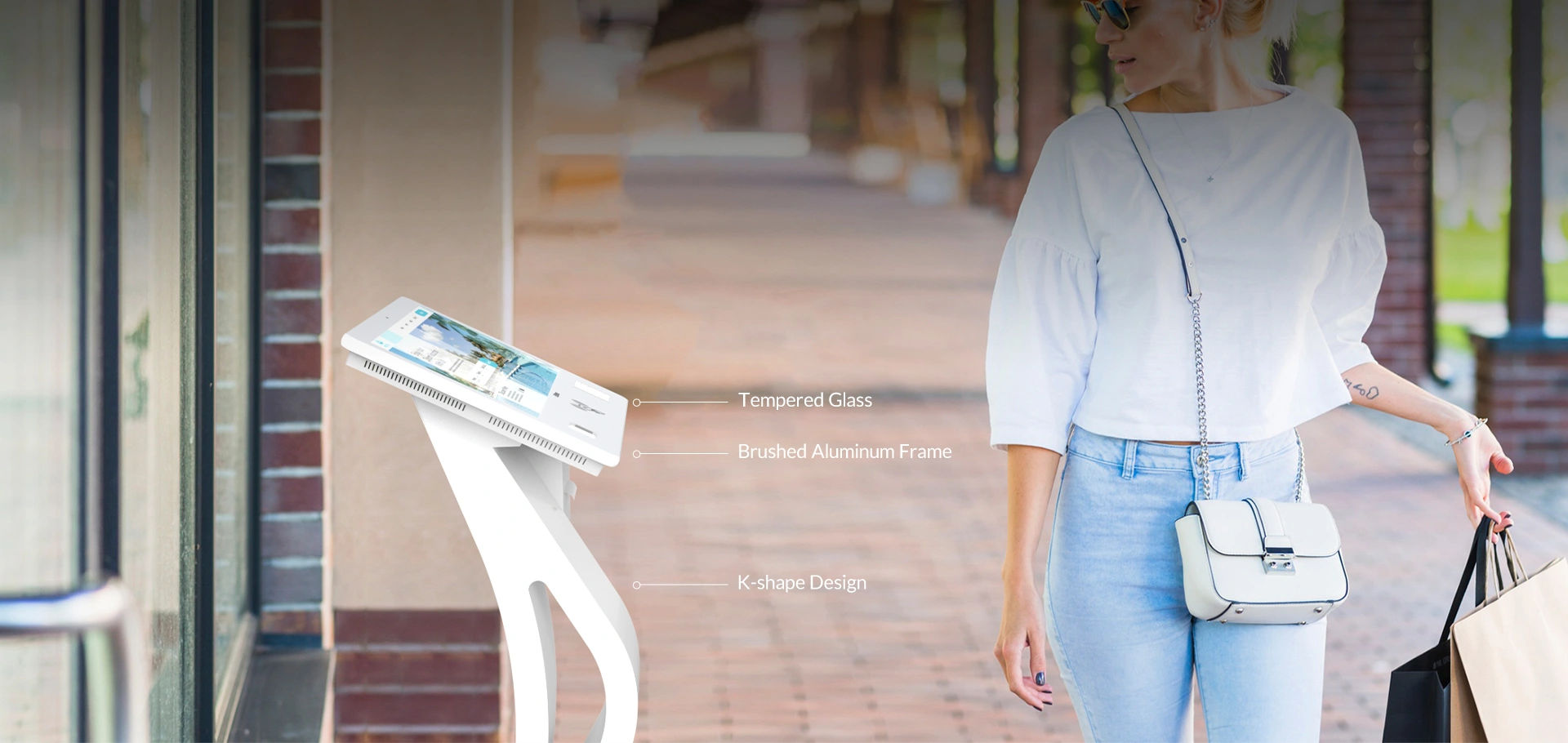

Featuring a distinctive K-shape design and brushed silver aluminum frame, the kiosk blends seamlessly into various environments while attracting attention to your content, enhancing overall brand visibility.

K-Shape
Unique structural design

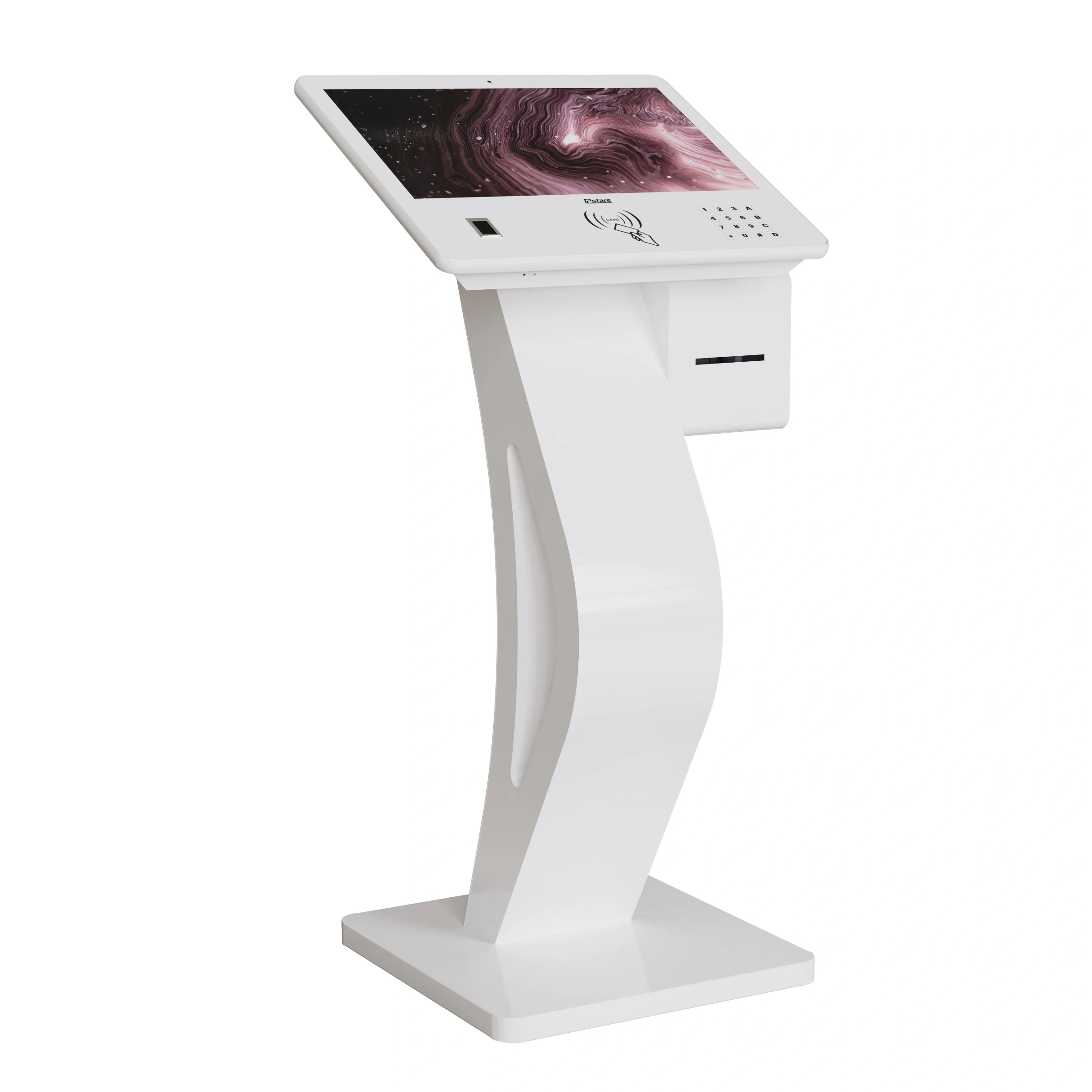

RCS-220JKAZ.6
Premium Look
21.5-inch-free-standing-digital-display-touch-screen-kiosk-with-printe-04

Multi-Function
Integration

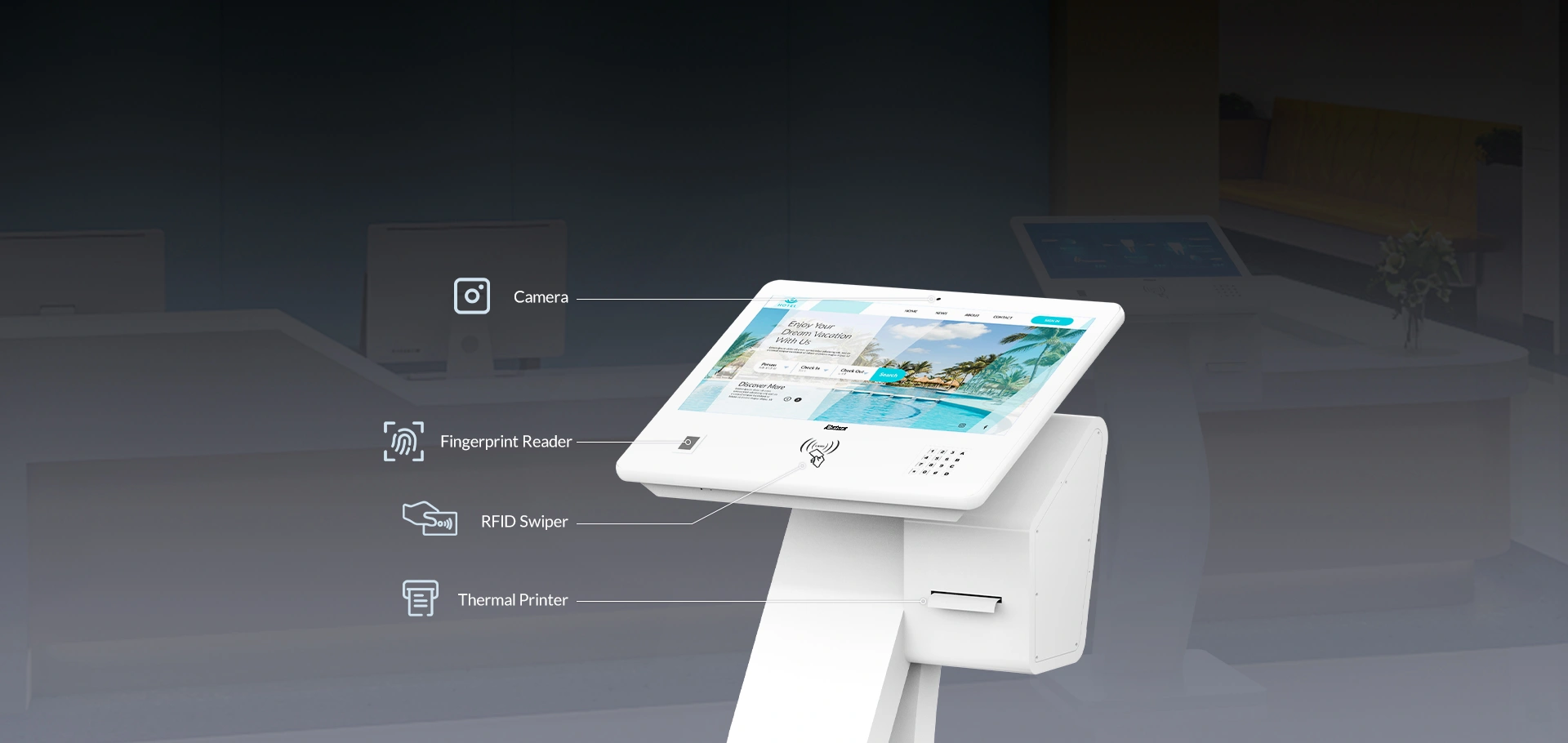

Equipped with thermal printers, numeric keypads, RFID swipers, fingerprint readers, and cameras. Compact structure supports multiple business functions in one device, improving space efficiency and reducing overall cost.
21.5-inch-free-standing-digital-display-touch-screen-kiosk-with-printe-05

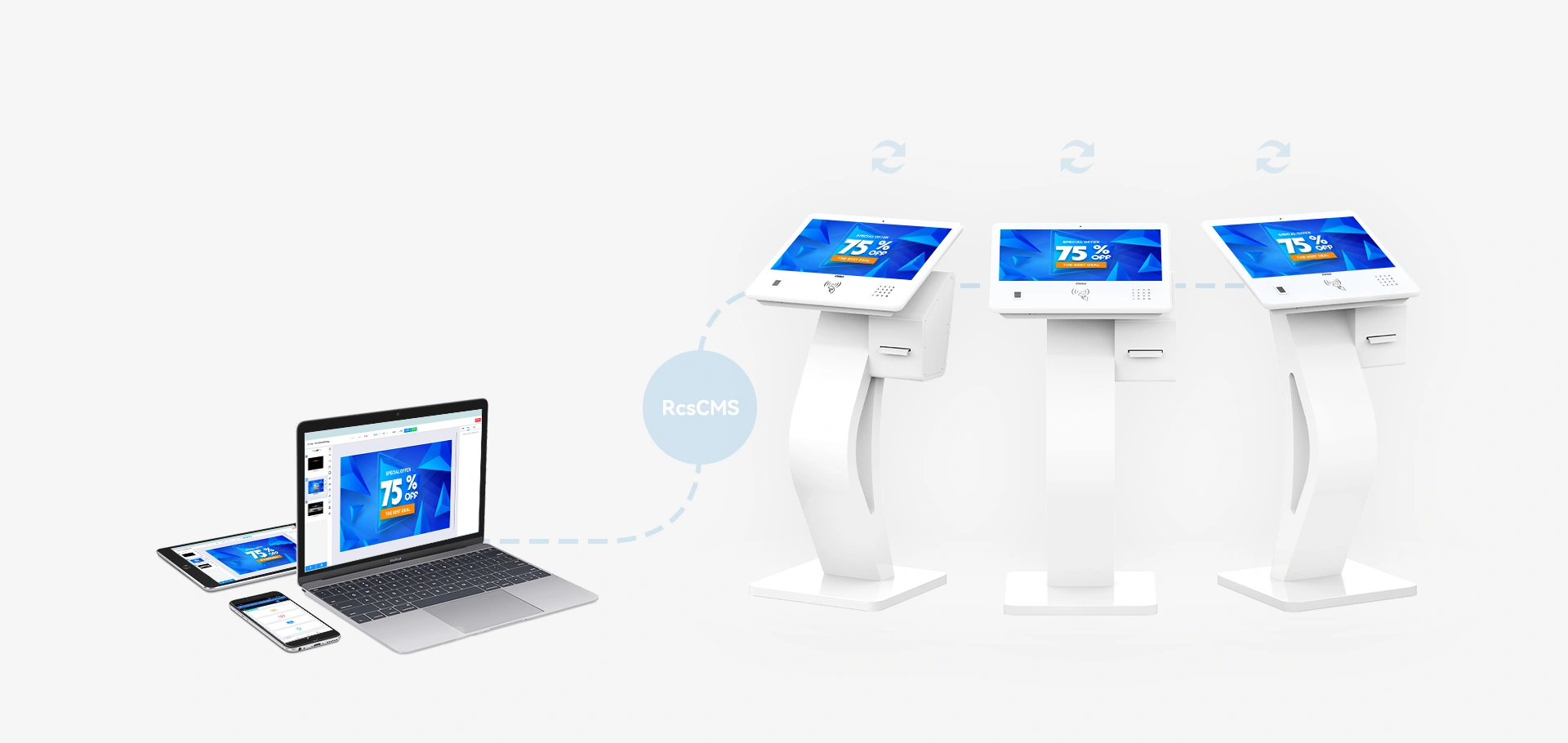

Content Updates Made Easy.

Smart
Management

Supports Windows/Android OS with optional CMS. Content can be updated directly via screen operation, Wi-Fi connection, or USB input. CMS remote synchronization enables efficient management of multiple kiosks."
System & Modules

Multiple Options,
One Platform.

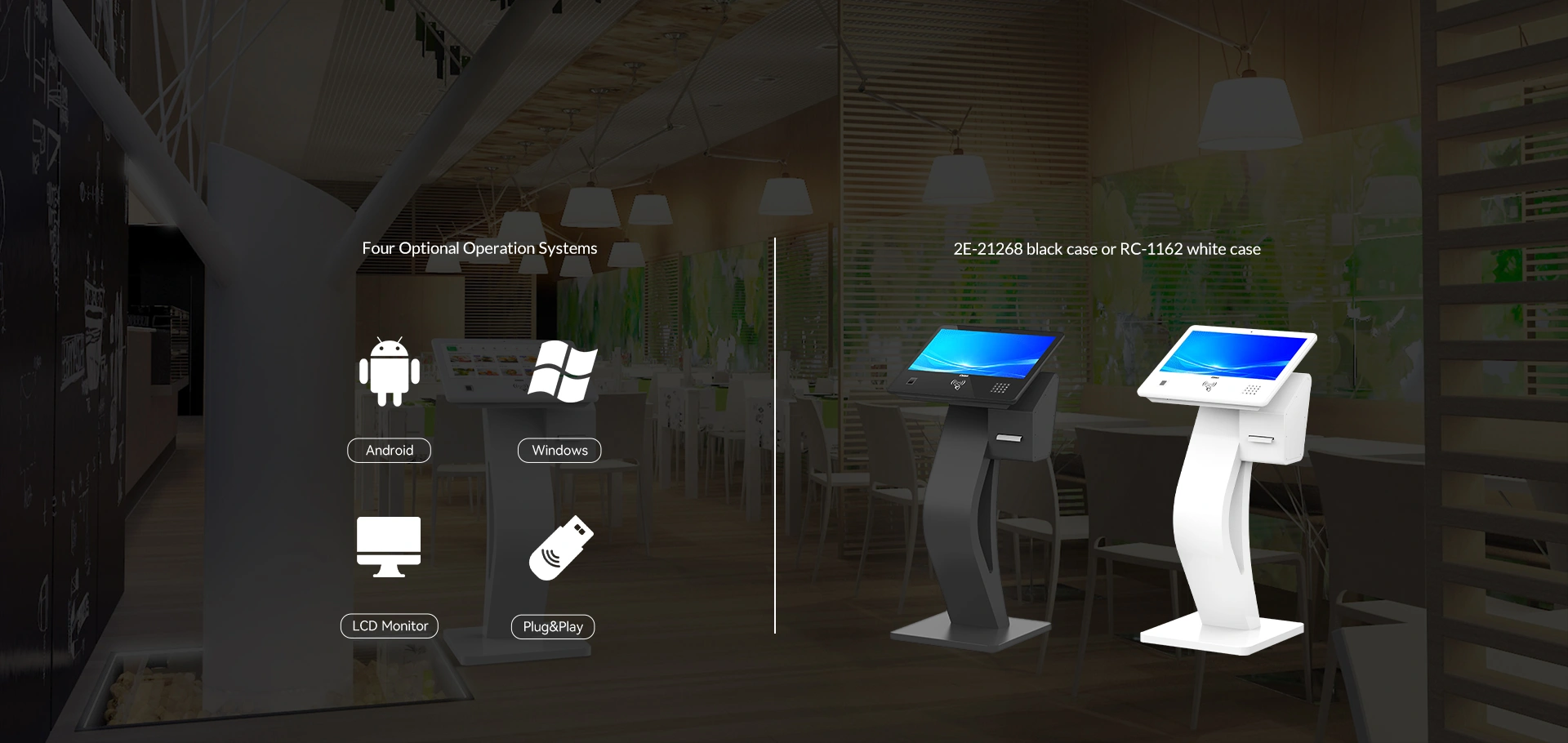

Flexible System and Color Options

Supports Android, Windows, LCD monitor compatibility, and plug-and-play functionality, enabling easy deployment and smooth operation across various application scenarios.
Black and white color options are available to suit different environments and branding styles.

21.5-inch-free-standing-digital-display-touch-screen-kiosk-with-printe-07
Technical Data

Full Specification

Model No RCS-220JK RCS-240JK RCS-270JK RCS-320JK RCS-430JK
Panel Model 21.5 inch TFT LED 23.8 inch TFT LED 27 inch TFT LED 32 inch TFT LED 43 inch TFT LED
Max Resolution 1920×1080 1920×1080 1920×1080 1920×1080 1920×1080
Aspect Ratio 16:09 16:9 16:09 16:09 16:09
Pixel Pitch 0.24795×0.24795 0.2745×0.2745 0.31125×0.31125 0.36375×0.36375 0.4903×0.4903
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Contrast Ratio 1000:1 1000:1 1000:1 1400:1 1200:1
Brightness (cd/m²) 500 500 500 500 500
Display Area (mm) 476.064×267.786 527.04×296.46 597.888×336.312 698.4×392.85 941.184×529.416
Panel Size (mm) 495.6×292.2×10.7 543×317.4×11.6 630×368.2×11.8 725.2×422.7×22.4 969×563.9×26
