· RCS-220-650CK

21.5 inch Digital Touch Screen Kiosk

The interactive self-service touch screen digital display kiosk provides an all-in-one
solution, integrating Windows PC and Android systems, making it an ideal choice for
digital wayfinding and advertising display in shopping malls and other places;
this digital board kiosk adopts a unique “K”-shaped design stand, simple and elegant,
stable installation; optional black/white metal casing, camera/4G/NFC optional,
screen and stand are detachable and can be used with other stands.

Optional Panel Size: 21.5 inch-65 inch

Scroll
Details on Display

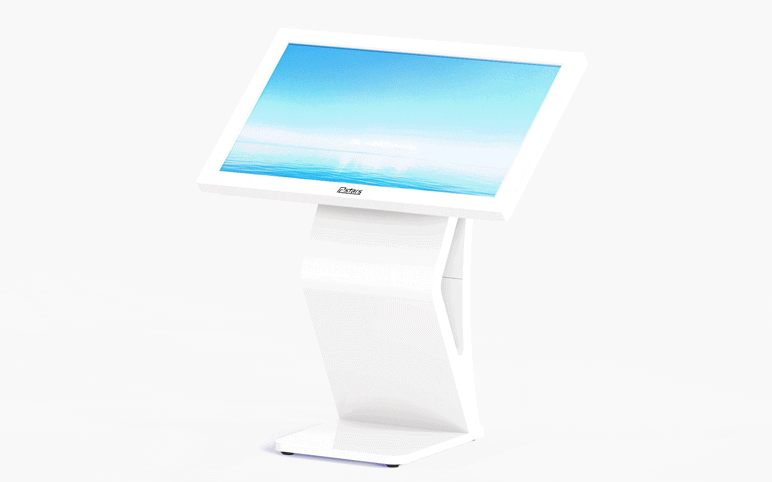

K Shape Design Interactive Kiosk

Modern K-shaped structure designed for interactive commercial display applications.

Full HD Portrait Screen

2K HD resolution delivers sharp and vivid visuals for advertising and interactive content.

Integrated Wi-Fi

Built-in wireless connectivity supports flexible network deployment and remote content management.



Integrated Speakers

Built-in speaker system provides clear audio playback without external equipment.

No External PC Required

 Integrated media solution enables standalone operation with simplified installation.



24/7 Usage

Commercial-grade design supports continuous long-term operation for demanding environments.

Form · Structure

Built for.
Commercial 24/7 Use.

Built with commercial-grade LCD panels and components, designed for continuous 24/7 operation with extended durability and stable performance in demanding environments.

50,000 hrs
24/7 continuous usage lifespan

free-standing-touch-screen-signage-interactive-kiosks-05
Long Life
Performance · Durability

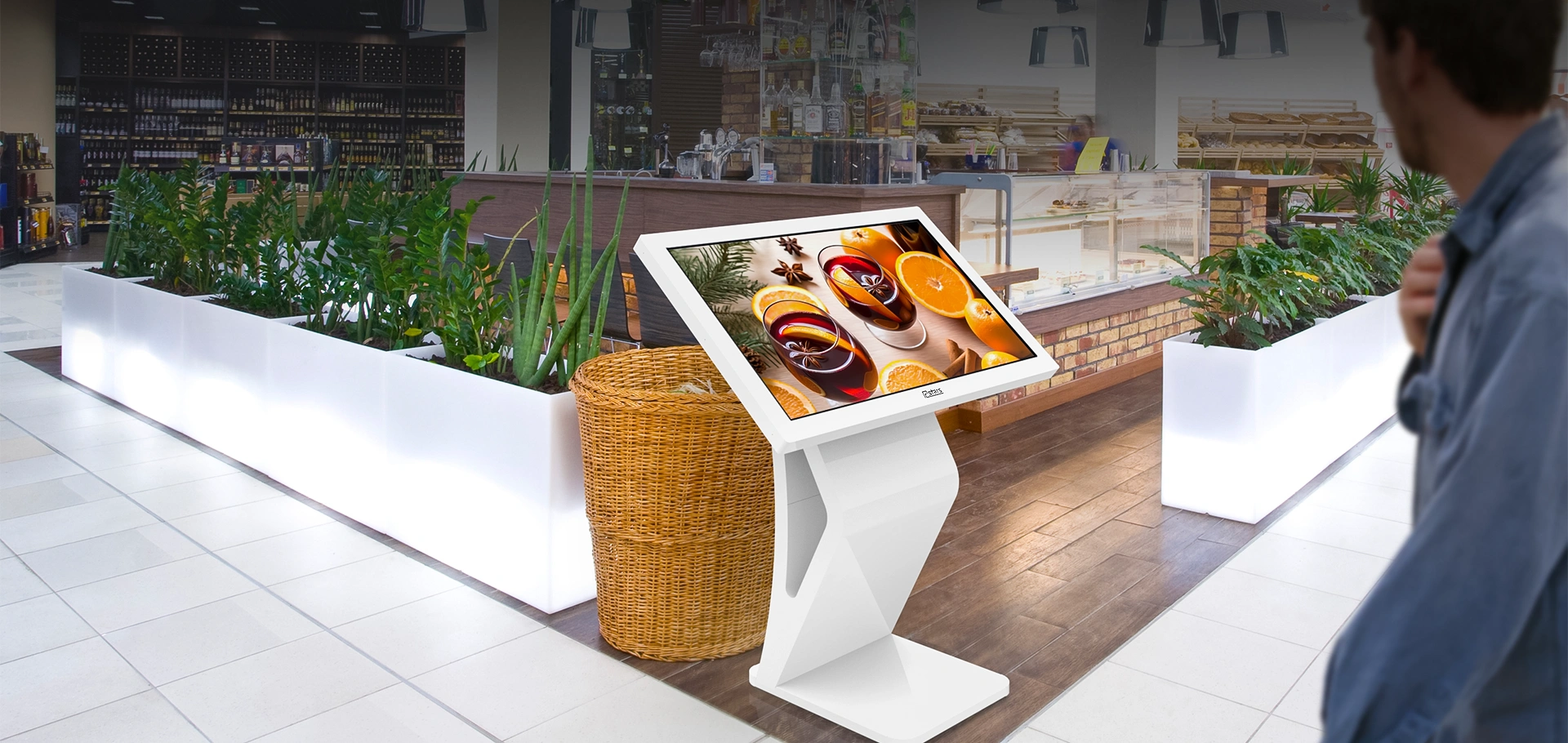

K Shaped.
Designed to Stand Out.

The K-shaped structure delivers a bold geometric appearance, enhancing visibility and engagement in modern commercial environments while maintaining stability and space efficiency.

K Shape
Modern structural design

free-standing-touch-screen-signage-interactive-kiosks-02
Commercial Grade LCD Panel
free-standing-touch-screen-signage-interactive-kiosks-03

Interactive
Self Service Touch
Screen

Large screens ranging from 21.5 inch to 65 inch are equipped with high-performance 10-finger multi-touch and have ample display and operation space. Customers can complete various self-services through just one screen, as easily as operating a smartphone.

free-standing-touch-screen-signage-interactive-kiosks-04

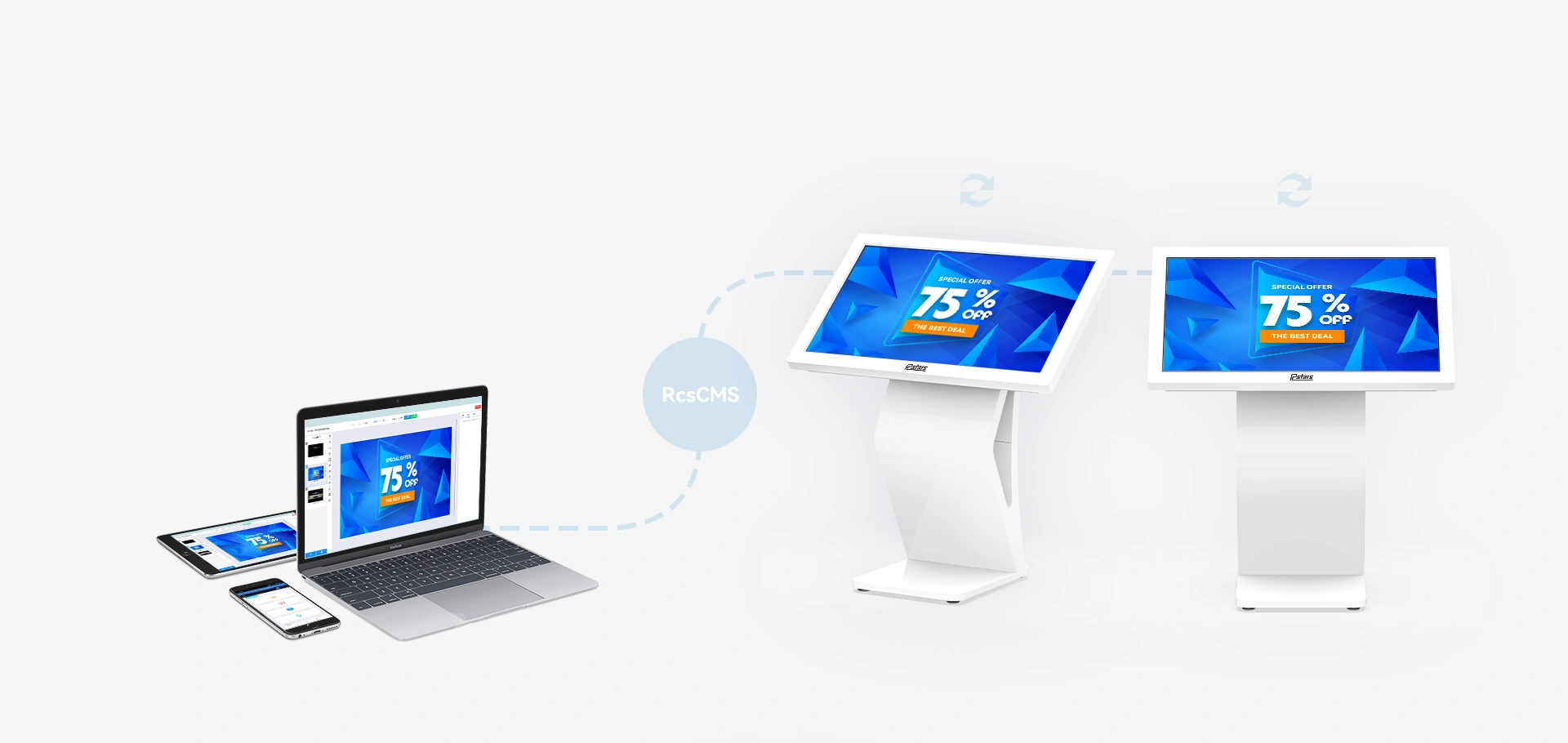

CMS Control

Effortless
Content Management

Equipped with Windows/Android OS and CMS (optional), and connected to the Internet through built-in Wi-Fi, you can operate the screen to directly update content or transmit it through external USB interfaces. If you have multiple kiosks, it is recommended that you use CMS Remote sync updates.

System & Modules

Multiple Options,
One Platform.

Highly Integrated Kiosk Solution

Printers, numeric keypads, RFID swipers, QR code scanners, and cameras can be added... Expand as much business as possible in a small space and maximize cost-effectiveness.

Digital Kiosks with Optional OS and Colors

Supports Android, Windows, LCD monitor, and plug-and-play solutions with optional black and white color finishes for flexible deployment across various commercial environments.

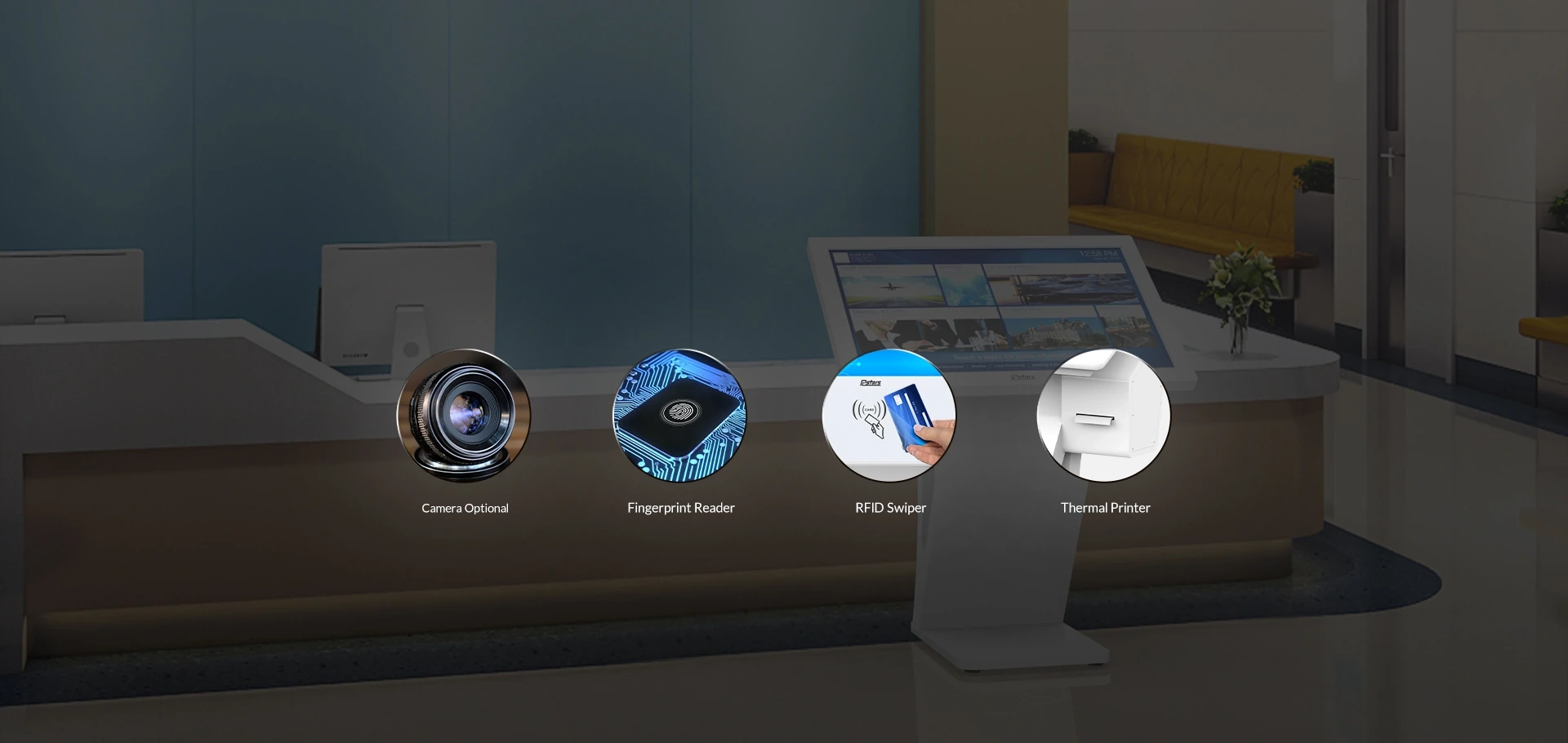

free-standing-touch-screen-signage-interactive-kiosks-06
Highly Integrated Kiosk Solution
free-standing-touch-screen-signage-interactive-kiosks-07
Digital Kiosks with Optional OS and Colors
Technical Data

Full Specification

Model No RCS-220CK RCS-320CK RCS-430CK RCS-550CK RCS-650CK
Panel Model 21.5 inch TFT LED 32 inch TFT LED 43 inch TFT LED 55 inch TFT LED 65 inch TFT LED
Max Resolution 1920×1080 1920×1080 1920×1080 1920×1080 3840×2160
Aspect Ratio 16:09 16:09 16:09 16:09 16:09
Pixel Pitch 0.24795×0.24795 0.36375×0.36375 0.4903×0.4903 0.63×0.63 0.372×0.372
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Contrast Ratio 1000:1 1400:1 1200:1 1400:1 1400:1
Brightness (cd/m²) 500 500 500 500 500
Display Area (mm) 476.064×267.786 698.4×392.85 941.184×529.416 1209.6×680.4 1428.48×803.52
Panel Size (mm) 495.6×292.2×10.7 725.2×422.7×22.4 969×563.9×26 1244.6×720.9×27 1459.2×830×16
